Kärcher HD 1090 - Starting the Unit

6
1. Starting
9
11
10
8
14
16
12
13
15
1
7
2
3
4
5
6
0
I

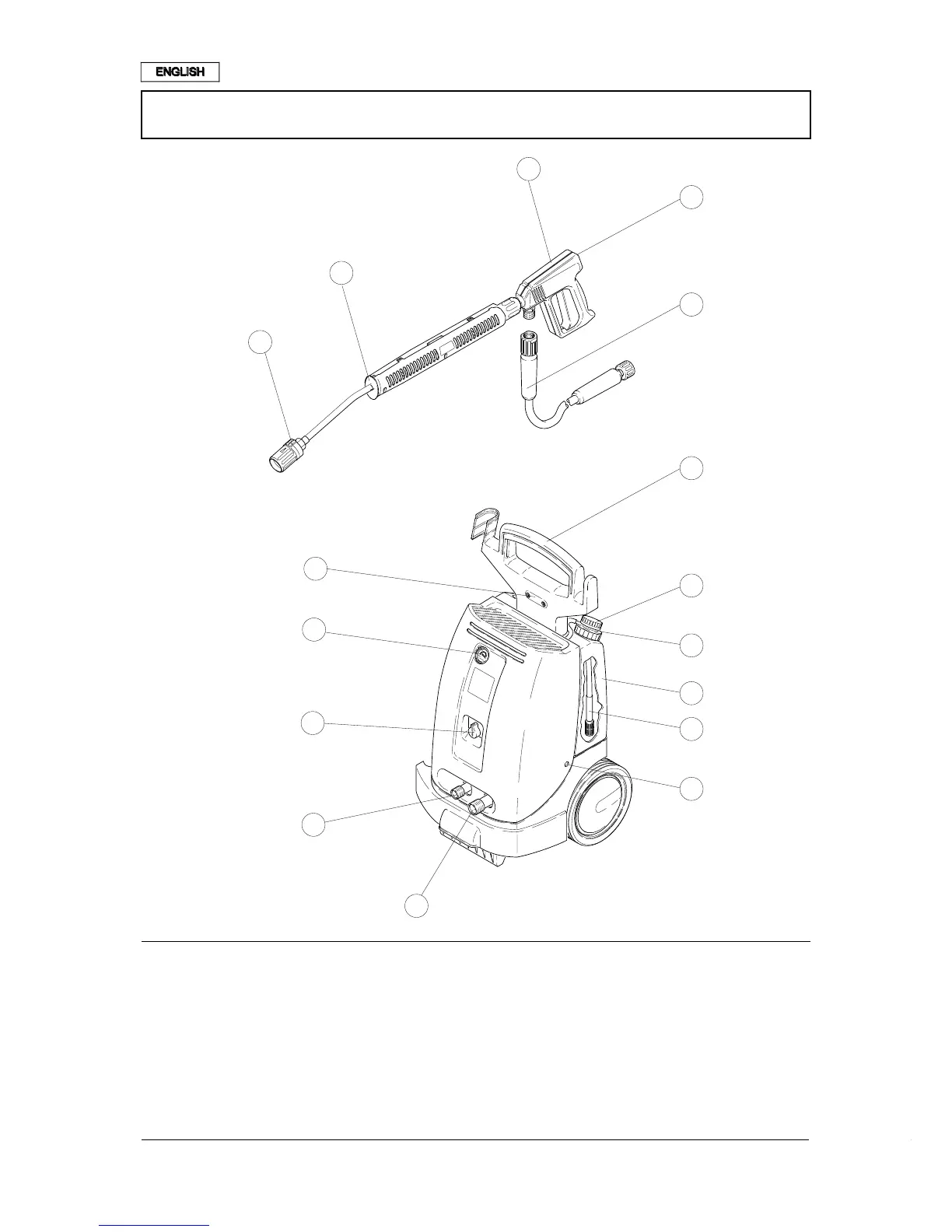

1 High-Pressure Nozzle
2 Spray Lance
3 Servopress Spray-Gun
4 Adjustment Wheel for Pressure and Flow
Regulation
5 High-Pressure Hose
6 Handle
7 Detergent Metering Valve
8 Screw Cap for Detergent Tank
9 Detergent Tank
10 Detergent Intake Hose with Filter
11 Fastening Screw for the Hood
12 Water Connection with Sieve
13 High-Pressure Connection
14 Unit Switch
15 Pressure Gauge
16 Fastening Screws for the Handle
