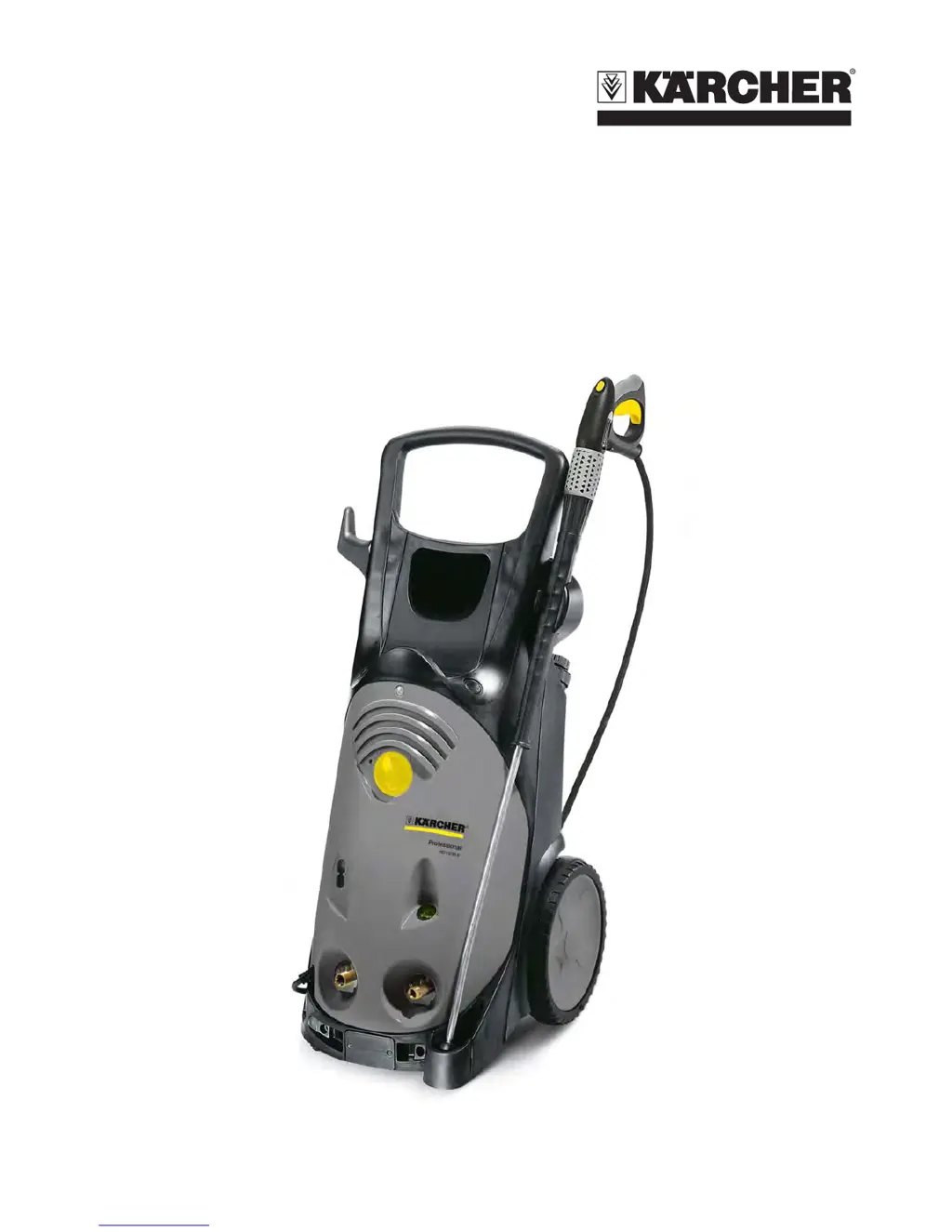

Kärcher HD 13/18 S - User Manual

Questions and Answers

D
Dana PetersenAug 7, 2025
What to do if my Kärcher Pressure Washer turns on and off when the hand spray gun is closed?
- M
  Matthew SimpsonAug 7, 2025
  If your Kärcher Pressure Washer cycles on and off with the hand spray gun closed, it could indicate a system tightness or pressure issue. Begin by checking the trigger gun and O-rings on the high-pressure hose for leaks, replacing them if necessary. Also, check, adjust, or replace the overflow valve, and inspect or replace the pressure retaining valve and pressure switch. Finally, check, clean, or replace the detergent check valve, and examine the pressure and suction valves for any leaks, replacing as needed.
K
Kimberly JohnsonAug 12, 2025
How to troubleshoot a Kärcher Pressure Washer that is not running?
- T
  Traci MeyerAug 12, 2025
  If your Kärcher Pressure Washer isn't running, several issues could be the cause. First, examine the connection cable for any signs of damage. Next, check the mains fuses and voltage. If the problem persists, there may be disturbances in the electrical system, so inspect the transformer, fuse, thermal motor protection switch, contactor, and PCB. Finally, check or replace the appliance switch and pressure switch.
W
weissjamesAug 16, 2025
Why is my Kärcher Pressure Washer not building up pressure?
- D
  David TranAug 16, 2025
  Several factors can prevent your Kärcher Pressure Washer from building pressure. Start by setting the nozzle to "High pressure" and cleaning or replacing it if soiled. If that doesn't work, vent the appliance to remove any air within the system. Ensure you have sufficient water supply, checking against the technical data. Also, clean the sieve in the water connection and inspect all inlet pipes to the pump for blockages. Lastly, check the pressure and suction valves for leaks and the overflow valve for proper adjustment or replacement.
C
Charles StephensonAug 22, 2025
Why is my Kärcher Pressure Washer not sucking in detergent?
- J
  Jeffrey GreenAug 22, 2025
  If your Kärcher Pressure Washer isn't sucking in detergent, the issue likely lies within the detergent flow. First, check and clean the detergent suction hose and filter. Then, open or check and clean the detergent dosing valve. Also, inspect, clean, or replace the detergent check valve, and check or replace the nozzle for detergent. As a last resort, replace the detergent injector.
G
Gary AlvaradoAug 27, 2025
What causes a Kärcher Pressure Washer to not switch off when the hand-spray gun is closed?
- M
  Matthew BakerAug 27, 2025
  If your Kärcher Pressure Washer doesn't switch off when the hand-spray gun is closed, it usually points to a pressure issue. You should check, adjust, or replace the overflow valve. Additionally, check or replace the pressure retaining valve and the pressure switch.
D
darius42Sep 1, 2025
How to fix a leaky pump on a Kärcher Pressure Washer?
- M
  Mrs. Kayla HernandezSep 1, 2025
  If your Kärcher Pressure Washer pump is leaking, determine the source of the leak. If water is leaking between the cylinder head and piston casing, check and replace the high and low-pressure seals. If oil is leaking from the same area, replace the oil seals.

Summary

Preface

Safety instructions

Details crucial safety precautions, hazard levels, and warnings for operating and servicing.

Hazard levels

Defines hazard levels (DANGER, WARNING, CAUTION, ATTENTION, Note) for immediate and potential risks.

Technical Features

Function

Motor;pump unit

Details the construction and parts of the integrated motor and pump assembly.

Pump diagram

Illustrates the internal fluid flow and component interactions within the pump.

Hand spraygun

Explains the structure, function, and maintenance notes for the hand spraygun.

Pressure and volume regulation

Electronics system

Explains the functions of the control and monitoring electronic system.

Pump monitoring

Details the pump monitoring function and its automatic switch-off feature.

Leakage monitoring

Describes the leakage monitoring system and its response to pressure drops.

Motor protection

Covers motor protection against phase failure, temperature, and voltage issues.

Setting the DIP switches

Basic settings and service procedures

Adjusting the overflow valve

Details the steps for adjusting the overflow valve to set working pressure.

Trigger gun with servopress pressure regulator

Trigger gun standard

Troubleshooting

Technical Documentation

Technical specifications

Lists detailed technical specifications for various models, including electrical, performance, and dimensions.

Circuit diagram

Torques

Kärcher HD 13/18 S Specifications

General

Max Pressure	180 bar
Power Rating	9.2 kW
Weight	62 kg
Dimensions (L x W x H)	560 x 500 x 1090 mm
Motor speed	1450 rpm
Max. inlet temperature	60 °C
Voltage	400 V
Hose Length	10 m
Pressure	130 bar
Water flow rate	600 l/h
