Kärcher RCV 5 User Manual

20 English
2. Remove the dust container, see
chapter Removing the dust contain-
er.

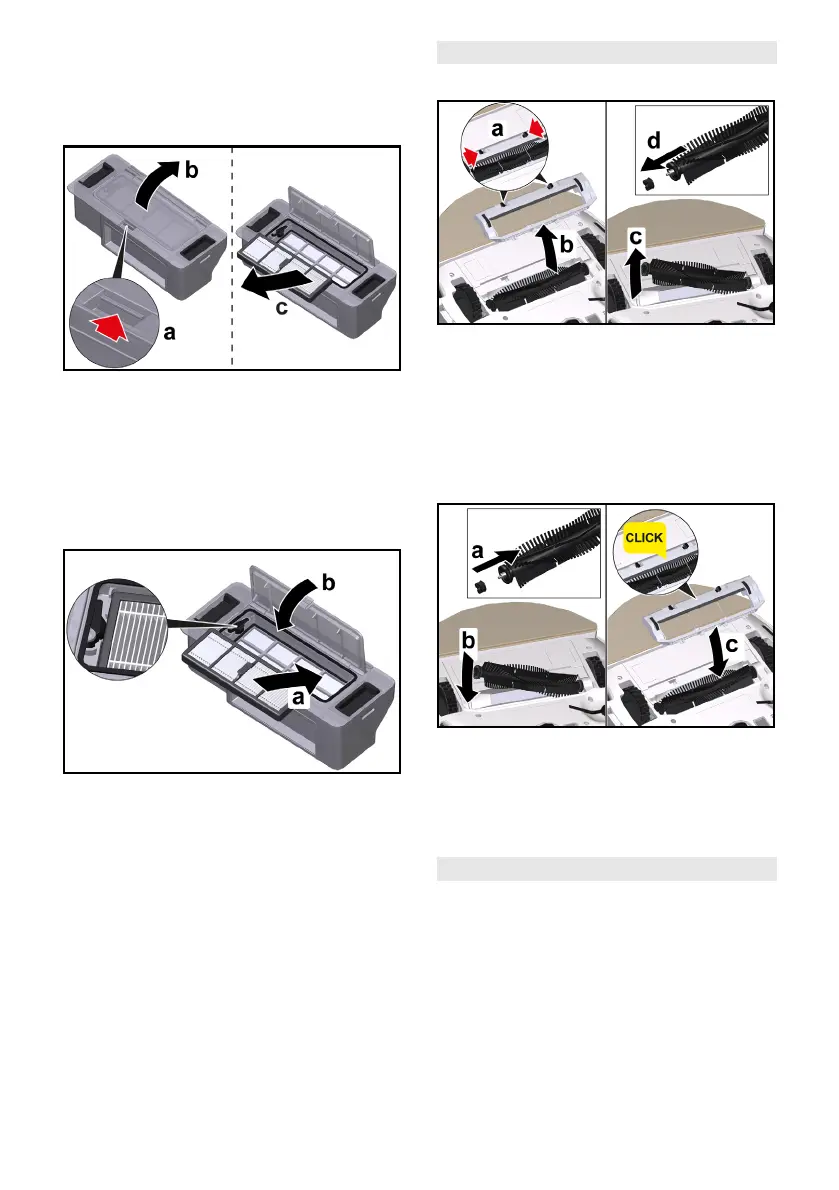

3. Remove the filter.
a Press the clamp.
b Open the cover.
c Remove the filter.
4. Clean the filter under running water
using the cleaning tool provided.
5. Allow the filter to dry completely.
6. Install the filter.
a Press the filter into position.
b Close the cover of the dust con-
tainer.
7. Install the dust container, see chap-
ter Installing the dust container.
8. Press the On / Off button.
The cleaning process continues.
Cleaning the brush
1. Remove the brush.
a Press the clamps together.
b Remove the brush cover.
c Remove the brush.
d Remove the brush bearing.
2. Clean the brush and brush bearings
with the supplied cleaning tool.
3. Install the brush.
a Fit the brush bearing.
b Insert the brush.
c Put on the brush cover and press
it down until it audibly clicks into
place.
Cleaning the side brush
Note
To avoid damage, do not place the ro-
bot on the laser sensor (LiDAR).
1. Turn the cleaning robot over.
2. Remove and clean the side brush
with a Phillips screwdriver.

Kärcher RCV 5 Specifications

General

Product type	Accessory kit
Brand compatibility	Kärcher
Suitable for vacuum cleaner type	Robot vacuum
Number of pads	1
Number of brushes	3
Number of filters	2 pc(s)
Quantity per pack	6 pc(s)
Package weight	400 g

Weight and Dimensions

Depth	190 mm
Width	125 mm
Height	82 mm
Weight	100 g
