Kärcher VC 3 Service Manual

10 English 9.764-892.0 Rev. 00 (07/17)
Note
Unless otherwise described, the installation takes place in
reverse order.
 ABHA Uninstalling / installing cover
 Separate the electric connectors.
 Remove On/Off switch.
 ABHA Uninstalling / installing cover

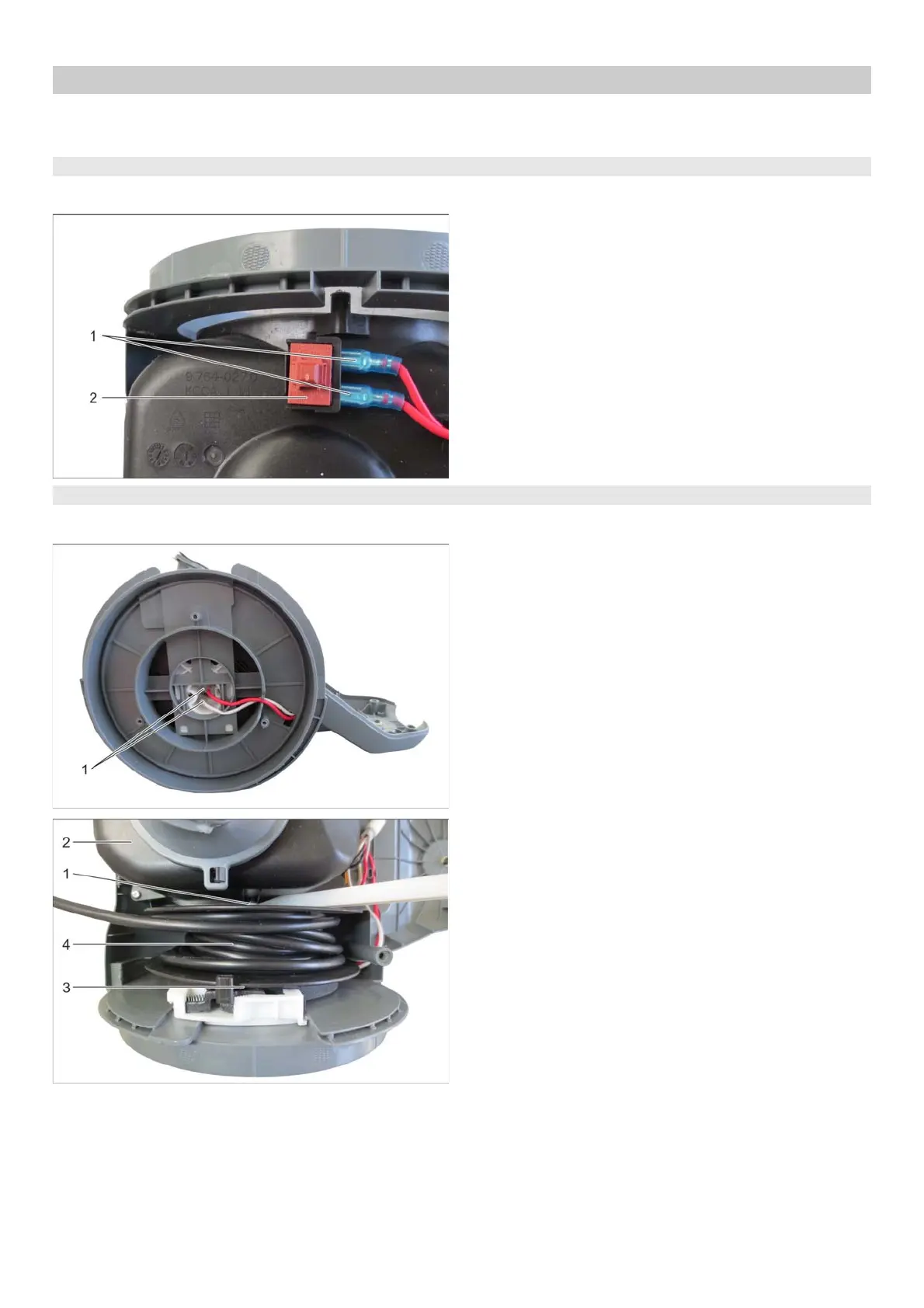

1 Electric socket plug connections
 Separate the electric connectors.
1 Cable coiling shaft
2 Cover
3 Cable coiling
4 Supply Cord
 Disconnect the cable coiling shaft from the housing.
 Remove the cable coiling device along with the power
cable.
Note
Pay attention to correct positioning!
040 Service activities
AHGD Remove/install ON/OFF switch
1 Electric socket plug connections
2 ON/OFF switch S1
AHNK Uninstall / install power cable

Kärcher VC 3 Specifications

General

AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Maximum input power	700 W
Annual energy consumption	24.8 kWh
HEPA class	HEPA 12
Proper use	Home
Noise level	76 dB
Cleaning surfaces	Carpet, Hard floor
Vacuum air filtering	HEPA
Dirt separating method	Multi cyclonic
Type	Cylinder vacuum
Hose length	1.5 m
Cleaning type	Dry
Dust capacity	0.9 L
Product color	Black, Yellow
Dust container type	Bagless
Cord length	- m
Automatic cord rewinder	Yes
Dust container full indicator	-
Number of nozzles	2
Vacuum brushes included	Cleaning brush

Weight and Dimensions

Depth	388 mm
Width	269 mm
Height	334 mm
Weight	- g
Weight (without accessories)	4400 g
