6.5 Pneumatic System Connection
When routing the pneumatic line, make sure that the
line is clear of any moving part. Failure to do so may
result in safety lock failure which may result in damage
The pneumatic supply at site (to which the pneumatic system of the lift is connected) must be
equipped with a servicing unit composed of water
separator, lubricator and pressure reducer. These devices can be supplied by the manufacturer on
For the connection of the pneumatic lines proceed as follow:
•
Connect the pneumatic lines pre-assembled on the lift to the solenoid air
valve in the control unit according to the pneumatic plan
• Connect the pneumatic system of the lift to the pneumatic supply at site;
• Check the pneumatic control operations for proper performance.

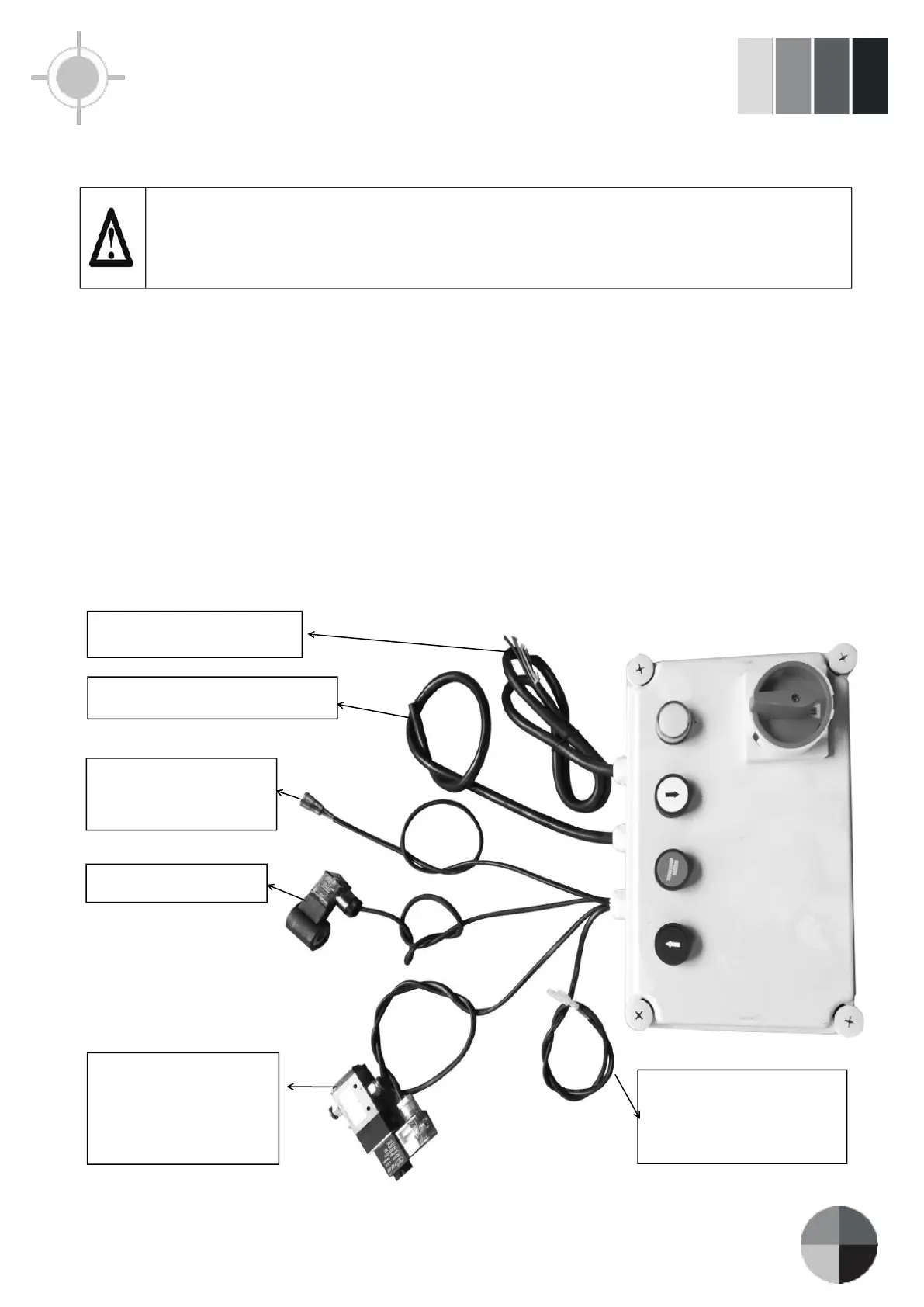

Lower Limit Switch
connection
Electromagnetic
valve
（Connect air
pump）
