Assemble the Front Wheel to the Fork
1. If the Axel Nuts (21) are already attached to the front wheel axel, begin
by removing them with an open end wrench or adjustable wrench.

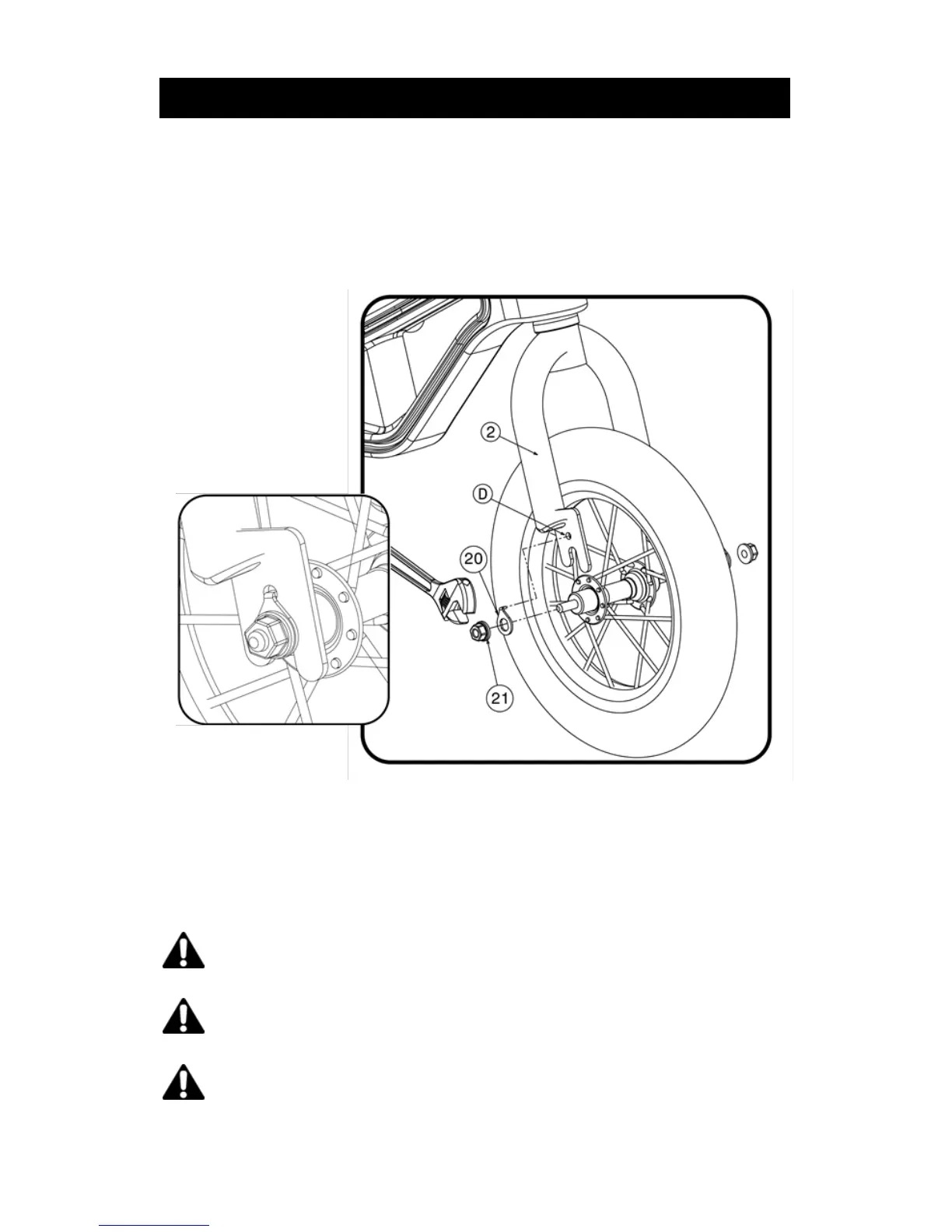

2. Place the wheel into the front fork (2) (fig 02)
3. Install wheel retainers (20) making sure the tabs are in the fork (D) tab
holes.
4. Tighten Axel Nuts to 13 ft‐lbs.
Fig 02
NOTE: Ensure wheel spins freely without making contact with the fork.
WARNING: Do not use Nuts (21) without serrations to attach the
front wheel
WARNING: Place the wheel in the center of the fork and tighten both
nuts to the recommended torque of 13 ft‐lbs.
WARNING: Failure to follow these steps can allow the wheel to
loosen while riding. This can cause injury to the rider or to others.
