KB Genesis KBAC-45 User Manual

17

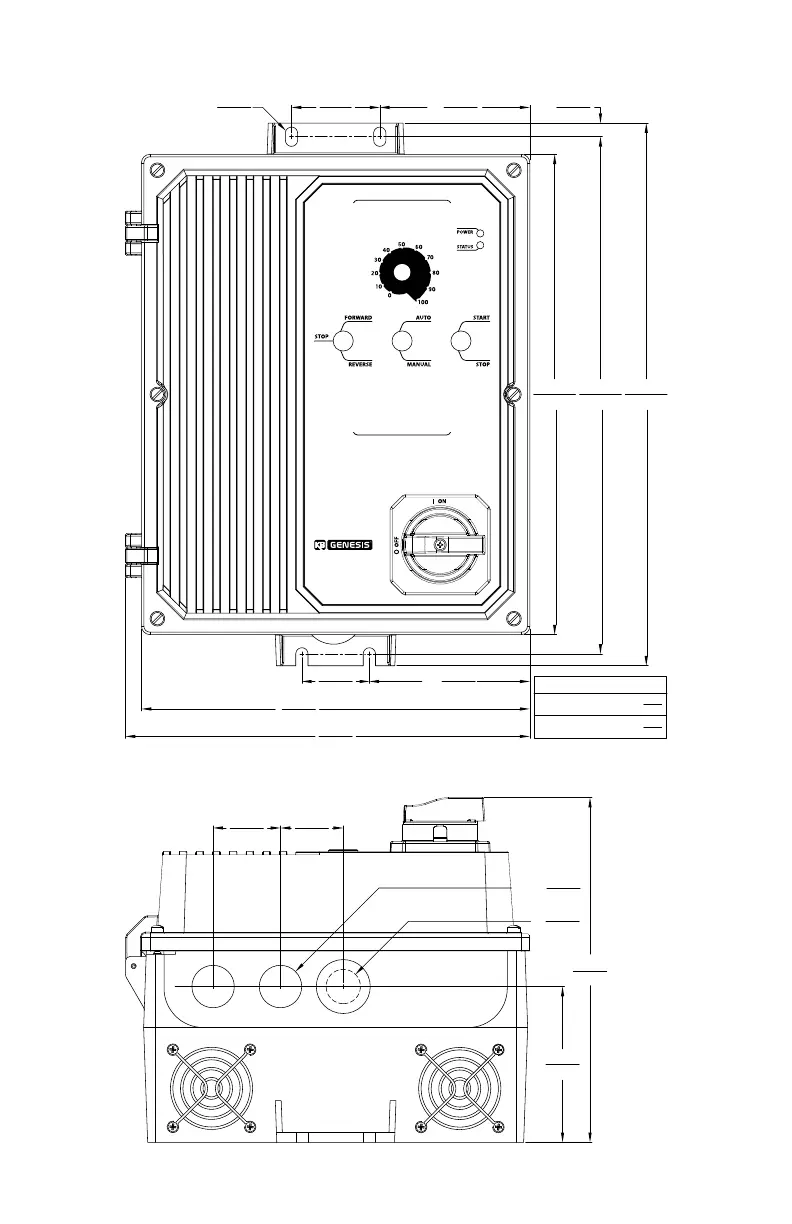

Figure 7 – KBAC-217, 416 Series Mechanical Specications (Inches/mm)
*Tighten these screws, in the sequence shown, to 12 in-lbs (14 kg-cm).
4X Ø
0.313
7.95
6*
2.25
57.2
3.822
97.1
2X
0.346
8.79
2X
3*
311
12.235
335
13.175
351
13.825
1*
5*
4.087
104
2X
9.89
251
10.3
262
1.72
43.7
2*
4*
MAXIMUM DRIVE DEPTH
Models without "S" Sux:
8.5
216
Models with "S" Sux:
9.0
227
1.72
43.7
1.60
40.6
1.08
27.4
2X Ø
0.875
22.2
Ø
9.0
227
3.97
100
KBAC SERIES • NEMA 4X / IP65
AC MOTOR SPEED CONTROL
Hybrid Drive
™

KB Genesis KBAC-45 Specifications

General

Brand	KB Genesis
Model	KBAC-45
Category	DC Drives
Language	English
