KB REVO E3 - Charging Your E-Scooter or Battery Unit

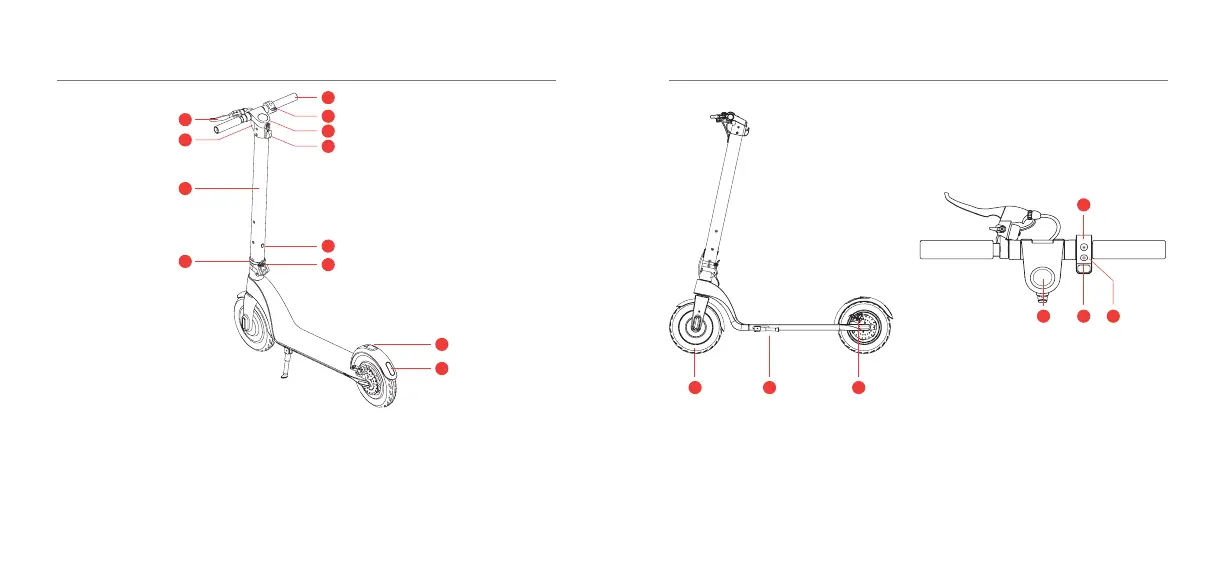

PRODUCT DIAGRAM
11 - ENG
1. Disc & Electronic Brake
2. Headlight
3. Steering Column
/BatteryUnit
4. Buckle Lock
5. Handle
6. Accelerator
7. Dashboard
/BatteryCover
8. Locking Clip
9. Charging Port
10. Folding Wrench
11. Locking Latch
12. Rear Tail Light
1
5
6
7
8
9
10
11
12
3
4
2
PRODUCT DIAGRAM
12 - ENG
13. Motor
14. Kickstand
15. Rear Disc Brake
16. LED Display
17. SpeedMode/Light
18. Power Button
19. Acceleration Throttle
13 14 15
17
18 1916
