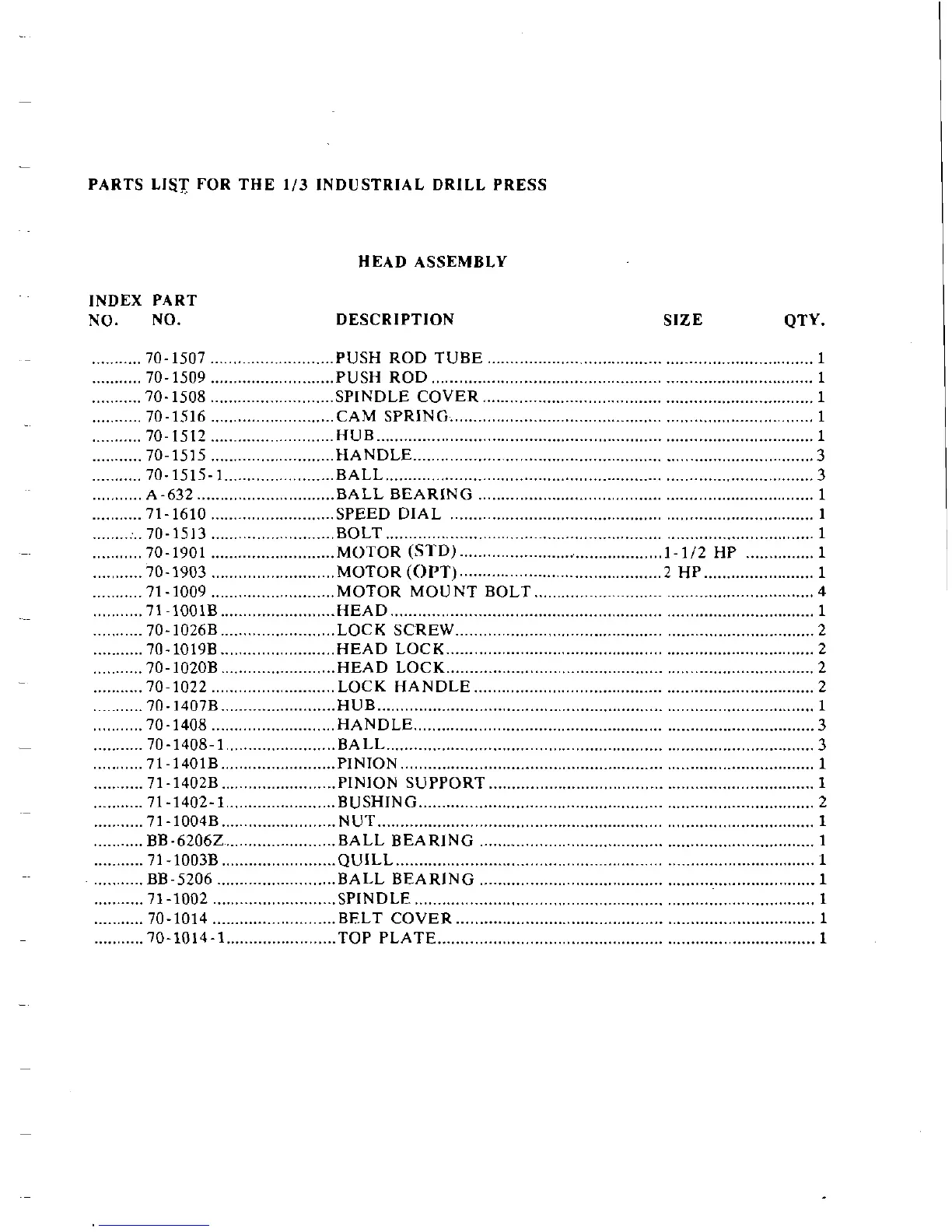

PARTS LIST FOR THE 113 INDUSTRIAL DRILL PRESS
HEAD ASSEMBLY
INDEX PART
NO
. NO .
DESCRIPTION
SIZE QTY
.
........... 70- 1507 ........................... PUSH ROD TUBE ...................................................................... 1
........... 70-1509 ........................... PUSH ROD ............................................................................... 1
..........................
........... 70-1508 SPINDLE COVER ............................. .. ..................................... 1
........... 70-1516 ........................... CAM SPRING .................................................................. ............ 1
...........................
........... 70-1512 HUB .............................................................................................. 1
........... 70-1515 ........................... HANDLE ...................................................................................... 3
........... 70-1515-1 ........................ BALL ............................................................................................ 3
........... A-632 .............................. BALL BEARING .................................................................... 1
........... 71-1610 ........................... SPEED DIAL ............................................................................ 1
........... 70-1513 ........................... BOLT ............................................................................................ 1
...........................
........... 70-1901 MOTOR (STD) ............................................ 1.112 HP ............... 1
........... 70-1903 ........................... MOTOR (OPT) ............................................ 2 HP ........................ 1
........... 71 - 1009 ........................... MOTOR MOUNT BOLT ............................................................ 4
........... 71-1001B ......................... HEAD ........................................................................................... 1
........... 70-1026B ......................... LOCK SCREW ............................................................................. 2
.........................
........... 70-10198 HEAD LOCK ............................................................................... 2
........... 70-1020B ......................... HEAD LOCK ............................................................................... 2
........... 70.1022 ........................... LOCK HANDLE ......................................................................... 2
........... 70-1407B ......................... HUB .............................................................................................. 1
...........................
........... 70-1408 HANDLE ...................................................................................... 3
........................ ............................................................................................ ........... 70-1408-1 BALL 3
........... 71-1401B ......................... PINION ......................................................................................... 1
........... 71-1402B ......................... PINION SUPPORT ...................................................................... 1
........... 71-1402-1 ........................ BUSHING ..................................................................................... 2
........... 71-1004B ......................... NUT .............................................................................................. 1
........... BB-62062 ........................ BALL BEARING ........................................................................ 1
........... 71 -1003B ......................... QUILL .......................................................................................... 1
........... BB-5206 ....................... BALL BEARING .................................................................. 1
...........................
........... 71.1002 SPINDLE ...................................................................................... 1
........................... .............................................................................
........... 70-1014
BELT COVER
1
........... 70-1014-1 ........................ TOP PLATE ................................................................................. 1
