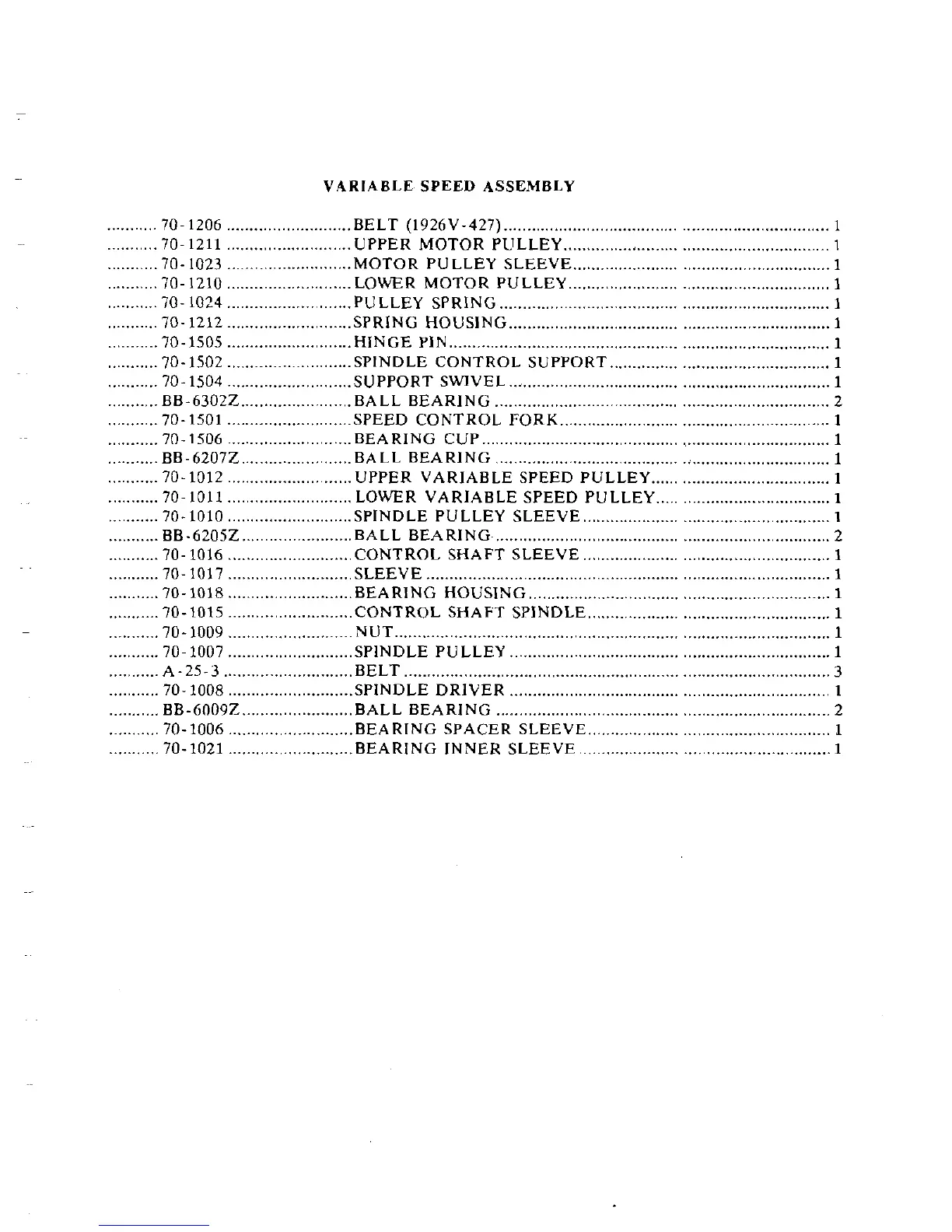

VARIABLE SPEED ASSEMBLY
........... 70- 1206 ........................... BELT (1926V-427) ...................................................................... 1
........... 701211 ........................... UPPER MOTOR PULLEY ............... .. ...................................... 1
........... 70- 1023 ........................... MOTOR PULLEY SLEEVE ....................................................... 1
........... 70- 1210 ........................... LOWER MOTOR PULLEY ........................................................ I
........... 70- 1024 .......................... PULLEY SPRING ....................................................................... 1
........... 70- 1212 ........................... SPRING HOUSING ..................................................................... 1
........... 70-1505 ........................... HINGE PIN .................................................................................. 1
........... 70- 1502 ........................... SPINDLE CONTROL SUPPORT ............................................... 1
........... 70- 1504 ........................... SUPPORT SWIVEL .................................................................. 1
........... 88-63022 ........................ BALL BEARING ........................................................................ 2
........... 70-1501 ........................... SPEED CONTROL FORK .......................................................... 1
........... 70-1506 ........................... BEARING CUP ......................................................................... 1
........... BE-62072 ........................ BALL BEARING ........................................................................ 1
........... 70-1012 .......................... UPPER VARIABLE SPEED PULLEY ...................................... 1
........... 70- 1011 ........................... LOWER VARIABLE SPEED PULLEY ..................................... 1
........... 70-1010 ........................... SPINDLE PULLEY SLEEVE ..................................................... 1
........... BE-62052 ........................ BALL BEARING ........................................................................ 2
....................................................
........... 70- 1016 ........................... CONTROL SHAFT SLEEVE
1
........... 70-1017 ........................... SLEEVE ............................. .. .................................................. 1
........... 70-1018 .......................... BEARING HOUSING ............................. .... ................................ 1
........... 70- 1015 ........................... CONTROL SHAFT SPINDLE ........................................... .. ..... 1
........... 70-1009 ........................... NUT .......................... .. ............................................................ 1
........... 70- 1007 ........................... SPINDLE PULLEY ..................................................................... 1
........... A-25-3 ............................ BELT ............................................................................................ 3
........... 70-1008 ........................... SPINDLE DRIVER ................................................................... 1
........... BB-60092 ........................ BALL BEARING ........................................................................ 2
........... 70-1006 ........................... BEARING SPACER SLEEVE .................................................... 1
........... 70-1021 ........................... BEARING INNER SLEEVE ...................................................... 1
