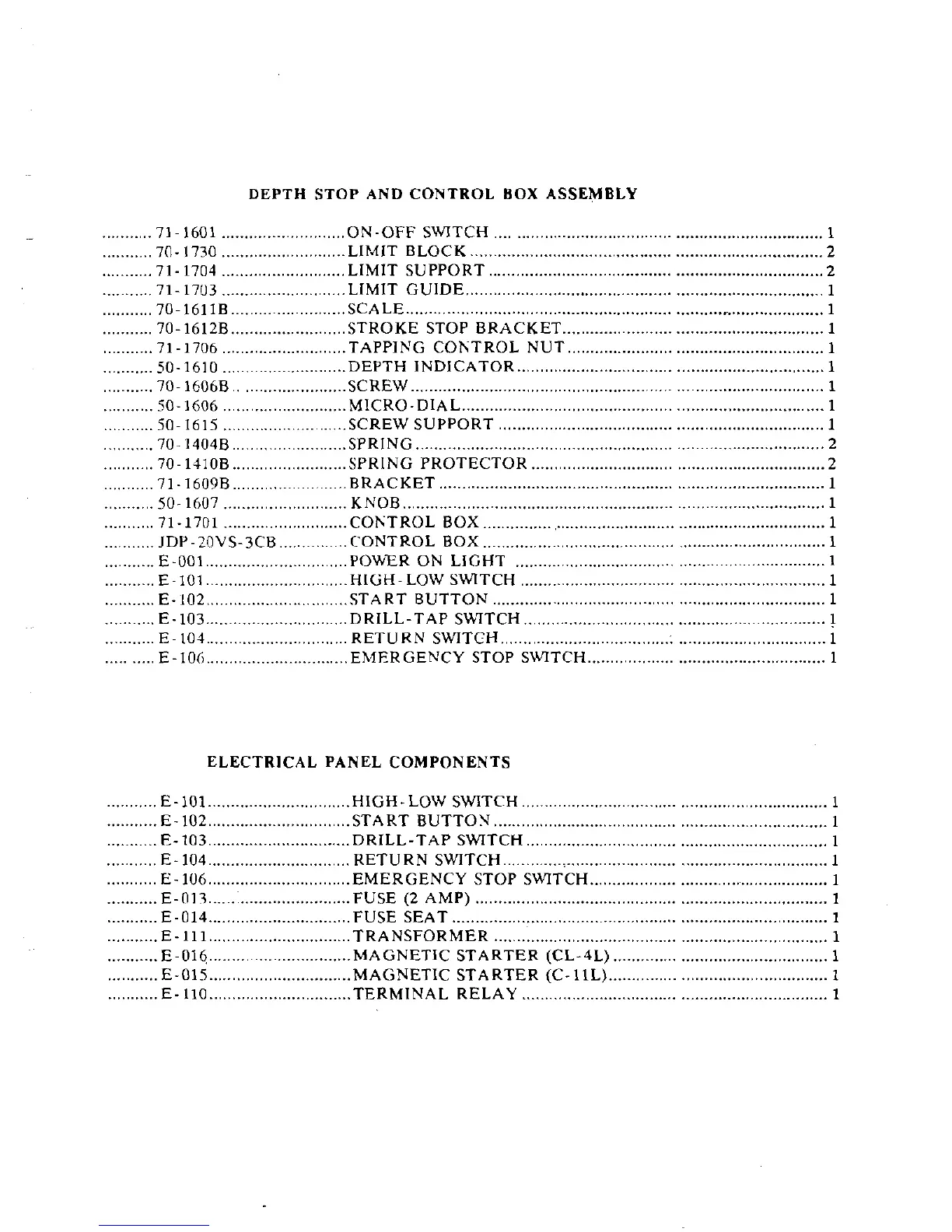

DEPTH STOP AND CONTROL BOX ASSEMBLY
........... 71 . 1601 ........................... ON-OFF SWITCH ........................... .. ...................................... 1
........... 70- 1730 ........................... LIMIT BLOCK ............................................................................ 2
........... 71- 1704 .......................... LlMlT SUPPORT ........................................................................ 2
........... 71- 17U3 ........................... LlMlT GUIDE ............................................................................ 1
........... 70-16118 ......................... SCALE .......................................................................................... 1
........... 70-l612B ......................... STROKE STOP BRACKET ........................................................ 1
...........................
........... 71-1706 TAPPING COhTROL NUT ....................................................... 1
...........................
........... 50-1610
DEPTH INDICATOR .................................................................. 1
........... 70- 1006B ........................ SCREW ......................................................................................... 1
........... 50- 1606 ........................... MICRO-DIAL .............................................................................. 1
..........................
........... 50 1615
SCREW SUPPORT
...................................................................... 1
........... 70- 1404B ......................... SPRING ........................................................................................ 2
.........................
........... 70- 11108 SPRING PROTECTOR ............................................................... 2
........... 71-1609B ......................... BRACKET ................................................................................... 1
........... 50- 1607 ........................... KNOB ........................ ... .......................................................... 1
........... 71-1701 ........................... COhTROL BOX .......................................................................... 1
........... JDP-2OVS-3CB ............... CONTROL BOX .......................................................................... 1
................................................................... ........... E-001 .............................. POWER ON LIGHT 1
........... E-101 ............................... HIGH-LOW SWITCH .................................................................. 1
...............................
........... E- 102
START BUTTON
........................................................................ I
........... E-103 ............................... DRILL-TAP SWITCH ................................................................. 1
........... E- 101 ............................... RETURN SWITCH ...................................................................... I
.......... E-106 ............................... EMERGENCY STOP SWITCH ................................................... 1
ELECTRICAL PANEL COMPONENTS
........... E-101 ............................... HIGH-LOW SWITCH .................................................................. 1
........... E- 102
START BUTTON
........................... .. ....................................... 1
........... E-103 ............................... DRILL-TAP SWITCH ................................................................. 1
........... E- 104 ............................... RETURN SWITCH ...................................................................... 1
........... E- 106 ............................... EMERGENCY STOP SWITCH .................................................... 1
........... E-013 ............................... FUSE (2 AMP) ............................................................................ 1
........... E-014 ............................... FUSE SEAT ................................................................................. 1
........... E- 111 ............................... TRANSFORMER ........................................................................ 1
........... E-016 ............................... MAGNETIC STARTER (CL-4L) .............................................. 1
........... E-015 ............................... MAGNETIC STARTER (C-11L) ............................................... 1
........... E- 110 ............................... TERMINAL RELAY .................................................................. 1
