kd frames KD Lounger Twin - Step 3: Attach Back Rails; Step 4: Double-Check Assembly; Step 5: Attach Back Legs; Step 6: Attach Seat Rails

Be sure that the Props
are on the inside of the
Back Rails.
4
Be sure that the Prop
Connector
is below the
Back Rails.
Please double-check your work at
this time. Any error in this
assembly will cause serious
problems later.
H-8
Be sure that the Prop
Connector goes below
the Back Rails.
3
K-31-B
H-5
H-8
K-10-BL
K-10-BR
H-12
H-12

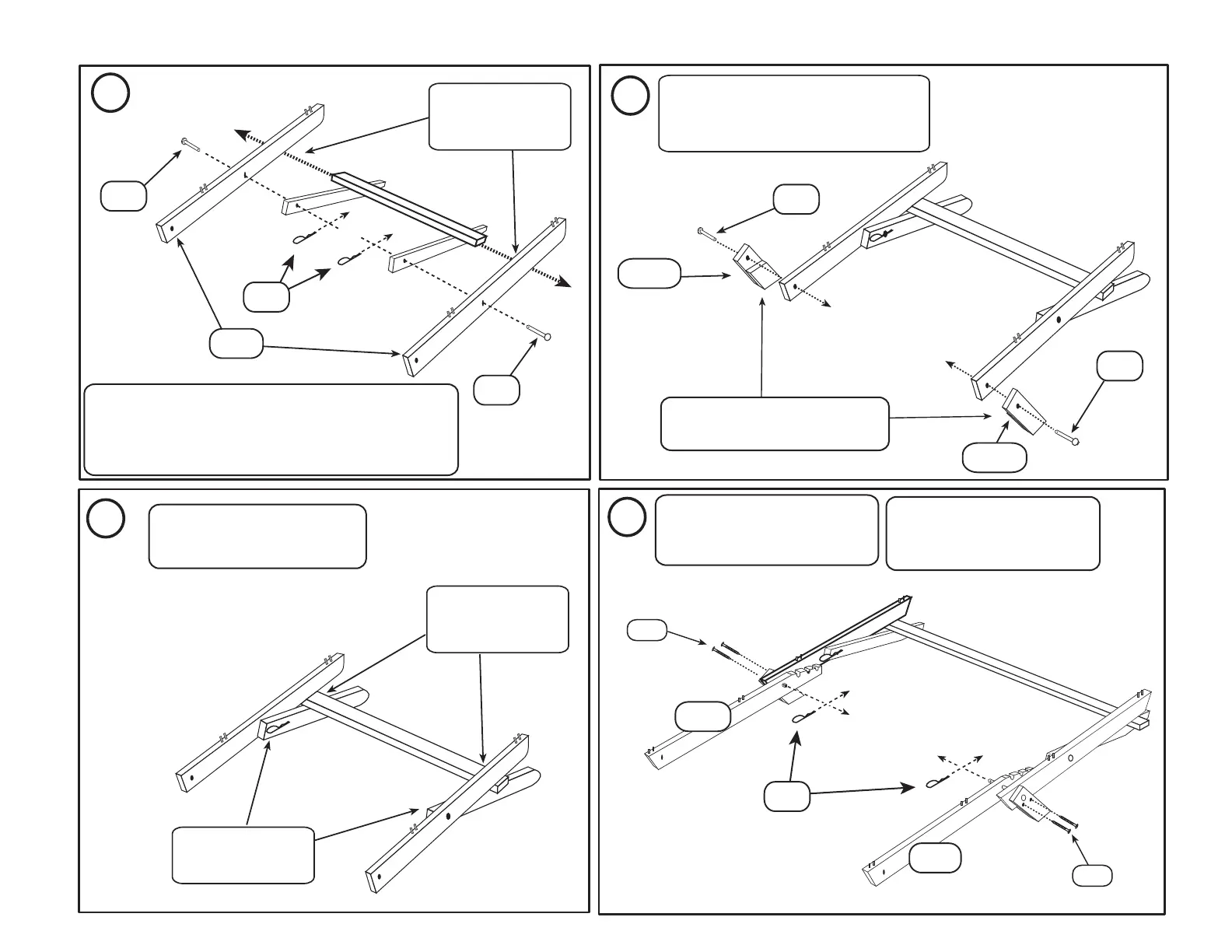

Attach the Left Back Leg (K-10-BL)
and Right Back Leg (K-10-BR)
to the outside of the Back Rails
using (2) 3-1/4” Cevis Pins (H-12).
Do not put on the Hair Pins at this time.
5
Make sure that the cut-away part of
the Back Legs face in so that they
will support the Back Rails.
6
K-37-S
K-37-S
Attach the (2) Back Rails (K-31-B) to the outside of the
Prop Assembly using (2) 2-1/4” Clevis Pins (H-8).
Let the Prop Assembly swing down so that the
Prop Connector can go below the Back Rails as shown.
Secure the Clevis Pins with Hair Pins (H-5).
Slide the Seat Rails (K-37-S)
onto the 3-1/4” Clevis Pins and
secure with Hair Pins (H-5).
Then secure the Back Legs
with Wood Screws (H-19).
(These screws are self-tapping
and do not need pilot holes.)
H-19
H-19
H-5
