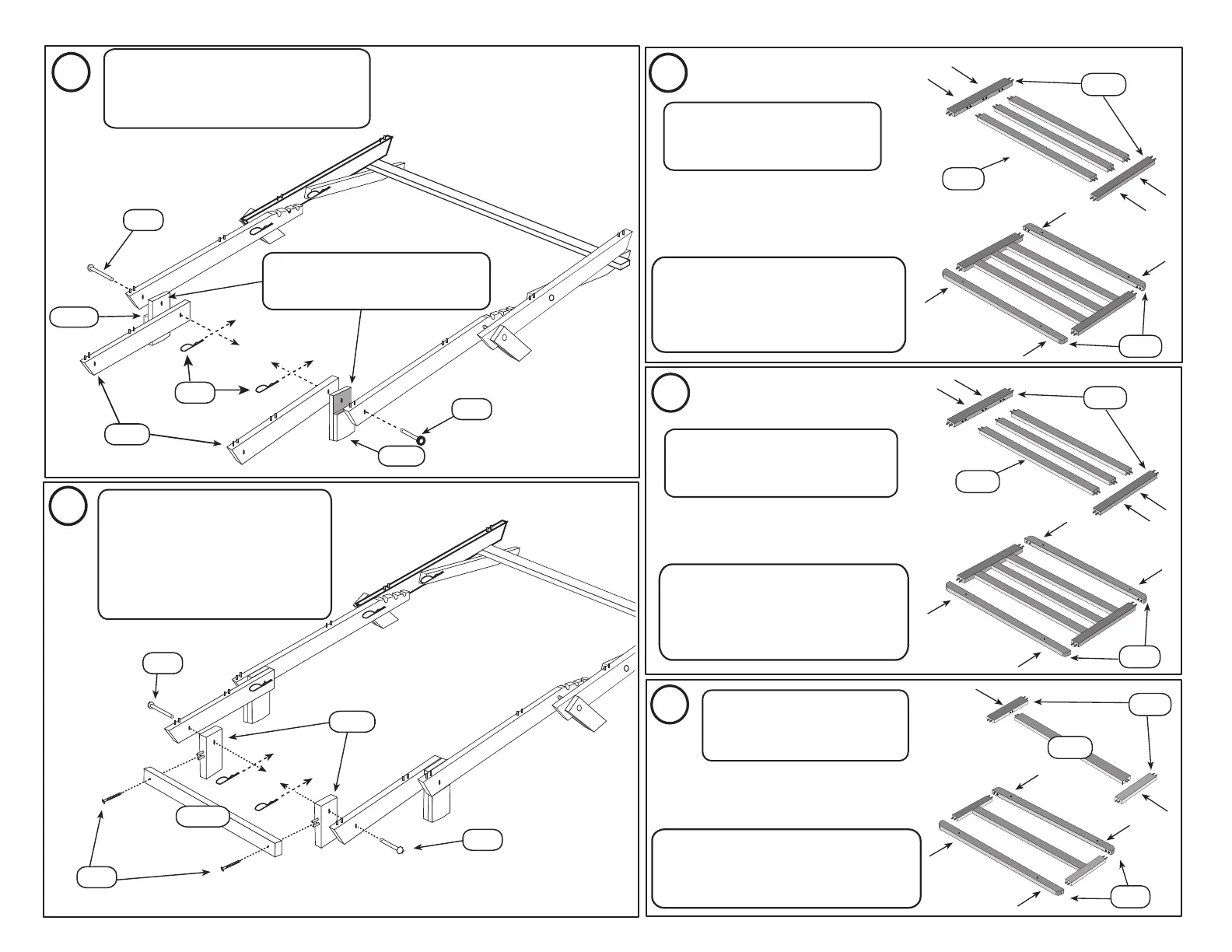

kd frames KD Lounger Twin - Step 7: Attach Seat Legs and Rails; Step 8: Attach Lounger Legs; Step 9: Attach Back Slats; Step 10: Attach Seat Slats

11
9
Using (3) Middle Slats (K-33-M)
push the Wood Dowels
into the edge holes on
(2) Back Slat Caps (K-22-B).
K-22-B
K-37-B
Attach the Seat Legs (K-9-SL)
and the Lounger Rails (K-24-L)
to the Seat Rails using
(2) 3-1/4” Clevis Pins (H-12).
Secure the Clevis Pins with Hair Pins (H-5).
7
H-12
K-24-L
H-12
K-9-SL
K-9-SL
K-33-M
K-37-L
K-11-L
K-33-M
Make sure that the cut-away part of
the Seat Legs face out so that they
will support the Seat Rails.
10
Using (3) Middle Slats (K-33-M)
push the Wood Dowels
into the edge holes on
(2) Seat Slat Caps (K-20-S).
K-20-S
K-33-M
K-37-S
Use (1) Middle Slat (K-33-M)
and push the Wood Dowels
into the edge holes on
(2) Lounger Slat Caps (K-11-L).
Find the (2) Back Slats (K-37-B)
and push them onto the
Wood Dowels on the
Back Slat Caps.
The side labeled “BACK” faces down.
Find the (2) Lounger Slats (K-37-L)
and push them onto the Wood Dowels
on the Lounger Slat Caps.
The side labeled “LOUNGE” faces down.
Attach the Lounger Legs (K-9-LL)
to the Lounger Rails using
(2) 2-1/4” Clevis Pins (H-8)
and secure with Hair Pins (H-5).
Push the Leg Connector (K-23-LC)
onto the Wood Dowels on the
Lounger Legs and attach
with Wood Screws (H-19).
8
H-8
H-8
K-9-LL
K-23-LC
Find the (2) Seat Slats (K-37-S)
and push them onto the
Wood Dowels on the
Seat Slat Caps.
The side labeled “SEAT” faces down.
H-19
H-5
