Keba KeControl CP 505/A User Manual

CP 503/A, CP 505/A,D,K, CP 507/
A,C
Connections and wiring
Project engineering manual V1.06
47
© KEBA 2021

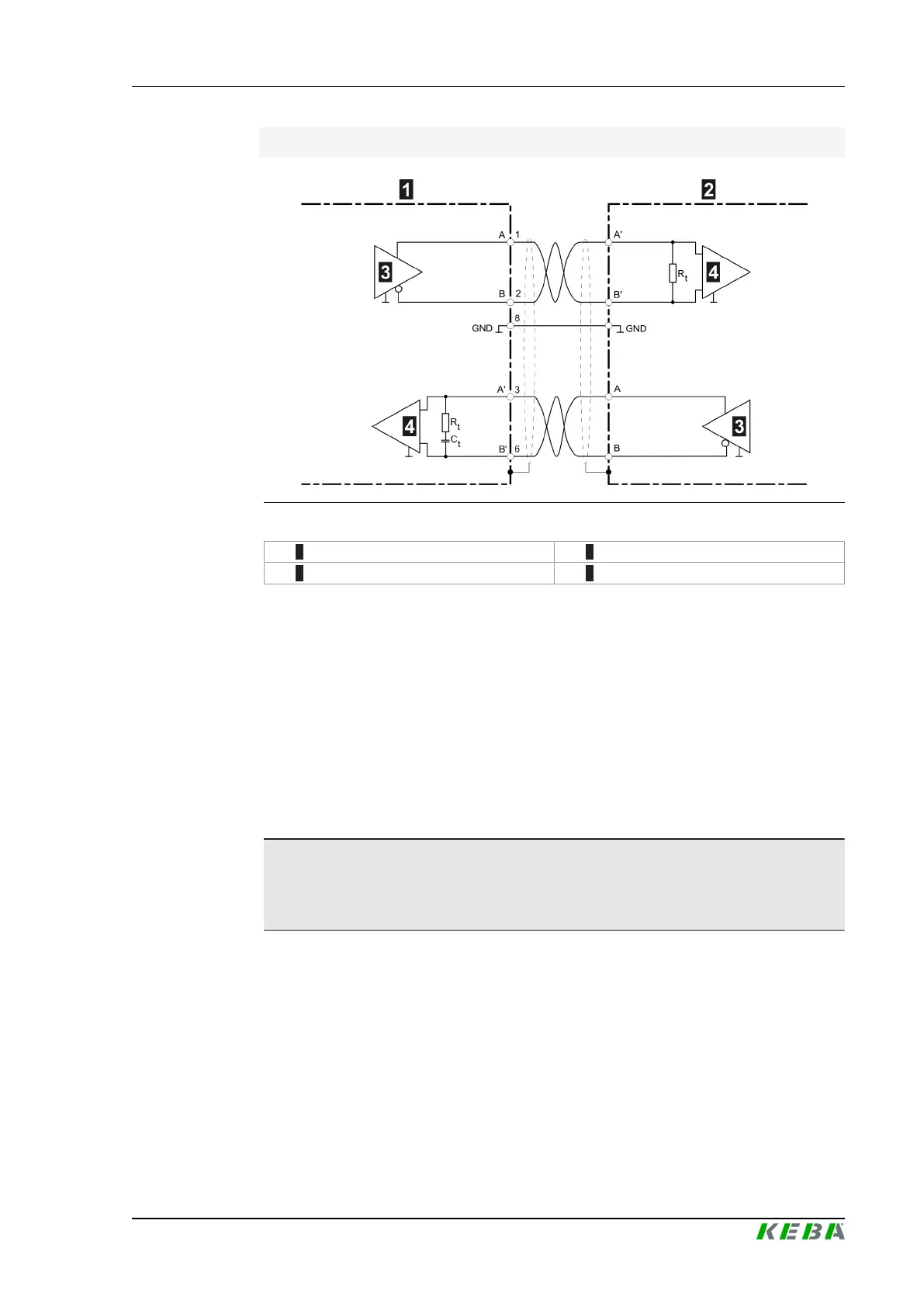

Bus termination with AC termination
Fig.6-34: Example: AC termination
1 ... CP 50x/x 2 ... External participant
3 ... Transmitter 4 ... Receiver
6.8.2.4 Cable and plug specification
For details, refer to the system manual.
6.8.3 RS-485-A interfaces
Several participants can communicate via the RS-485-A bus at which the
maximum number of participants is limited to 32. The wires to other partici-
pants have to be shielded. For participants with lower unit load than as-
sumed by the standard (e.g. 1/4 unit load), more than 32 participants can be
connected.
Information
The wirring configuration is a line topology and must not corespond to a
star structure.
