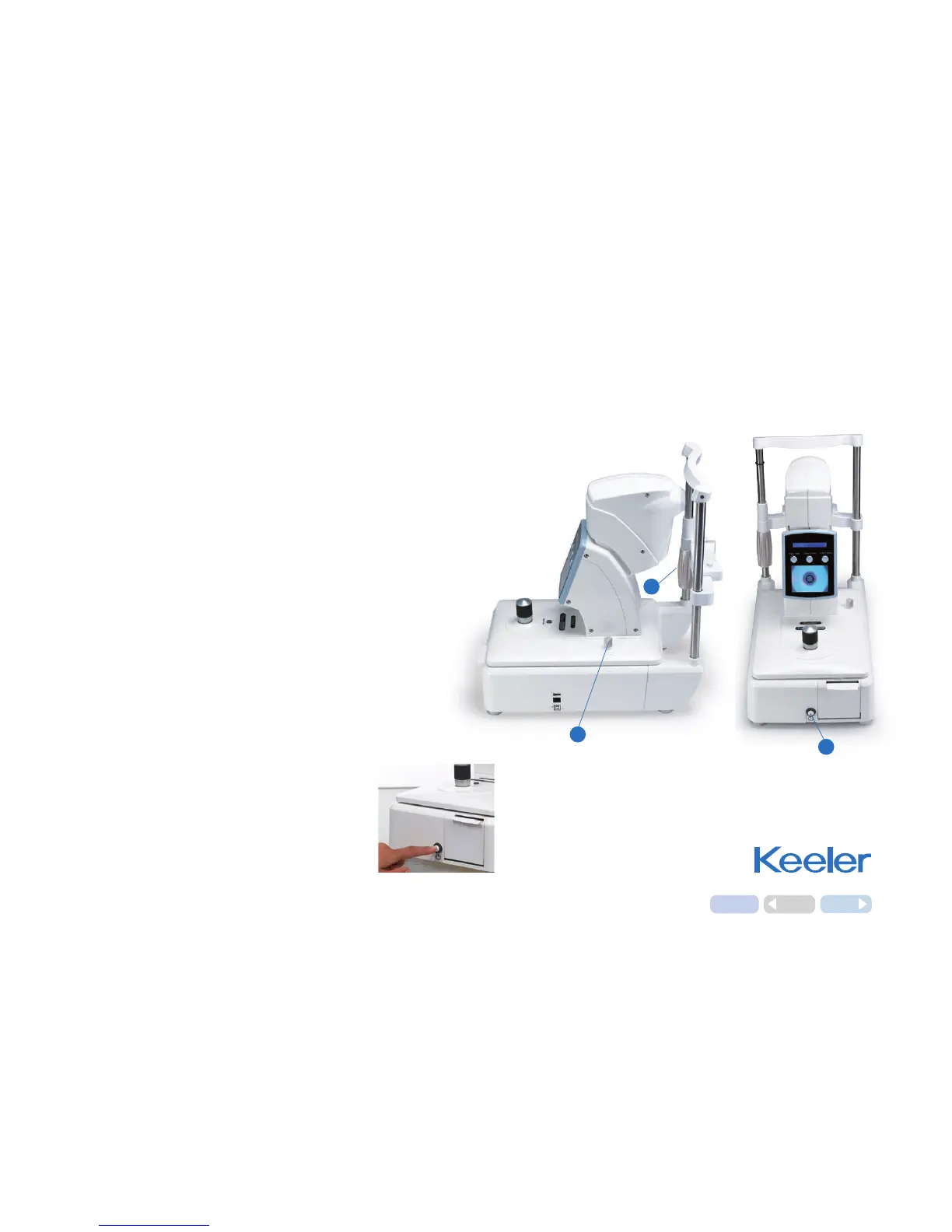

1. Travelling lock
The Pulsair Desktop is fitted with a travelling lock to protect
the moving parts from damage when in transit or when the
device may be subject to sudden movement or shock.
To release the travelling lock rotate it counter clockwise until the
joystick assembly is free to move.
To lock the moving section in place, align the moving upper
section with the base unit and carefully screw the travelling lock
clockwise until it is firmly located.
Note – do not over tighten the travelling lock.
2. Chinrest and chinrest height adjuster
Rotate the chinrest adjuster to increase or decrease the
height of the chinrest until the patients outer canthus is in line
with the indicator line on the chinrest vertical bar.
3. On/Off push button
On pressing the On/Off button, the instrument
will be switched on and ready for use. The
display will progress quickly through the
following stages during system initialisation.
9. Names of controls and components
1
2
3
