7.2 PSD 5 basic model

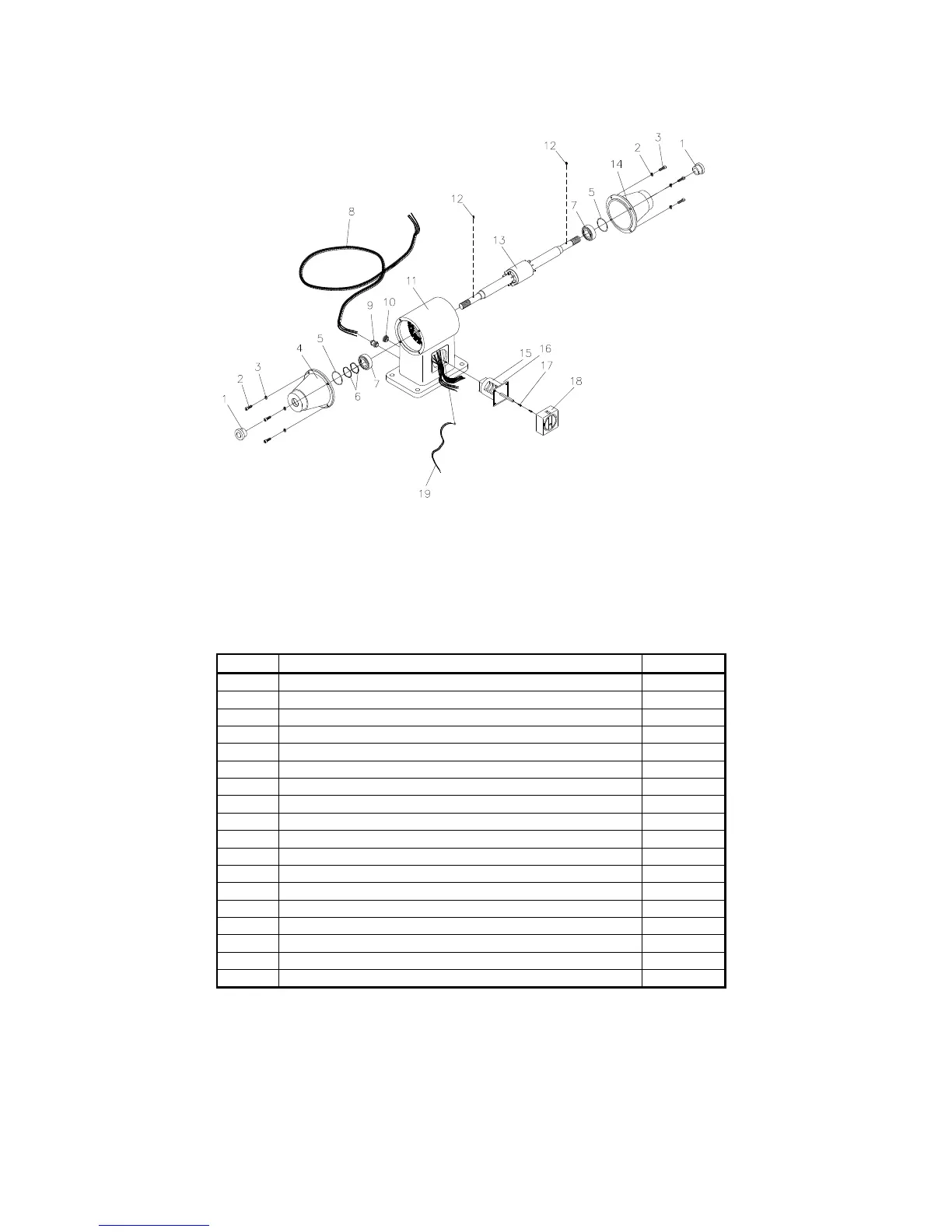

Fig.:7.2 Drawing of PSD 5 basic model
Spare parts list for PSD 5 basic model
Pos.nr.
Type
Ident. Nr.
1
Collar bushing E 308
0995681
2
Screw M6x20 CH Z
4345678
4
Bearing end shield V
0187860
5
O-ring 50x45x3 mm
1385259
6
Wave spring 50x44x0.6
0100331
7
Bearing 6205 2Z/C3
0104221
8
Cable 4x0.75mm² sort
0129420
9
Cable lead-in PG11
0105154
10
Blind stop PG11
2112512
11
Stator housing
1313711
12
Split pin ø4x8
0711179
13
Rotor cpl.
0766917
14
Bearing end shield H
1461142
15
DISA switch 230 V
0188807
16
DISA switch 440 V
0188817
17
Skrew M4x10
0100427
18
Switch for DISA switch
0110049
19
Earth cable
1461327
