7.3 PSD 5 cover

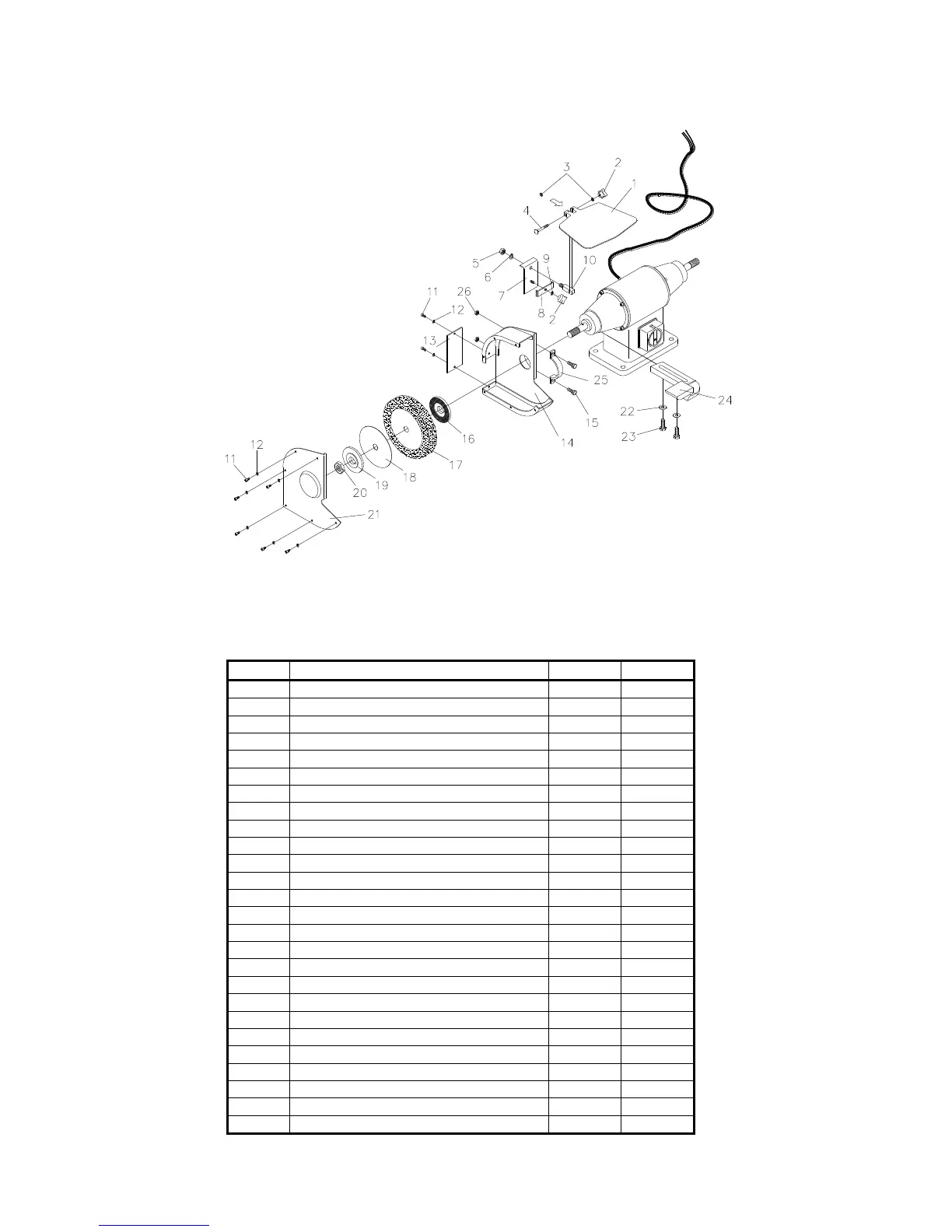

Fig.: 7.3 Split drawing of PSD 5 cover
Spare parts list for PSD 5 cover
Pos.nr.
Type
Cover L
Cover R
1
Eye shield for PSD 5
1311948
1311948
2
Cross handle Ø32 M6 DIN 6335
0922021
0922021
3
Disc 6.4x1.6
0737631
0737631
4
Carriage bolt 6x50
0932043
0932043
5
Nut M10 Z
5438761
5438761
6
Spring wave ring 10.2
0132606
0132606
7
Spark arrestor PSD 5 L-piece
0744859
0744859
8
Spark arrestor PSD 5 U- piece
0744840
0744840
9
Washer DIM 6 Z
1323060
1323060
10
Flange screw M10
1311956
1311956
11
Screw M5x10 CH Z
0120628
0120628
12
Washer DIM 5 Z
0737666
0737666
13
Lid PSD 5 cover
0745111
0745111
14
Cover PSD 5 indv. Kpl.
1065078
1065079
15
Screw M6x20 CH Z
4345678
4345678
16
Flange inner
0921572
0921572
17
Grinding wheel
-
-
18
Cardboard labels
0920080
0920080
19
Flange outer
1105183
1105183
20
Nut M20x1.5
0744824
0744816
21
Cover PSD 5 outer
0745073
0745081
22
Disc 3/8” Z
0101491
0101491
23
Screw M10x30 Z
0236004
0236004
24
Grinding system
0744409
0744425
25
Fittings for cover PSD 5
0114974
0114974
26
Nut M8
0231350
0231350
