7.6 Deburring cover for PODA 5

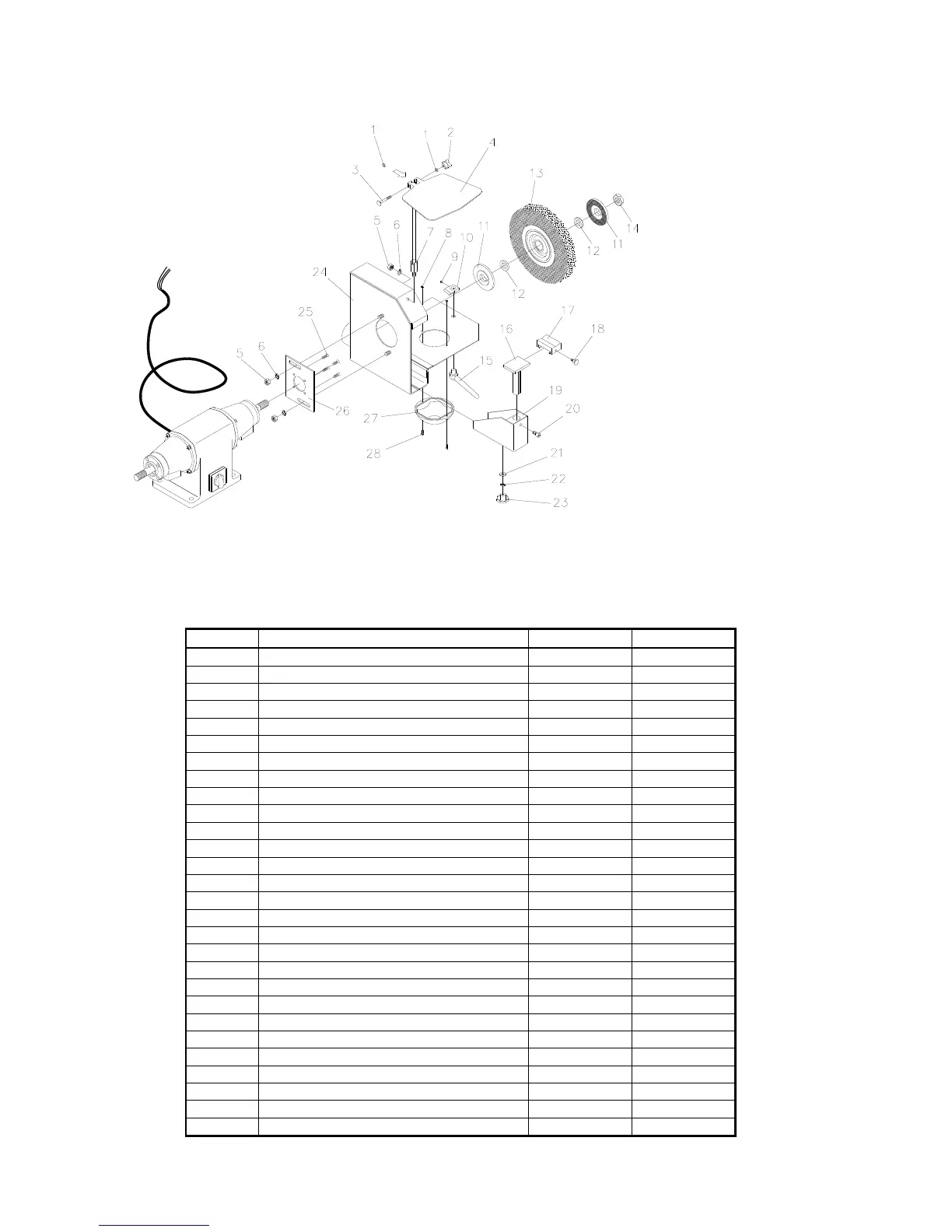

Fig 7.6 Drawing of parts in deburrer
Spare parts list for deburrer for PODA 5
Pos.nr.
Type
Cover R
Cover L
1
Disc 6.4x1.6
0737631
0737631
2
Cross handle ø32 M6 DIN 6335
0922021
0922021
3
Bolt for wood 6x50
0932043
0932043
4
Eye protective guard PSD 5
1311948
1311948
5
Nut M10 Z
0516637
0516637
6
Washer 10.2
0132608
0132608
7
Chest screw M10
1311956
1311956
8
Safety nut M4
0737615
0737615
9
Pointed screw M5x6 spids
0737606
0737606
10
Fittings for handle for deb./steel brush
0110166
0110166
11
Flange
1105183
1105183
12
Bushing, reducing 32-20mm
5003220
5003220
13
Steel brush 250x32x32
1531419
1531419
14
Nut M20x1.5
0744824
0744816
15
Håndle for deburrer/steel brush
0110168
0110168
16
Holder for grinding system
0920072
0920072
17
Grinding system for deburrer
0920073
0920073
18
ST-handle VC. 192/25P-M5x10
1943596
1943596
19
Drawer for grinding system f/deburrer
0920074
0920074
20
Screw M8x16 CH
0120622
0120622
21
Auto disc 5/16” Z
0132310
0132310
22
Washer DIM 8 Z
0132594
0132594
23
Star handle ø40 M8 DIN 6335
1443593
1443593
24
Deburrer cover
0920075
0920076
25
Machine screw M6x20 UHJX Z
0920020
0920020
26
Mounting plate
0250101
0250102
27
Termunal box lid MF71
0189421
0189421
28
Machine screw M4x12 Z
0737610
0737610
