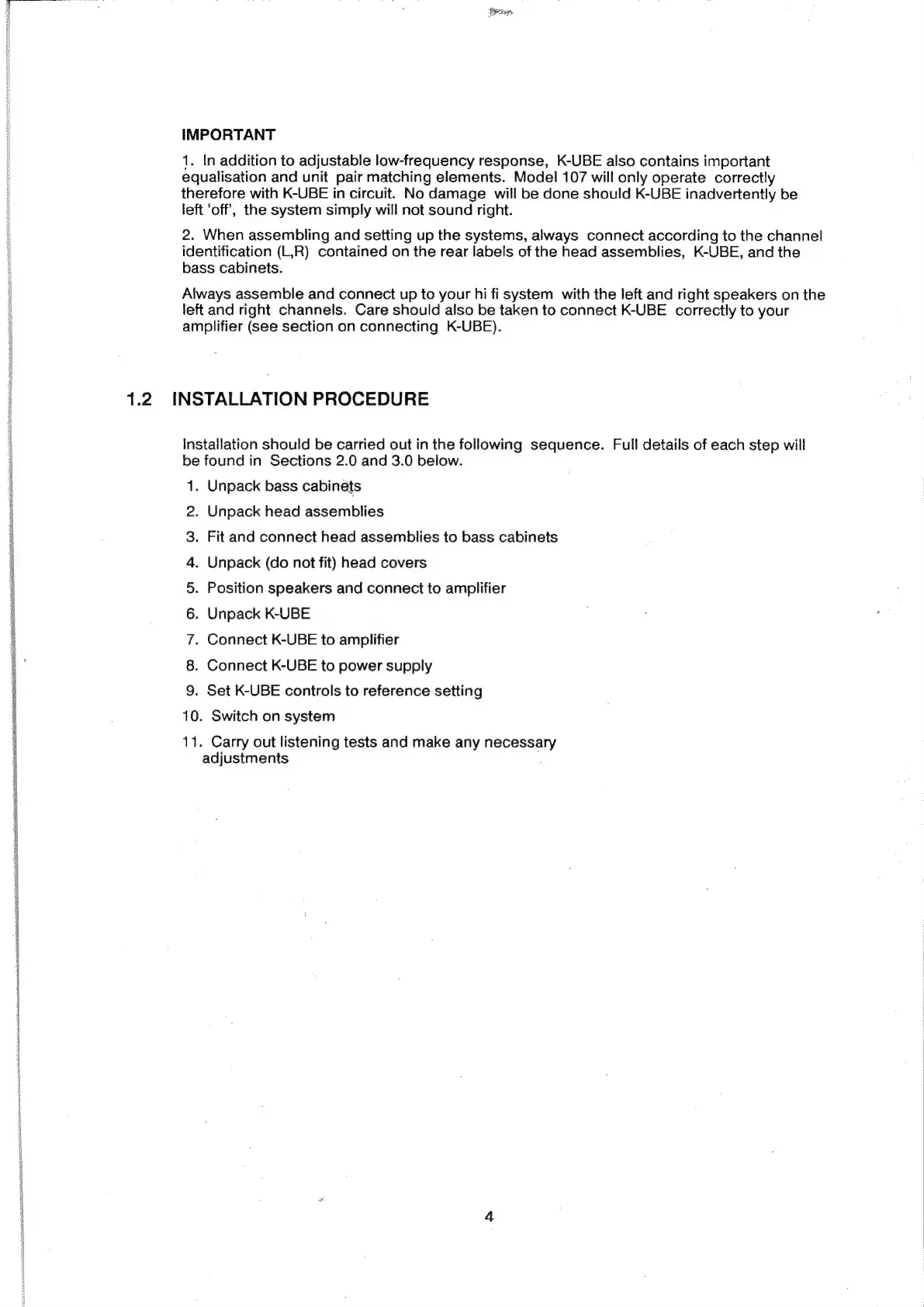

KEF REFERENCE 107 - Installation Procedure

IMPORTANT
1. In addition to adjustable low-frequency response, K-UBE also contains important
equalisation and unit pair matching elements. Model 107 will only operate correctly
therefore with K-UBE in circuit. No damage will be done should K-UBE inadvertently be
left ‘off’, the system simply will not sound right.
2. When assembling and setting up the systems, always connect according to the channel
identification (L,R) contained on the rear labels of the head assemblies, K-UBE, and the
bass cabinets.
Always assemble and connect up to your hi fi system with the left and right speakers on the
left and right channels. Care should also be taken to connect K-UBE correctly to your
amplifier (see section on connecting K-UBE).
1.2 INSTALLATION PROCEDURE
Installation should be carried out in the following sequence. Full details of each step will
be found in Sections 2.0 and 3.0 below.
1. Unpack bass cabinets
. Unpack head assemblies
. Fit and connect head assemblies to bass cabinets
. Unpack (do not fit) head covers
. Position speakers and connect to amplifier
. Unpack K-UBE
. Connect K-UBE to amplifier
DAN DOO fk W Pf . Connect K-UBE to power supply
9. Set K-UBE controls to reference setting
10. Switch on system
11. Carry out listening tests and make any necessary
adjustments
