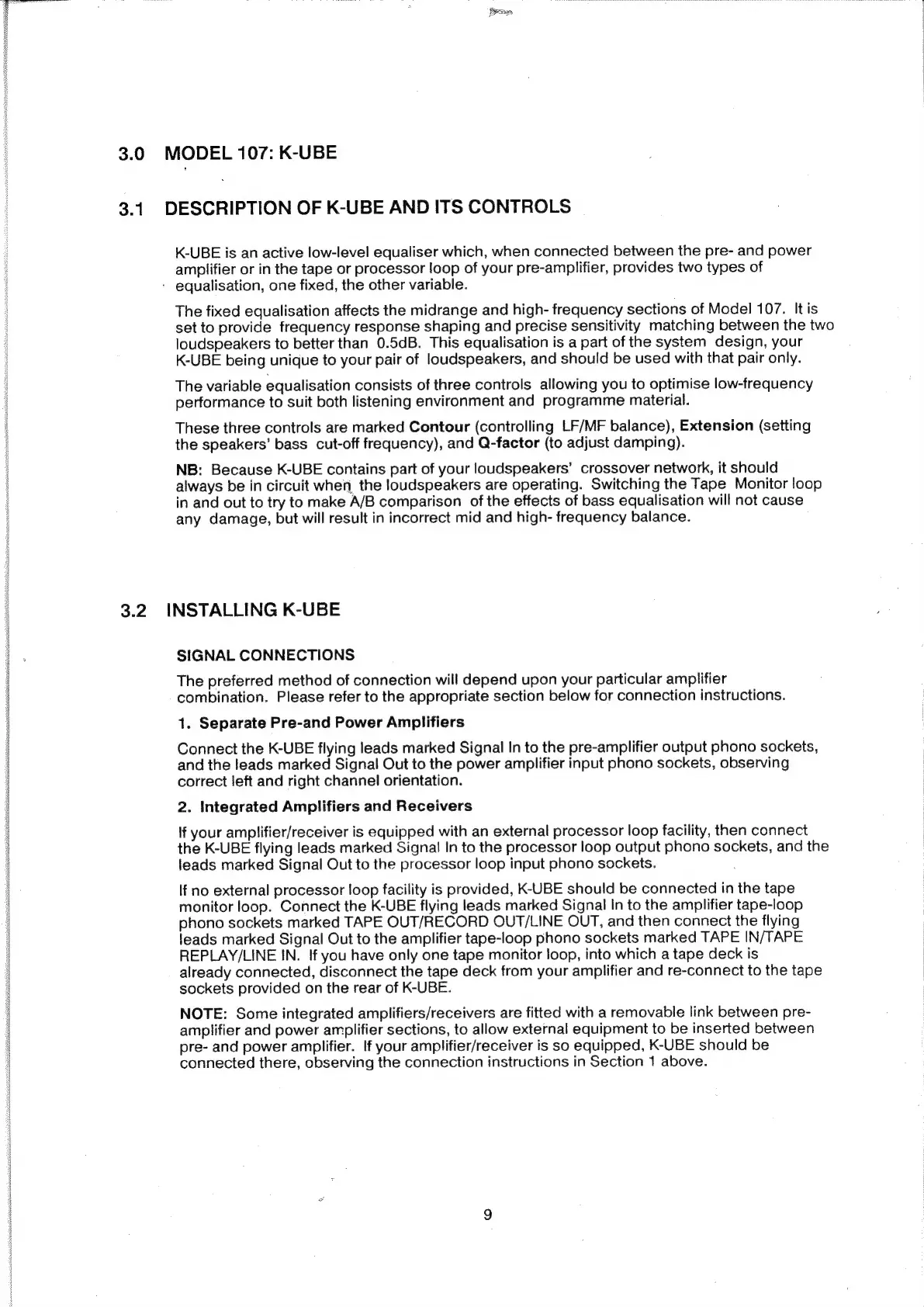

3.0
MODEL
107:
K-UBE
3.1
DESCRIPTION
OF
K-UBE
AND
ITS
CONTROLS
K-UBE
is
an
active
low-level
equaliser
which,
when
connected
between
the
pre-
and
power
amplifier
or
in
the
tape
or
processor
loop
of
your
pre-amplifier,
provides
two
types
of
:
equalisation,
one
fixed,
the
other
variable.
The
fixed
equalisation
affects
the
midrange
and
high-
frequency
sections
of
Model
107.
ltis
set
to
provide
frequency
response
shaping
and
precise
sensitivity
matching
between
the
two
loudspeakers
to
better
than
0.5dB.
This
equalisation
is
a
part
of
the
system
design,
your
K-UBE
being
unique
to
your
pair
of
loudspeakers,
and
should
be
used
with
that
pair
only.
The
variable
equalisation
consists
of
three
controls
allowing
you
to
optimise
low-frequency
performance
to
suit
both
listening
environment
and
programme
material.
These
three
controls
are
marked
Contour
(controlling
LF/MF
balance),
Extension
(setting
the
speakers’
bass
cut-off
frequency),
and
Q-factor
(to
adjust
damping).
NB:
Because
K-UBE
contains
part
of
your
loudspeakers’
crossover
network,
it
should
always
be
in
circuit
when
the
loudspeakers
are
operating.
Switching
the
Tape
Monitor
loop
in
and
out
to
try
to
make
A/B
comparison
of
the
effects
of
bass
equalisation
will
not
cause
any
damage,
but
will
result
in
incorrect
mid
and
high-
frequency
balance.
3.2
INSTALLING
K-UBE
;
SIGNAL
CONNECTIONS
The
preferred
method
of
connection
will
depend
upon
vour
particular
amplifier
combination.
Please
refer
to
the
appropriate
section
below
for
connection
instructions.
1.
Separate
Pre-and
Power
Amplifiers
Connect
the
K-UBE
flying
leads
marked
Signal
In
to
the
pre-amplifier
output
phono
sockets,
and
the
leads
marked
Signal
Out
to
the
power
amplifier
input
phono
sockets,
observing
correct
left
and
right
channel
orientation.
2.
Integrated
Amplifiers
and
Receivers
if
your
amplifier/receiver
is
equipped
with
an
external
processor
loop
facility,
then
connect
the
K-UBE
flying
leads
marked
Signal
In
to
the
processor
loop
output
phono
sockets,
and
the
leads
marked
Signal
Out
to
the
processor
loop
input
phono
sockets.
If
no
external
processor
loop
facility
is
provided,
K-UBE
should
be
connected
in
the
tape
monitor
loop.
Connect
the
K-UBE
flying
leads
marked
Signal
In
to
the
amplifier
tape-loop
phono
sockets
marked
TAPE
OUT/RECORD
OUT/LINE
OUT,
and
then
connect
the
flying
leads
marked
Signal
Out
to
the
amplifier
tape-loop
phono
sockets
marked
TAPE
IN/TAPE
REPLAY/LINE
IN.
If
you
have
only
one
tape
monitor
loop,
into
which
a
tape
deck
is
already
connected,
disconnect
the
tape
deck
from
your
amplifier
and
re-connect
to
the
tape
sockets
provided
on
the
rear
of
K-UBE.
NOTE:
Some
integrated
amplifiers/receivers
are
fitted
with
a
removable
link
between
pre-
amplifier
and
power
amplifier
sections,
to
allow
external
equipment
to
be
inserted
between
pre-
and
power
amplifier.
If
your
amplifier/receiver
is
so
equipped,
K-UBE
should
be
connected
there,
observing
the
connection
instructions
in
Section
1
above.
