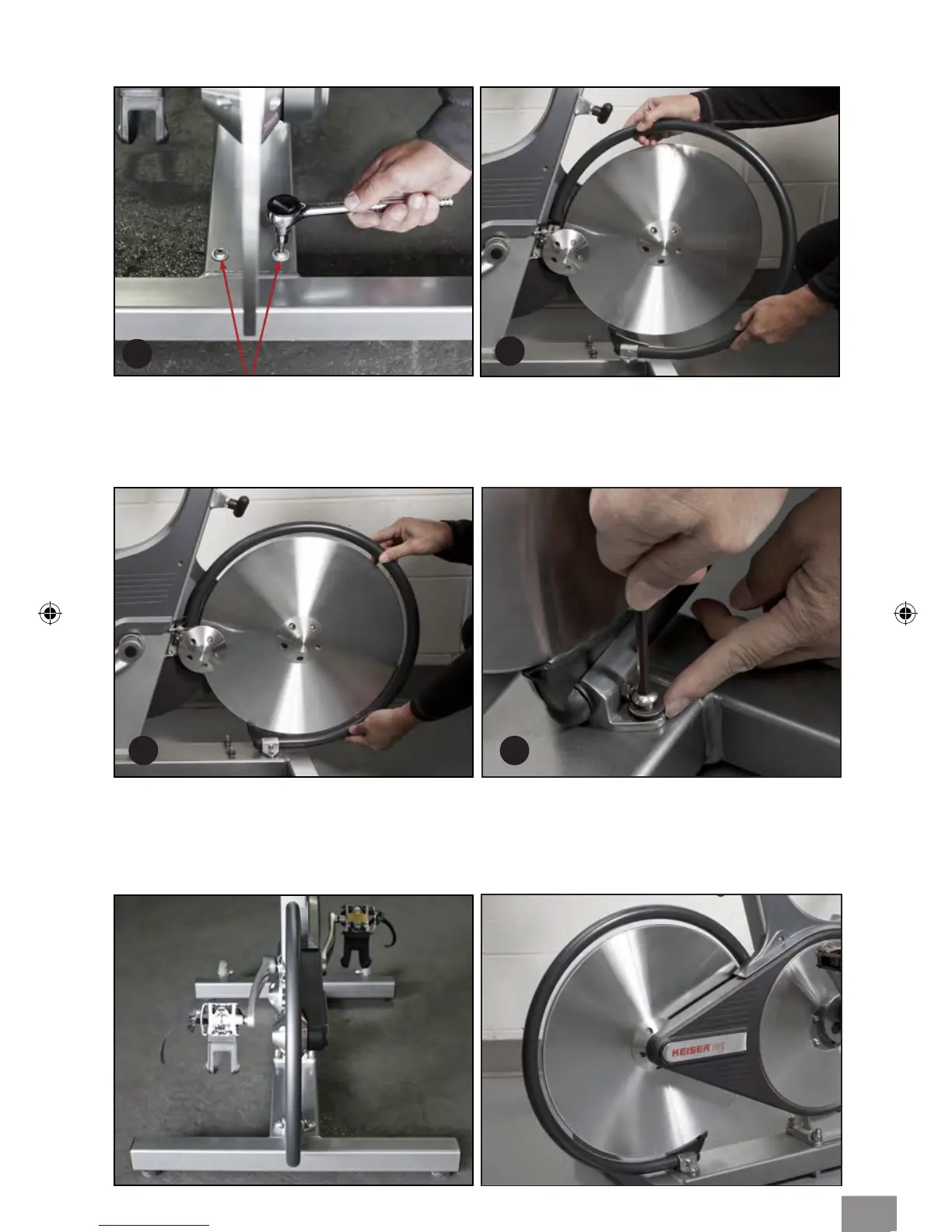

Step 5: Swing the tube over the ywheel, aligning the tube centered with the ywheel.
Step 6: Tighten the brackets to the base frame with the screws and washers that were
removed in step three. Do not fully tighten the bolts.
Step 7: By not fully tightening the bolts, the brackets allow the tube to move left to right to
some degree. Center the tube with as much clearance as possible from the ywheel, then
fully tighten all the bolts. Make sure the tube is centered over the ywheel. The ywheel
must be completely hidden behind the tube as shown below.
Step 4: Place the assembled ywheel guard over the holes and hold the tube guard as
shown, to the left of the ywheel. Place the open end of the tube guard over the casting.
