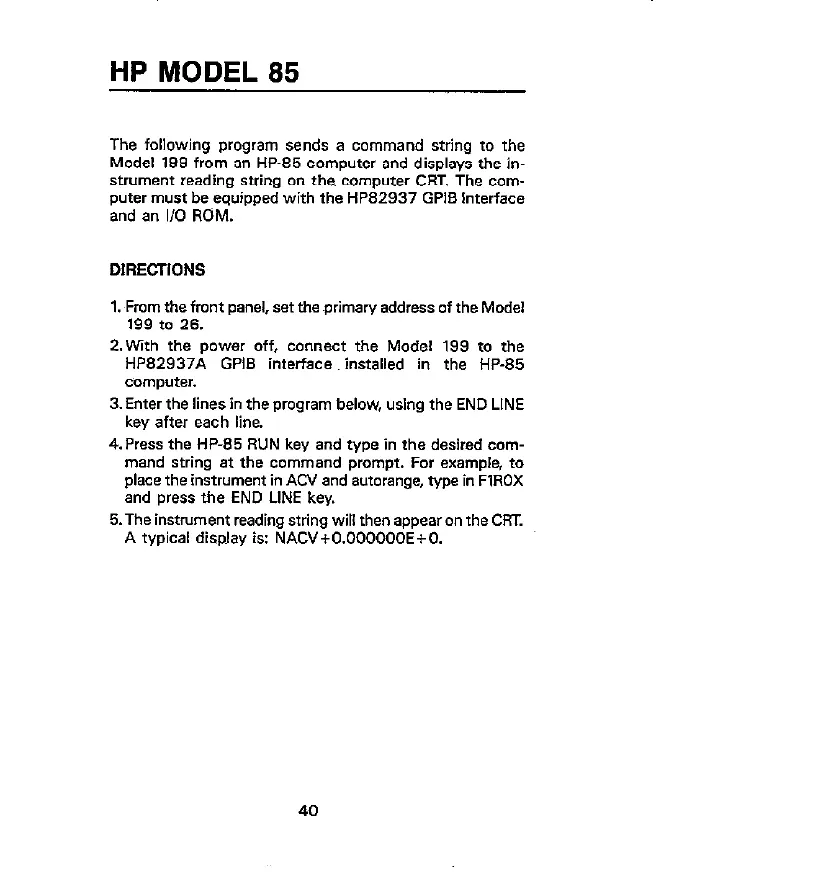

HP MODEL 85
The following program sends a command string to the
Model 199 from an HP-85 computer and displays the in-
strument reading string an the computer CRT. The cam-
pufer must be equipped with the HP82937 GPIB Interface
and an 110 ROM.
DIRECTIONS
1. Fmm the fmnt panel, set the primary address of the Model
199 to 26.
2.With the power off, connect the Model 199 to the
HP82937A GPIB interface installed in the HP-85
computer.
3. Enter the lines in the program below, using the END LlNE
key after each line.
4.Press the HP-85 RUN key and type in the desired com-
mand string et the command prompt. For example, to
place the instrument in ACV and autorange, type in FlROX
and press the END LINE key.
5.The instrument reading string will then appear on the CRT.
A typical dispJey is: NACV+O.OOOOOOE CO.
40
