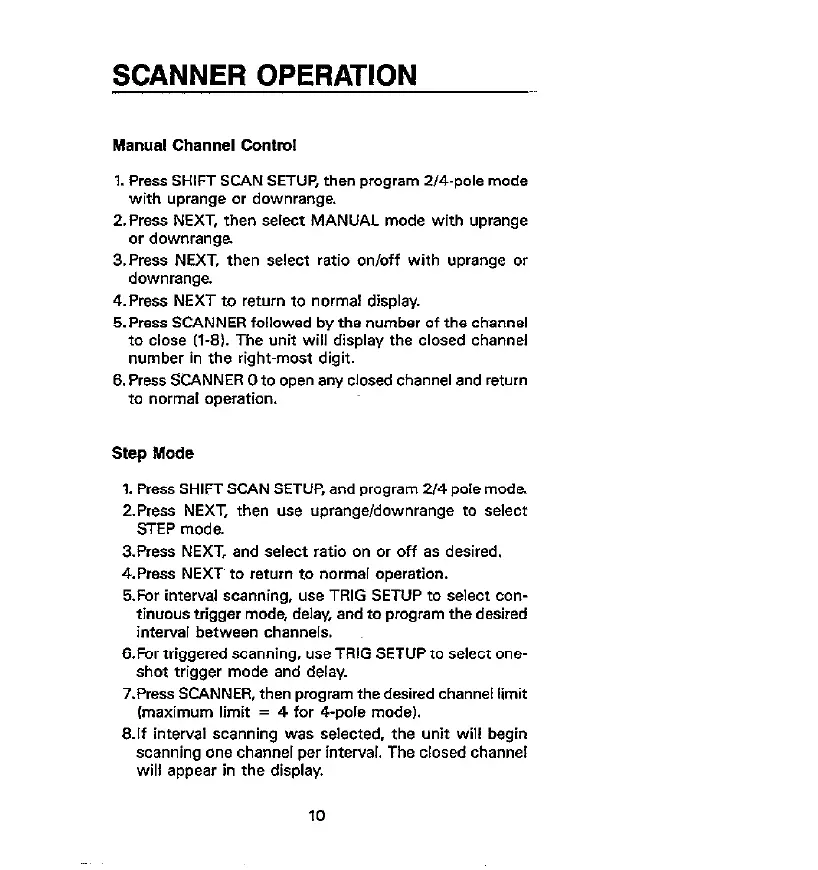

SCANNER OPERATION
Manual Channel Control
1. Press SHIFT SCAN SETUP, then program 2Wpole mode
with uprange or downrange.
2.Press NEXT, then select MANUAL mode with uprange
or downrange
3.Press NEXT. then select ratio onloff with uprange or
downrange.
4.Press NEXT to return to normal display.
&Press SCANNER followed by the number of the channel
to close 11-8). The unit will display the closed channel
number in the right-most digit.
6. Press SCANNER 0 to open any closed channel and return
to normal operation.
Step Mode
1. Press SHIFT SCAN SETUP, and program 2/4 pole mode.
2.Press NEXT, then use uprange/downrange to select
STEP mode.
3.Press NEXT, and select ratio on or off as desired,
4.Press NEXT to return to normal operation.
S.For interval scanning, use TRIG SETUP to select con-
tinuous trigger mode, delay, and to program the desired
interval between channels.
&For triggered scanning, use TRIG SETUP to select one-
shot trigger mode and delay.
7.Press SCANNER, then program the desired channel limit
fmaximum limit = 4 for 4pole mode).
8.lf interval scanning was selected. the unit will begin
scanning one channel per interval. The closed channel
will appear in the display.
10
