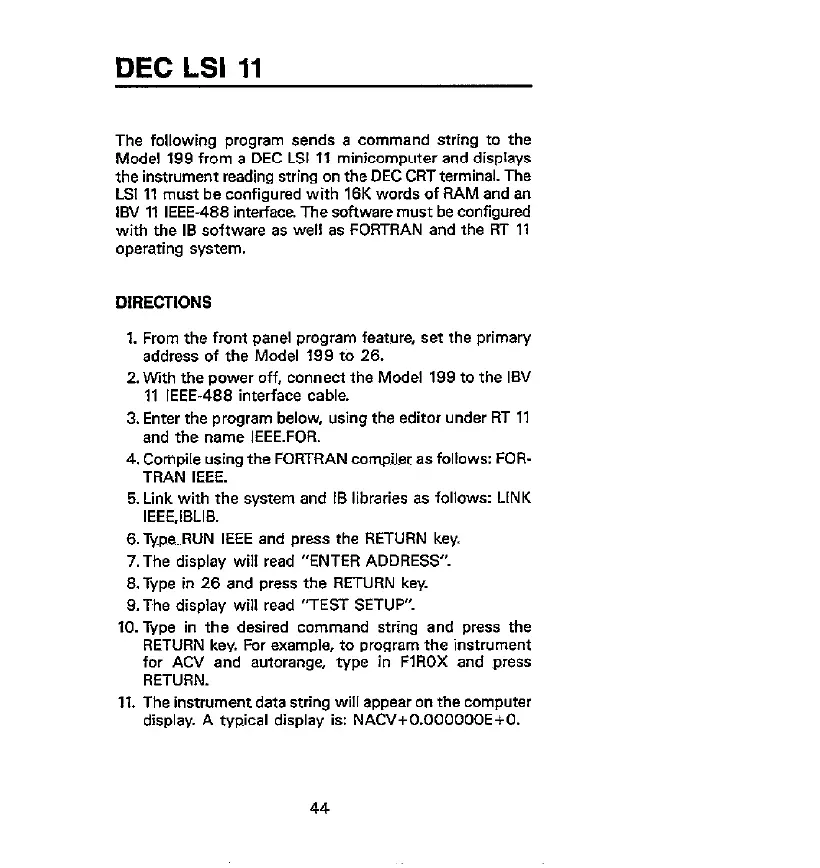

DEC LSI 11
The following program sends a command string to the
Model 199 from a DEC LSI 11 minicomputer and displays
the instrument reading string on the DEC CRT terminal. The
LSI 11 must be configured with 16K words of RAM and an
IBV 11 IEEE-488 interface The software must be configured
with the ,B software as well 8s FORTRAN and the RT 11
operating system.
DIRECTIONS
1. From the front panel program feature, set the primary
address of the Model 199 to 26.
2.With the power off, connect the Mode, 199 to the IBV
11 IEEE-466 interface cable.
3. Enter the program below, using the editor under RT 11
and the name IEEE.FOR.
4. Compile using the FORTRAN compiler as follows: FOR-
TRAN IEEE.
6. Link with the system and IB libraries as follows: LINK
,EEE,IBLIB.
B.Type~~RUN ,EEE and press the RETURN key.
7.The display will read “ENTER ADDRESS”.
B.Type in 26 and press the RETURN key.
g.The display will read “TEST SETUP”.
IO. Type in the desired command string and press the
RETURN key For example, to program the instrument
for ACV and autorange, type in FlROX and press
RETURN.
11. The instrument data string will appear on the computer
display. A typical display is: NACV+O.OOOOOOE+O.
44
