Keithley 2001-TCSCAN User Manual

Section
2: Card connectors and installation Model 2001-TCSCAN Scanner Card
User's Manual
2-4 2001-TCSCAN-900-01 Rev. A / April 2018
Card connectors
The following figure shows the input and output connectors for the 2001-TCSCAN. Card connections
include:
• CH 2 to 10 (channels 2 to 10): HI and LO input terminals are provided for each of the nine
channels on the card.
Channels 5 and 10 have current-limiting resistors installed. Path resistance for these two channels is
approximately 240 Ω.
• OUT A: HI and LO output connections for all nine channels in the 2-pole mode or channels 2 to 5
in 4-pole mode.
• OUT B: HI and LO output connections for channels 7 to 10 in 4-pole mode.
To access the connections, open the plastic shield by pressing on the locking tab. Swing the shield
away from the circuit board.

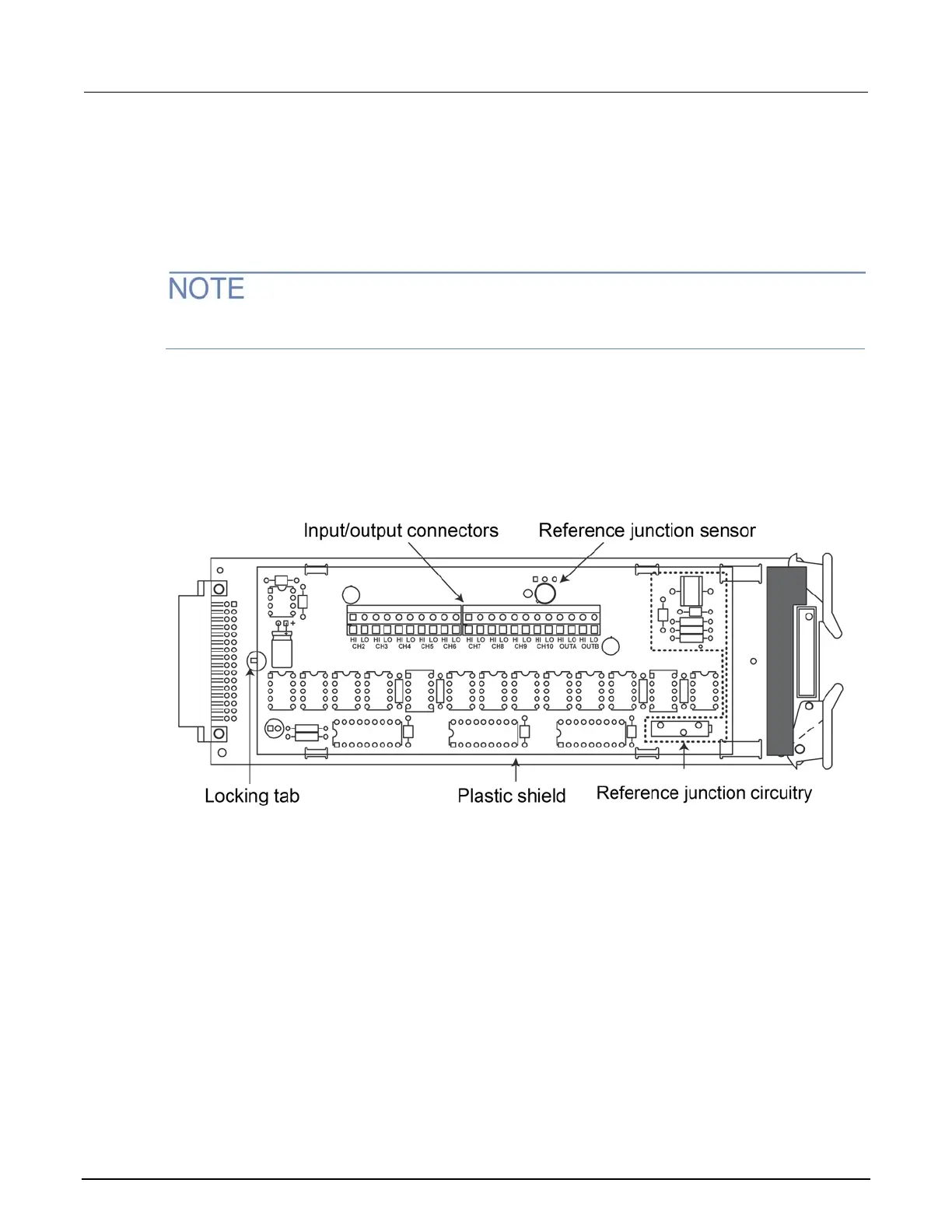

Figure 2: Card connectors
