Four-pole connections
The following figure shows a typical 4-pole resistance connection. This configuration can be used with
channel pairs 2 to 5 and 7 to 10 in order to scan:
• Four-wire resistance measurements.
• Four-wire RTD temperature measurements.

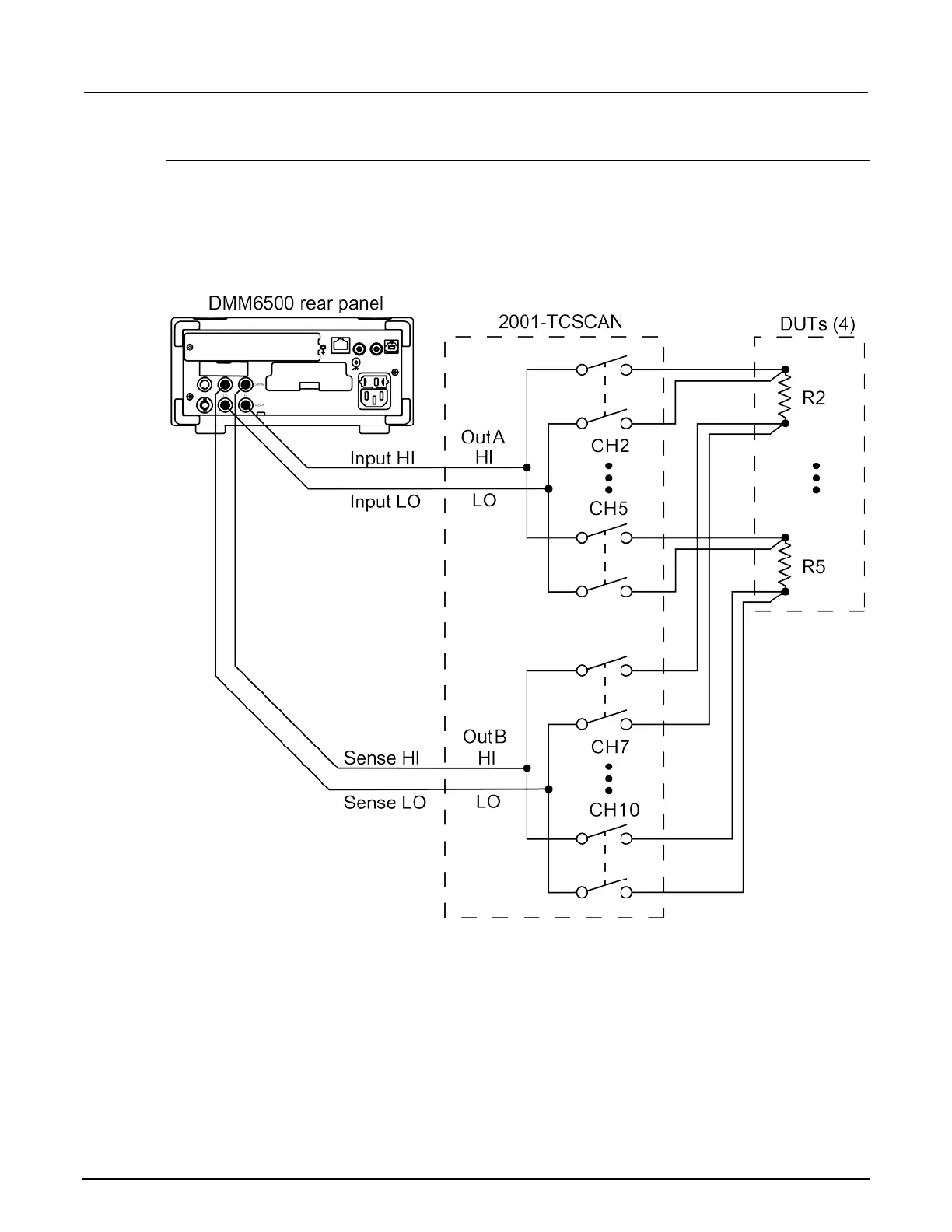

Figure 8: Typical connections for 4-wire resistance scanning
