Keithley 2601 Reference Manual

10-16 Return to Section Topics 2600S-901-01 Rev. C / January 2008
Section 10: Digital I/O and Triggering Series 2600 System SourceMeter® Instruments Reference Manual
NOTE To have direct control of the line state, use the Bypass trigger mode.
Falling Edge trigger mode

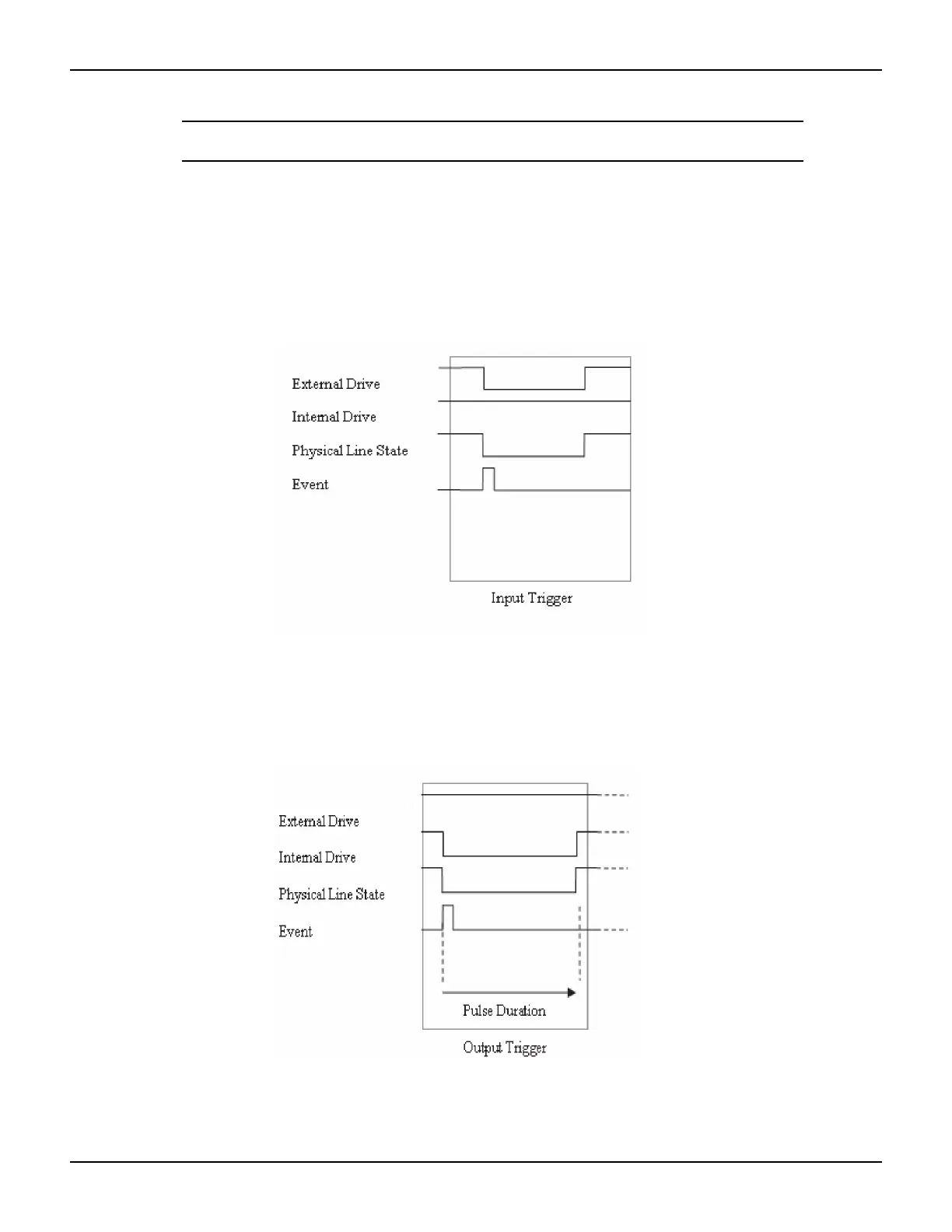

The Falling Edge trigger mode generates low pulses and detects all falling edges. Figure 10-6
illustrates the characteristics of the falling edge input trigger.
Figure 10-6: Falling Edge input trigger
Input characteristics:
• Detects all falling edges as input triggers
Figure 10-7: Falling Edge output trigger
Output characteristics
•The trigger.assert command generates a low pulse for the programmed pulse
duration
