Series 2600 System SourceMeter® Instruments Reference Manual Section 10: Digital I/O and Triggering

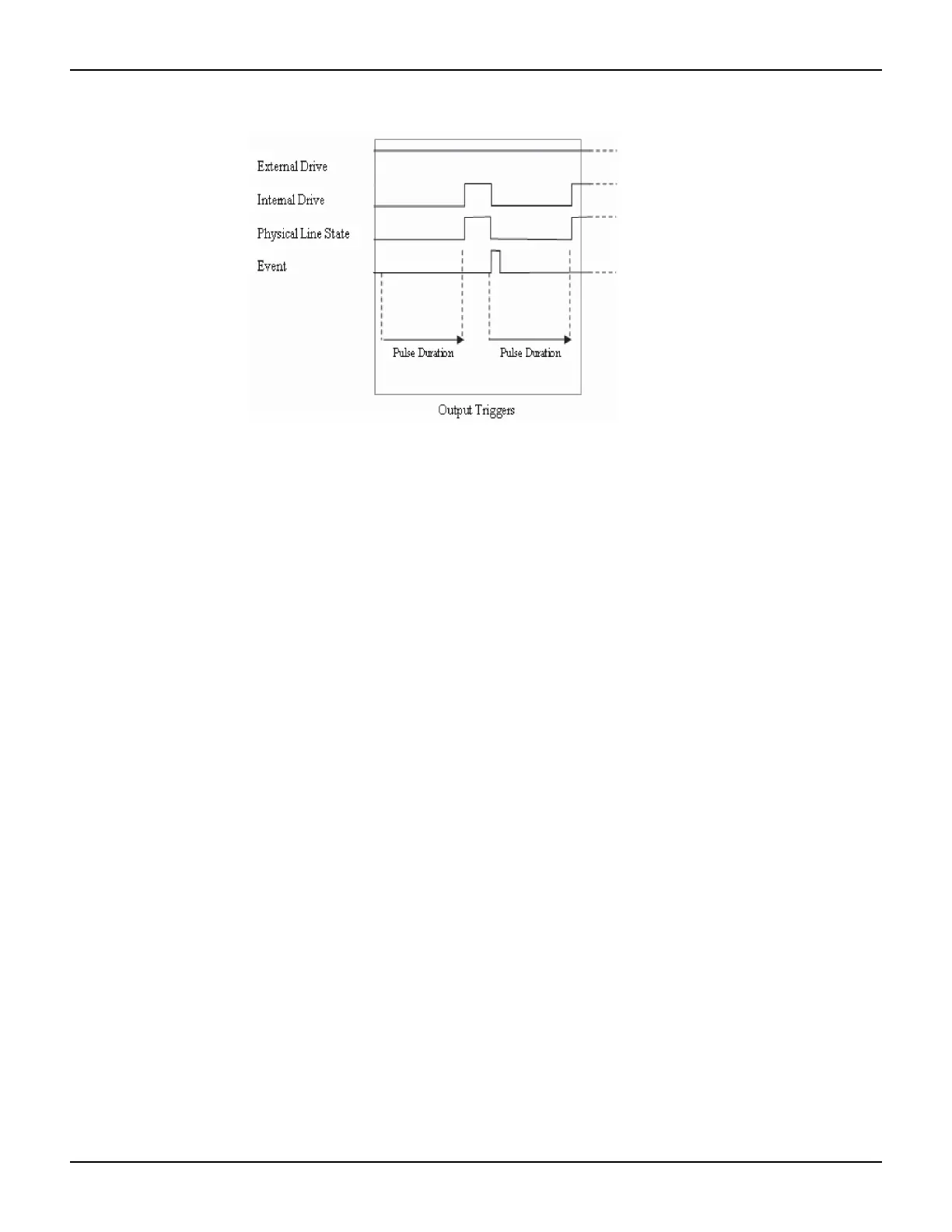

Figure 10-18: Synchronous output trigger
Output characteristics:
•The trigger.assert command generates a low pulse for the programmed pulse
duration if the line is latched low, a falling edge does not occur
• A normal falling edge pulse generates when the internal drive is not latched low and the
trigger.assert command is issued
To Next Page
