Keithley 2635 Reference Manual

13-4 Return to Section Topics 2600S-901-01 Rev. C / January 2008
Section 13: Factory Scripts Series 2600 System SourceMeter® Instruments Reference Manual
Parameters
smu, bias, level, ton, toff, points
smu:SourceMeter Channel (A or B). Defaults to SMU A if all parameters are
omitted when function is called.
bias: Bias level in volts.
level: Pulse level in volts.
ton: Pulse on-time in seconds.
toff: Pulse off-time in seconds.
points: Number of pulse-measure cycles.
Data
Pulsed current measurements, voltage levels and timestamps are stored in
smuX.nvbuffer1.
Example
PulseVMeasureI(smub, -1, 1, 1E-3, 2E-3, 20)
SMU B will output -1V and dwell for 1ms, output 1V and dwell for 2ms, and then
perform a current measurement. After the measurement, the output will return to -
1V and dwell for 2ms. This pulse-measure process will repeat 19 more times.

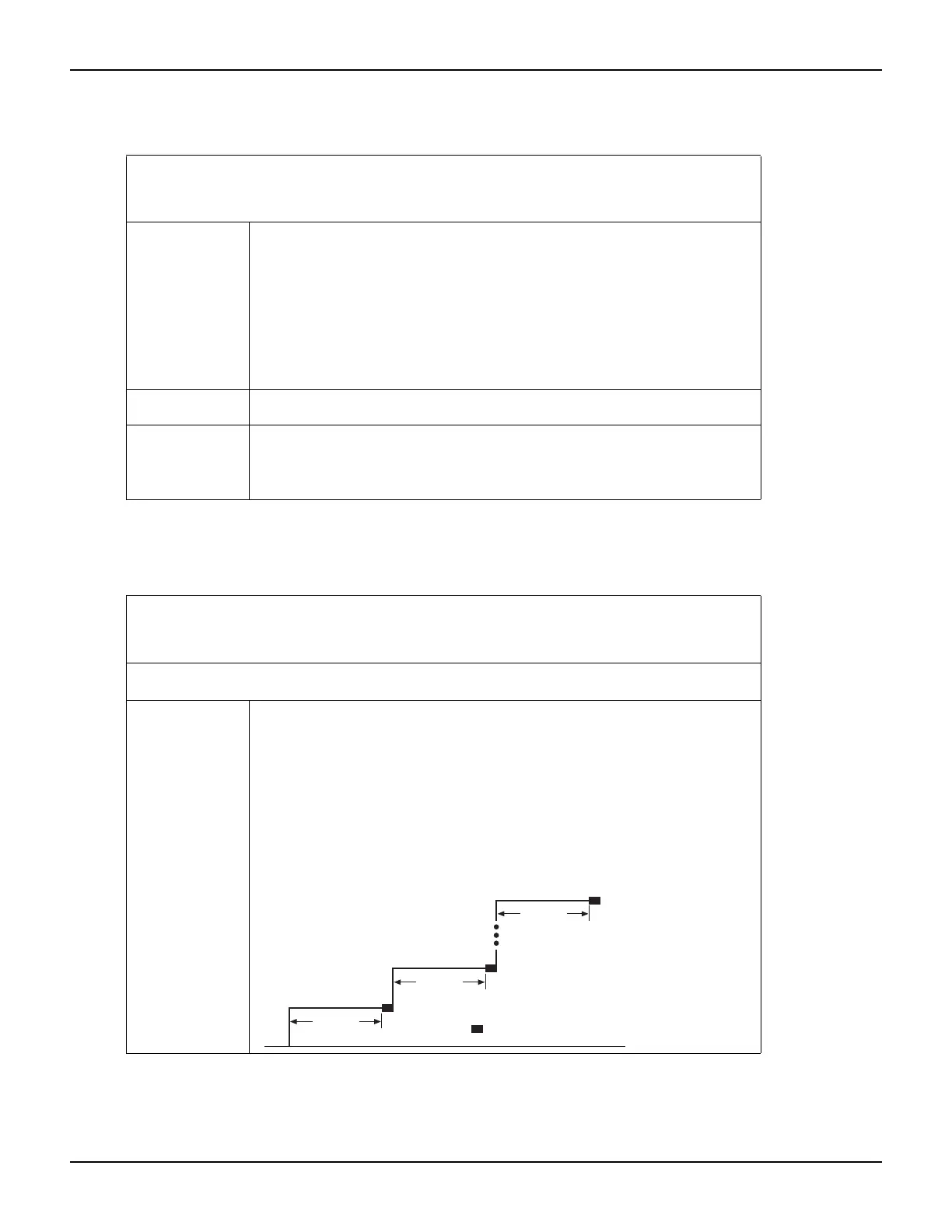

Table 13-3
KIGeneral TSP test script: SweepILinMeasureV
TSP project name: KIFactoryGeneral
TSP test script name: KIGeneral
Firmware version: 1.0.2 and later
Function:
SweepILinMeasureV(smu, starti, stopi, stime, points)
Description Performs a linear current sweep with voltage measured at every step (point):
• Sets the smu to output starti amps, allows the source to settle for
stime seconds, and then performs a voltage measurement.
• Sets the smu to output the next amps step, allows the source to settle for
stime seconds, and then performs a voltage measurement.
• Repeats the above sequence until the voltage is measured on the stopi
amps step.
The linear step size is automatically calculated as follows:
step = (stopi – starti) / (points – 1)
starti
= Voltage measurement
stopi
stime
stime
stime
Table 13-2 (continued)
KIGeneral TSP test script: PulseVMeasureI
TSP project name: KIFactoryGeneral
TSP test script name: KIGeneral
Firmware version: 1.0.2 and later
