Introduction Test
Test the instrument

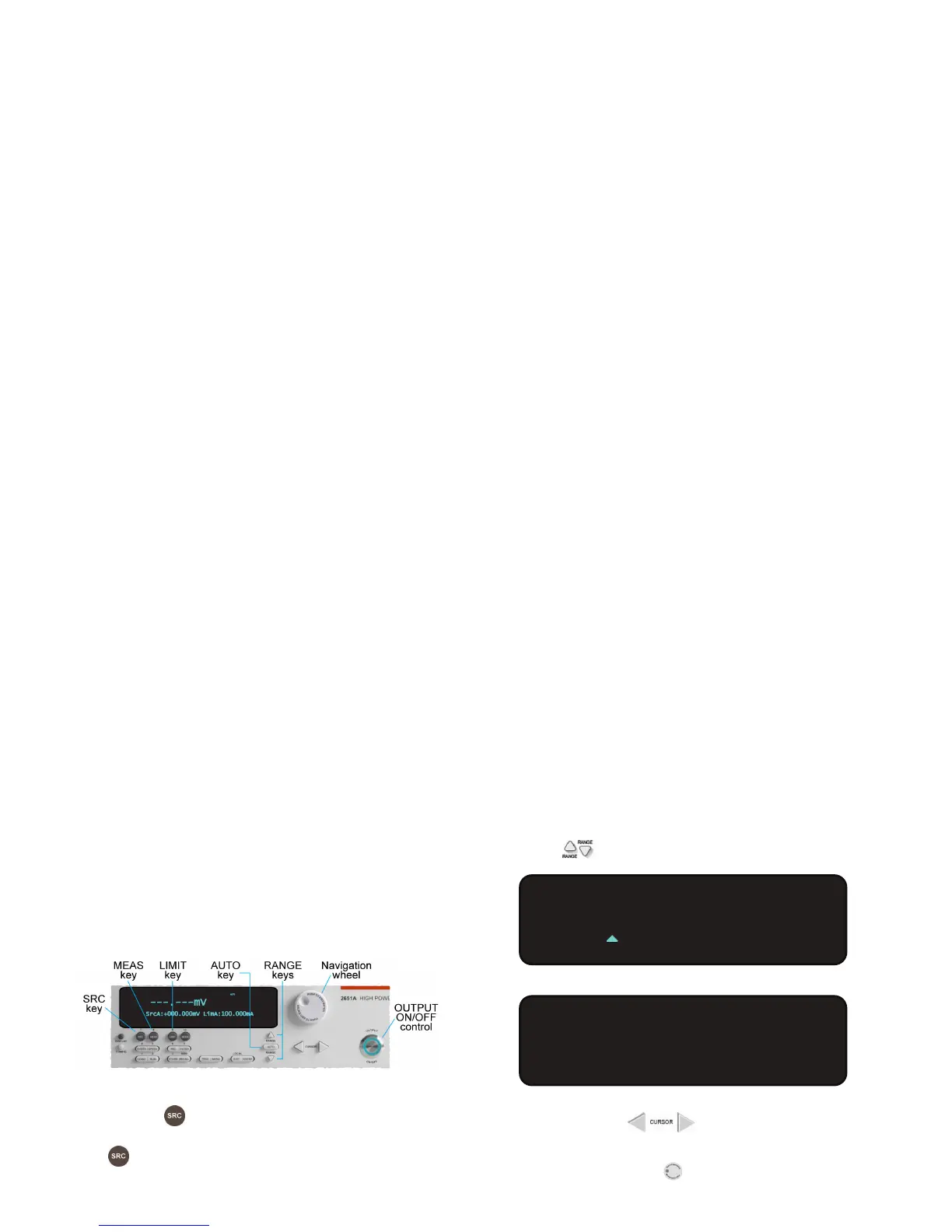

The following test verifies basic operation of the Model 2651A. In
this test, you will use the front-panel controls shown below to source
a voltage and measure the voltage output.
You do not need to connect a device-under-test (DUT) for this test.
Step 1: Set source function, range, and level
1. Press the SRC key. You will see a blinking character in the
SrcA value field. Confirm that mV is displayed; if not, press the
SRC
key again.
2. While that character is still blinking, press the up or down
RANGE
keys until 20 V is displayed.
---.--- V
---.--- V
SrcA: 20 V LimA:100.000mA
SrcA: 20 V LimA:100.000mA
AUTO
AUTO
The main display screen reappears:
--.---- V
--.---- V
SrcA:+00.0000 V LimA:100.000mA
SrcA:+00.0000 V LimA:100.000mA
AUTO
AUTO
3. Press the CURSOR
keys to move the cursor to the
10s digit.
4. Press the navigation wheel
to enter EDIT mode. The EDIT
indicator appears in the upper left corner of the display.
