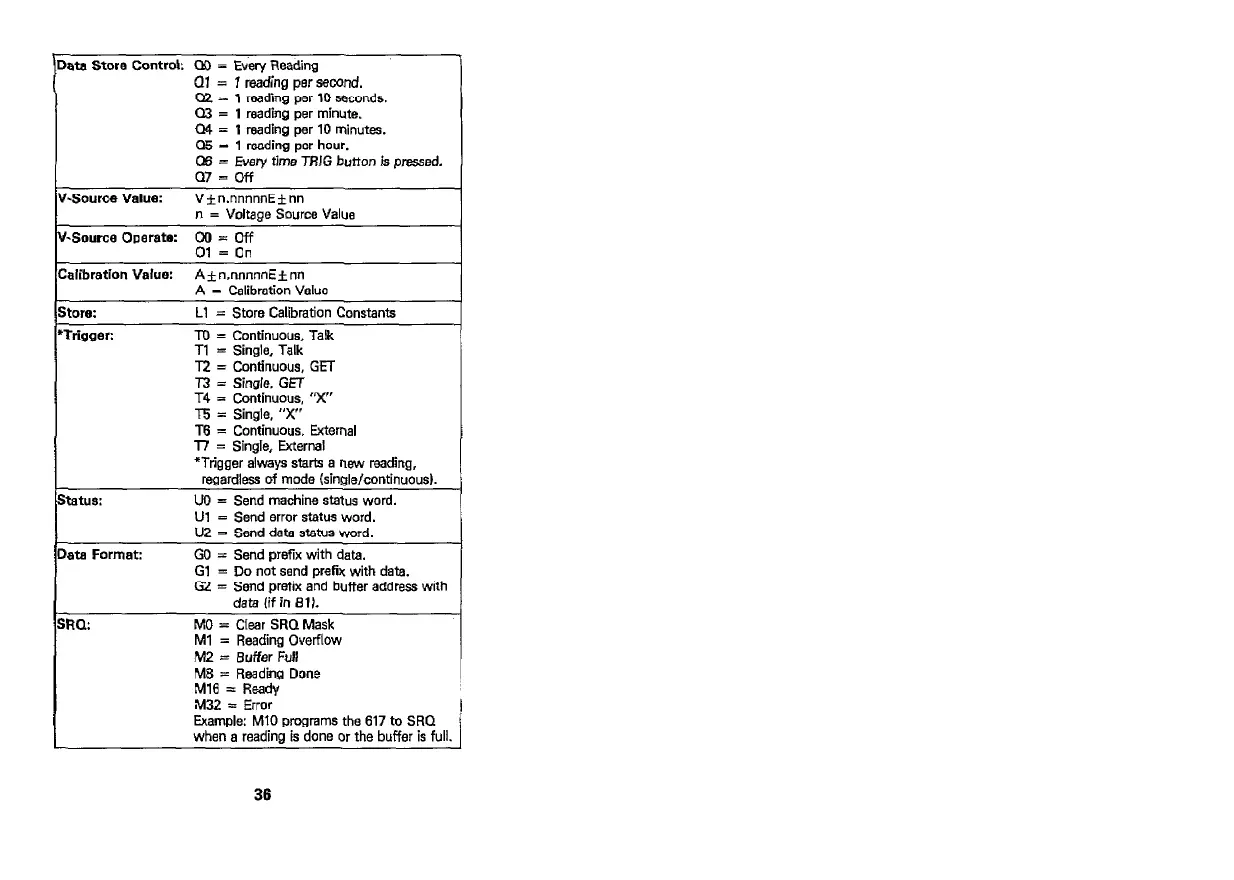

Data Store
Control:
=
Every
Reading
Ql = 7 reading per second.
M = 1 reading per 10 seconds.
Q3 = 1 reading per minute.
Q4 = 1 reading per 10 minutes.
Cl5 = 1 reading per hour.
06 = Every time Tl?lG button is pressed.
Q7=Off
‘-source Value: Vfn.nnnnnE?cnn
n = Voltage Source Value
‘-Source Operats: CXJ = Dff
01 = On
lalrbration VaIue: A~n.nnnonErtnn
A = Calibration Value
‘tore:
Rigger:
tatus:
Ll = Store Calibration Constants
TO = Continuous, Talk
Tl = Single, Talk
T2 = Continuous, GET
T3 = Single, GET
T4 = Continuous, “X”
T!! = Single, “x”
T6 = Continuous, External
l7 = Single, External
“Trigger always starts a new reading,
regardless of mode (singlelcontinuousl.
UO = Send machine status word.
Ul = Send error status word.
U2 = Send data status word.
‘ata Format: GO = Send prefix with data.
Gl = Do not send prefix with date.
G2 = Send prefix and buffer address with
data (if in 81).
R(1:
MO = Clear SRQ Mask
Ml = Reading Overflow
M2 = Buffer Full
M8 = Reed’& Done
Ml6 = Ready
M32 = Error
Example: Ml0 programs the 617 to SRQ
when a reading is done or the buffer is full.
36
