23
SEE NOTES
LINK
HD
C
NO
RELAY 1
R
REMOTE
INPUT
LOW VOLTAGE
NO
C
RELAY 2
LV
SUPPLY
MAINS
SUPPLY
A
N
L1
L2
L3
PUMP 1
PUMP 2
COIL
COIL
A1
A2
A1
A2
N
CONTACTOR No 2
CONTACTOR No 1
WARNING
Contactor coil rating must
not exceed 240VAC

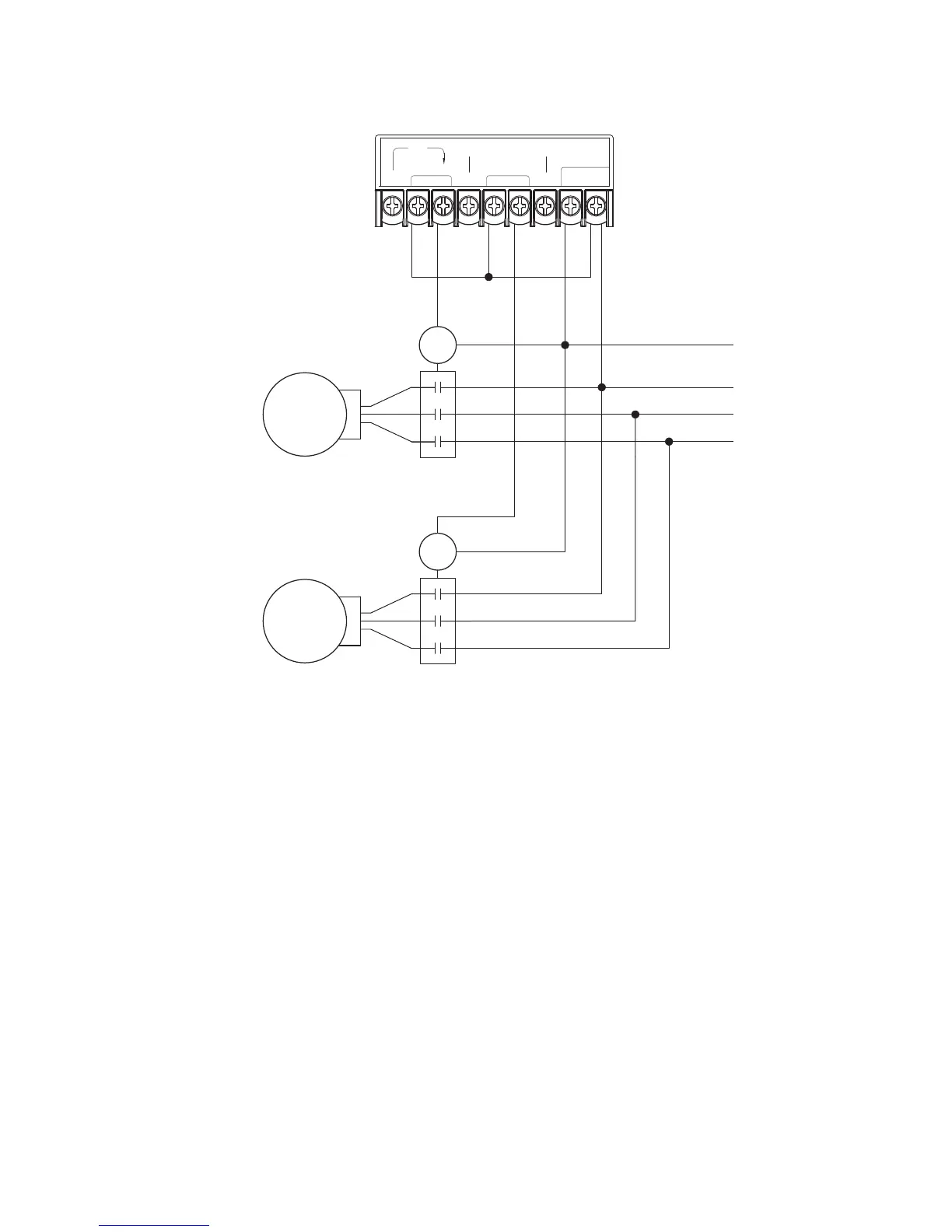

DUAL 3 PHASE PUMP CONTROL
