8

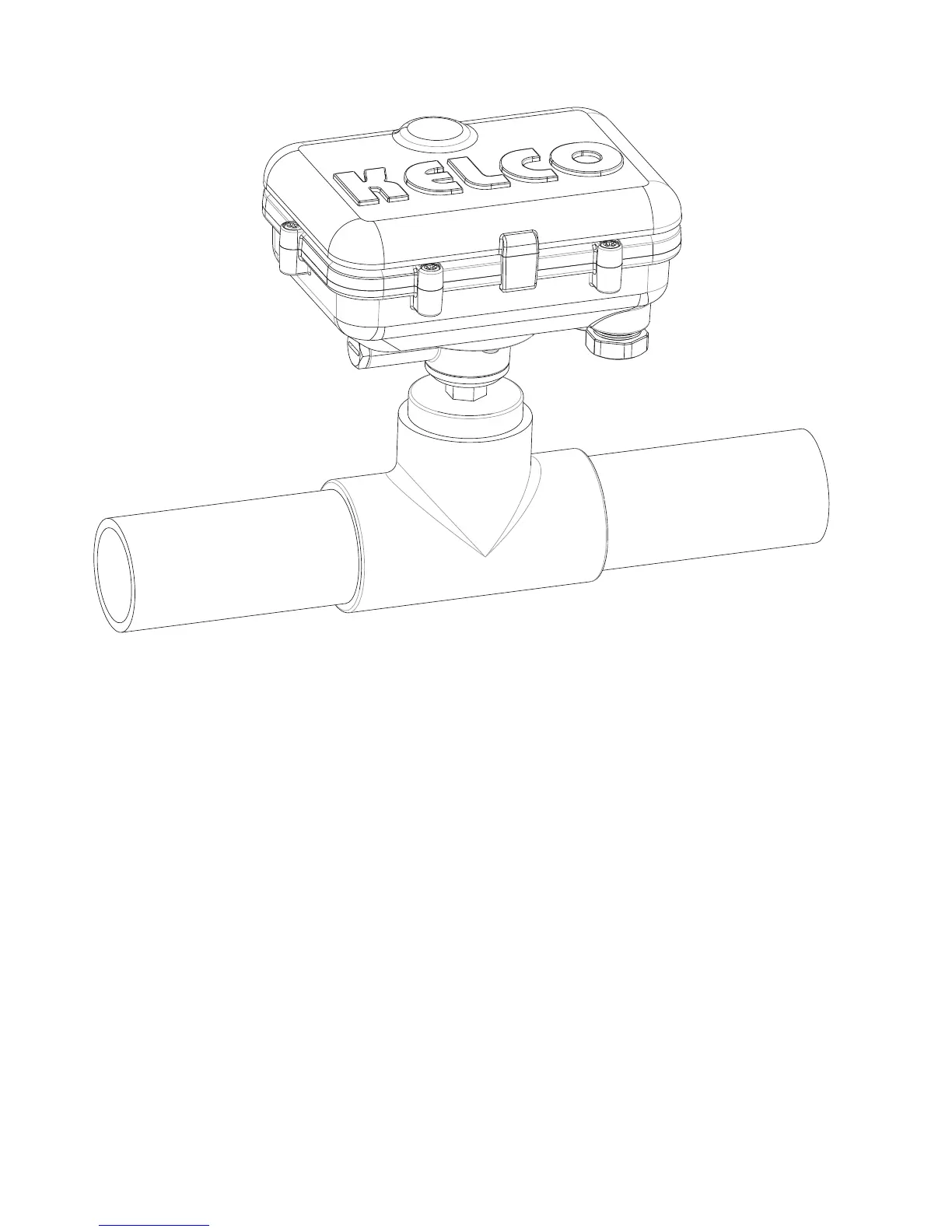

E30 MOUNTED DIRECTLY ON A PIPE
ATTACHING THE ELECTRICAL HOUSING
Once the process connector has been installed, fi t the electrical housing
onto the spigot on top of the process connector. Take care that the sealing
O-ring on the top stem of the assembly is in location and in good order.
There is a fl at keying face on the cylindrical body of the process assembly
that keys the electrical housing onto the process assembly and aligns it
correctly. To secure the electrical housing onto the process adaptor an
Allen head cap screw is supplied.
With the electrical housing located on the spigot and in position, press
down with the fl at of your hand on the top face of the electrical enclosure.
While pressing down, screw the 4mm Allen screw fully through the housing
using the 3mm Allen Key (supplied). Tighten the screw and then release
your hand from the top of the housing.
