Keller minimal windows

4+ 03

On-site installation | 997-000120 | 07-2021

3. Outer frame assembly

3.2 Outer frame assembly

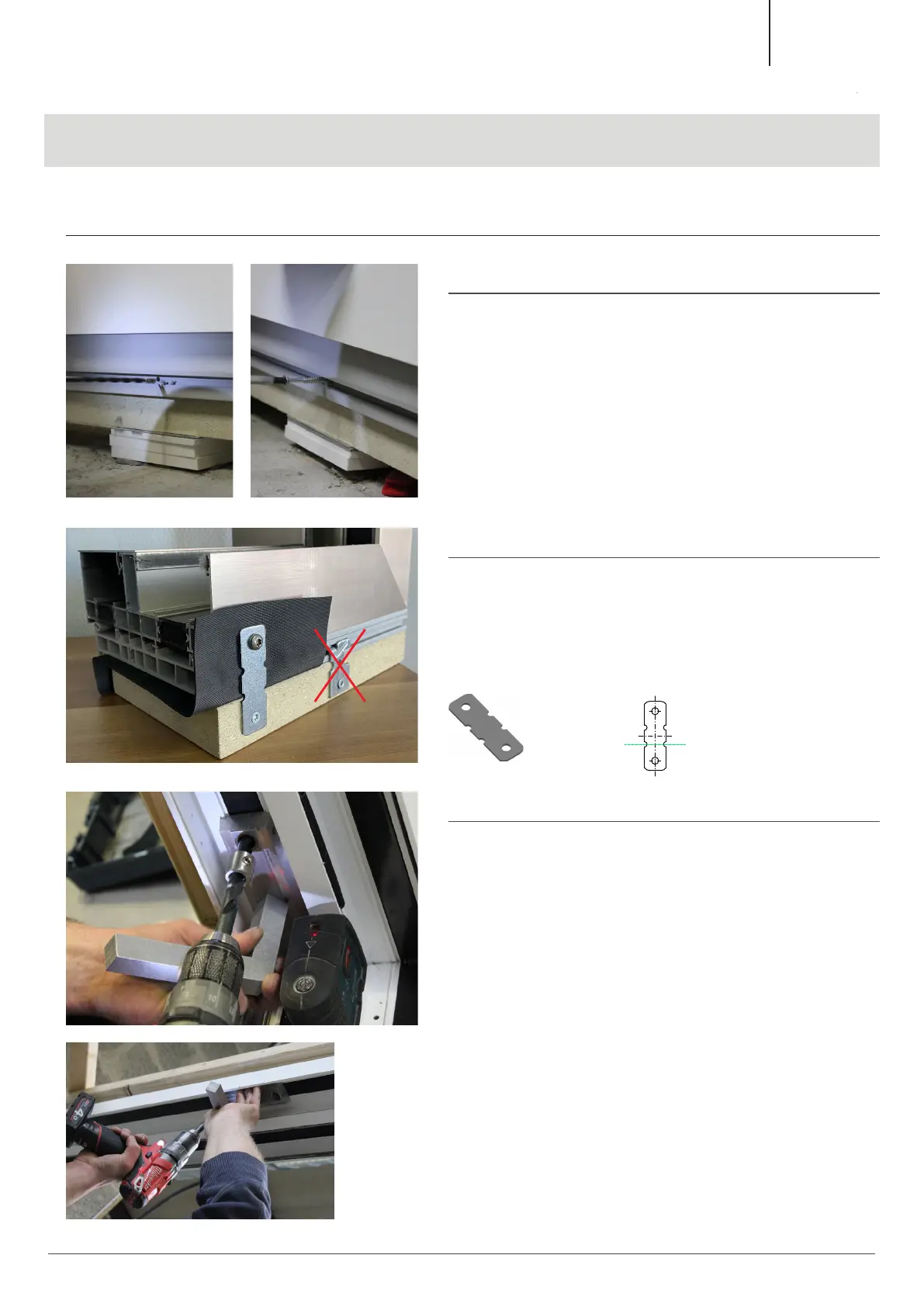

3.2.11

Predrill and screw drainage proﬁle from outside.

3.2.12

Connect drainage proﬁle with Keller minimal windows

basestone on the inside using ﬁxing lug

(25-11-120). Shimming below drainage base is not

allowed after this.

← EPDM

Bend reference line

3.2.13

Predrill holes for ﬁxing bushings (25-15-010) in upper

and lateral outer frames using the corresponding drilling

template (25-15-020).
