Page 5
controller rated equal or higher than 36V . 8V to 30V for controller rated equal 24V.
•
Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).
•
Analog Brake and Throttle Input: 0-5 Volts. P roduc ing 0-5V signal with 3- wire pot .
•
Reverse Alarm, Main Contactor Coil Driver, Meter.
• Full Power Operating Temperature Range: 0
ﹾ Ｃ
to 50
ﹾ Ｃ
(controller case temperature).
• Operating Temperature Range:-30 ﹾ Ｃ to 90 ﹾ Ｃ ,100 ﹾ Ｃ shutdown(controller case temperature).
• Motor Current Limit, 1 minute: 100 -5 00A, depending on the model.
• Motor Current Limit, continuous: 50A -250 A, depending on the model.
• Max Battery Current : Configurable .
2.4
2.4
2.4
2.4 Na
Na
Na
Na m
m
m
m ing
ing
ing
ing Regulation
Regulation
Regulation
Regulation s
s
s
s

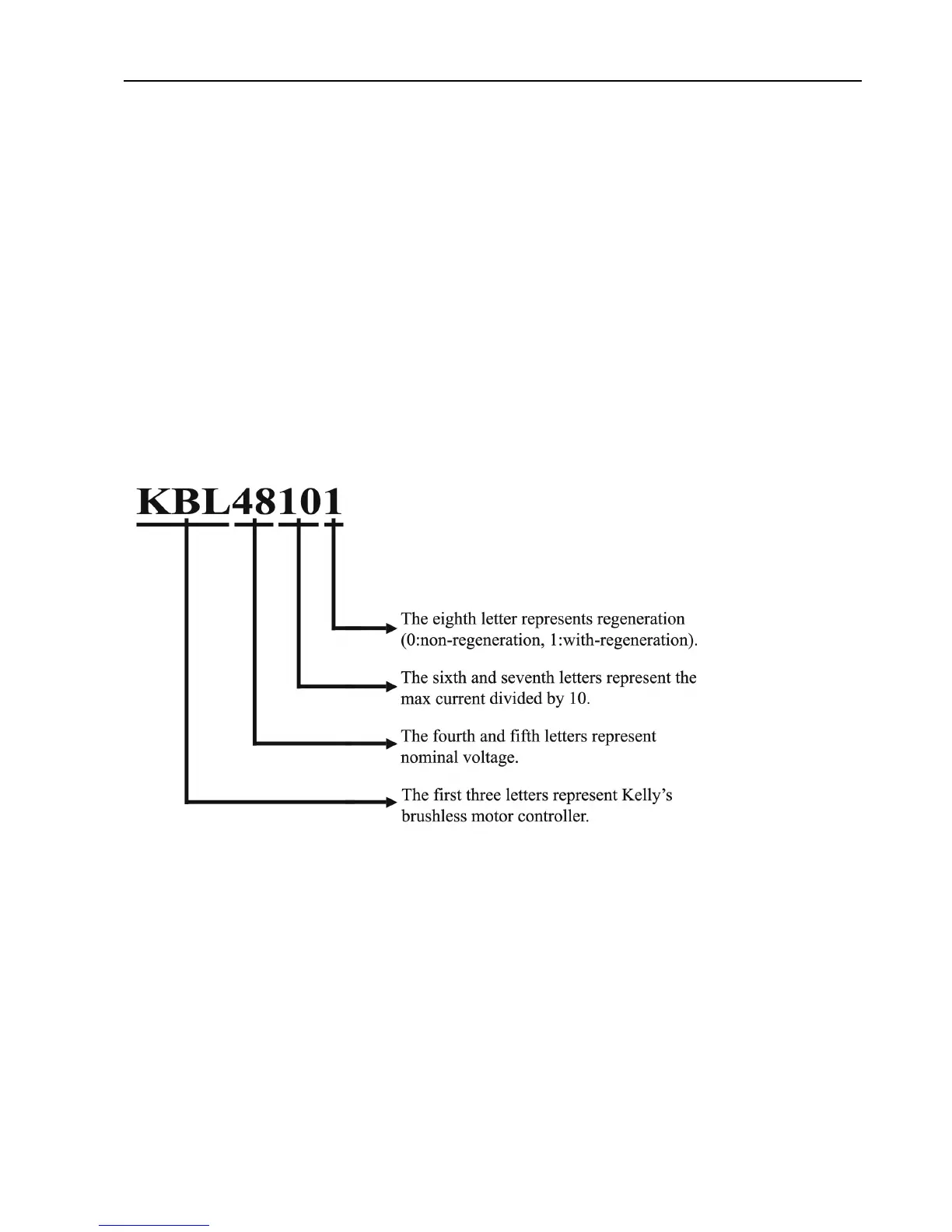

The naming regulations of Kelly BLDC motor controller s :

Kelly KBL24101 Specifications

General

Brand	Kelly
Model	KBL24101
Category	Controller
Language	English
