Kelly KLS Series User Manual

Kelly KLS-M/N Brushless Motor Controller User’s Manual V 2.5
12

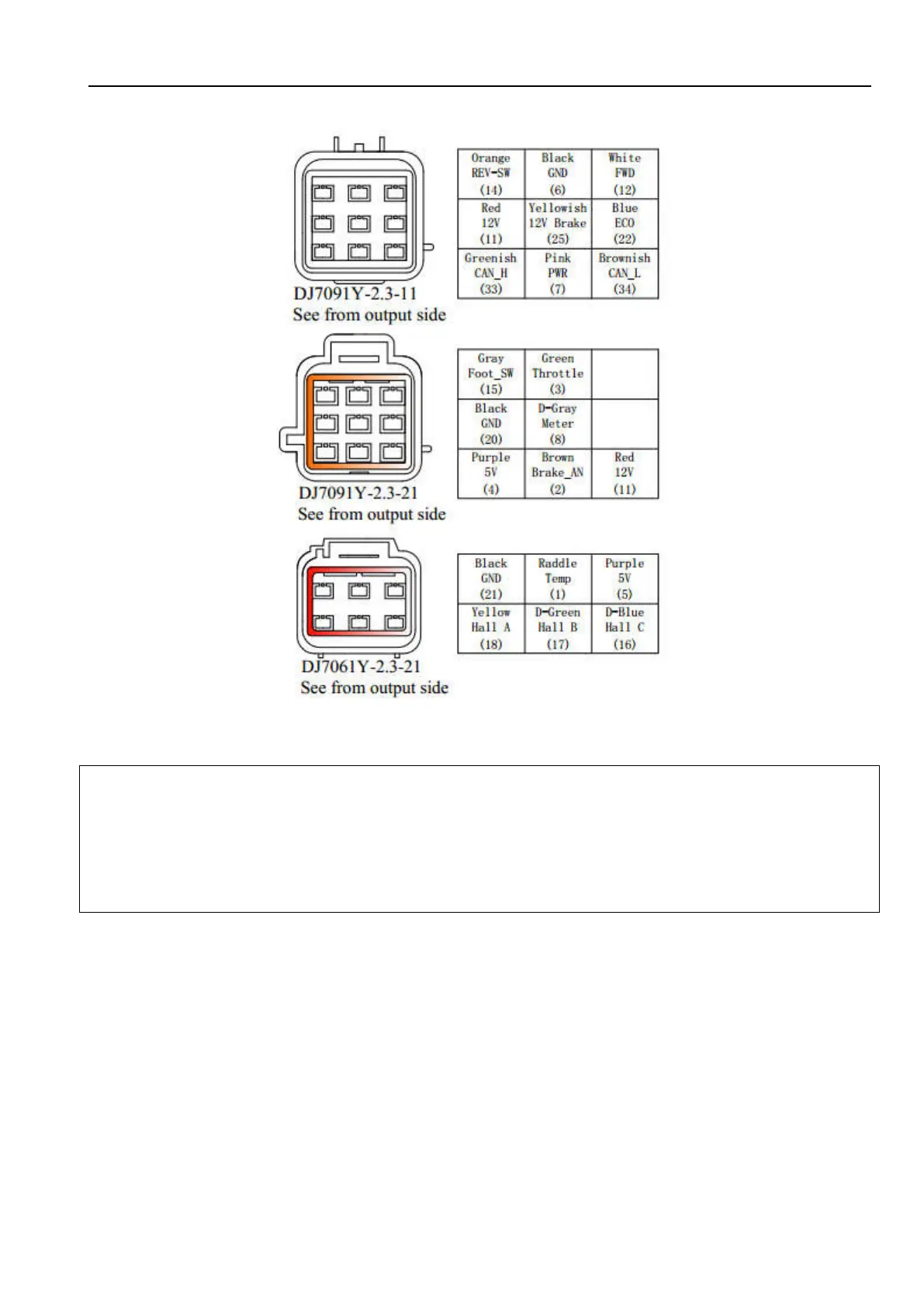

Figure 5:
waterproof connector
1，The switch signal is valid to 12V
2，12V only can be used for LED or switch signals.
3，Boost and brake analog regen use the same port on pin2.
4, CAN bus is not included in KLS-M controller by default.
When boost is disabled in user program，pin2 is used as brake analog regen mode.When boost
is enable，pin2 is used for boost function.You may not use two functions at the same time.
DJ7091Y-2.3-11 Pin Definition
(14) REV_SW: Reverse switch input. Orange
(6) RTN: Signal return or power supply return. Black

Kelly KLS Series Specifications

General

Motor Type	BLDC, PMSM
Dimensions	Varies by model
Weight	Varies by model
Voltage Range	24V-72V
Storage Temperature Range	-40°C to 85°C
Communication	CAN
Protection Features	Over-voltage, Under-voltage, Over-current, Over-temperature, Short-circuit
Operating Frequency	16kHz
