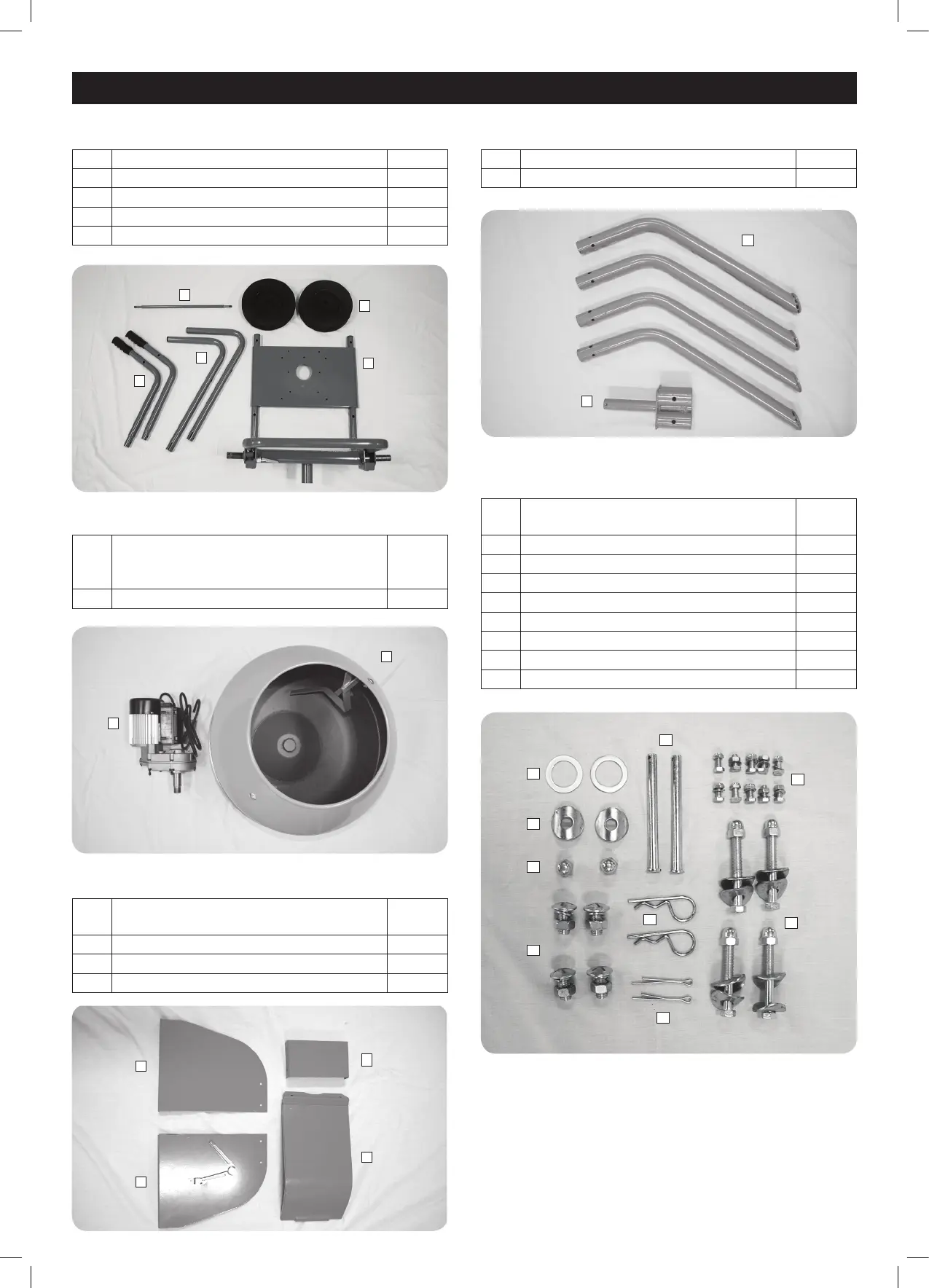

PRODUCT CONTENTS
A
B
C
D
E
F
G
H
K
I
J
M
L
N
O
P
Q
R
S
T
U
V
Stand Assembly Contents
L Leg Shaft 1 unit
M Leg 4 units
Hardware Contents
(All bolts include a washer and lock nut)
N M10X80 Hex Head Bolts
(includes secondary curved washer)
4 units
O M6x16 Hex Head Bolt 10 units
P R Clip 2 units
Q Stand Pin 2 units
R Split Pin 2 units
S Axle Washer 2 units
T Curved Washer 2 units
U 16mm Capped Nut 2 units
V M12X30 Coach Bolt (attached to bowl) 4 units
Frame Assembly Contents
A Main Frame 1 unit
B Leg Section 2 unit
C Handle Section 2 units
D Handle Cross Bar 1 unit
E 10” Solid Wheel 2 units
Motor & Bowl Assembly Contents
F 1/2 HP Motor
(includes a at washer, spring washer and
nut on all 4 xing points)
1 unit
G Bowl 1 unit
Motor Cover Assembly Contents
H Left Cover with Hinge
(includes an M4x10 Hex Head Bolt & Nut)
1 unit
I Right Cover 1 unit
J Back Cover 1 unit
K Top Cover 1 unit
