Operation
Version: ECO_M_ENG_220303_E001

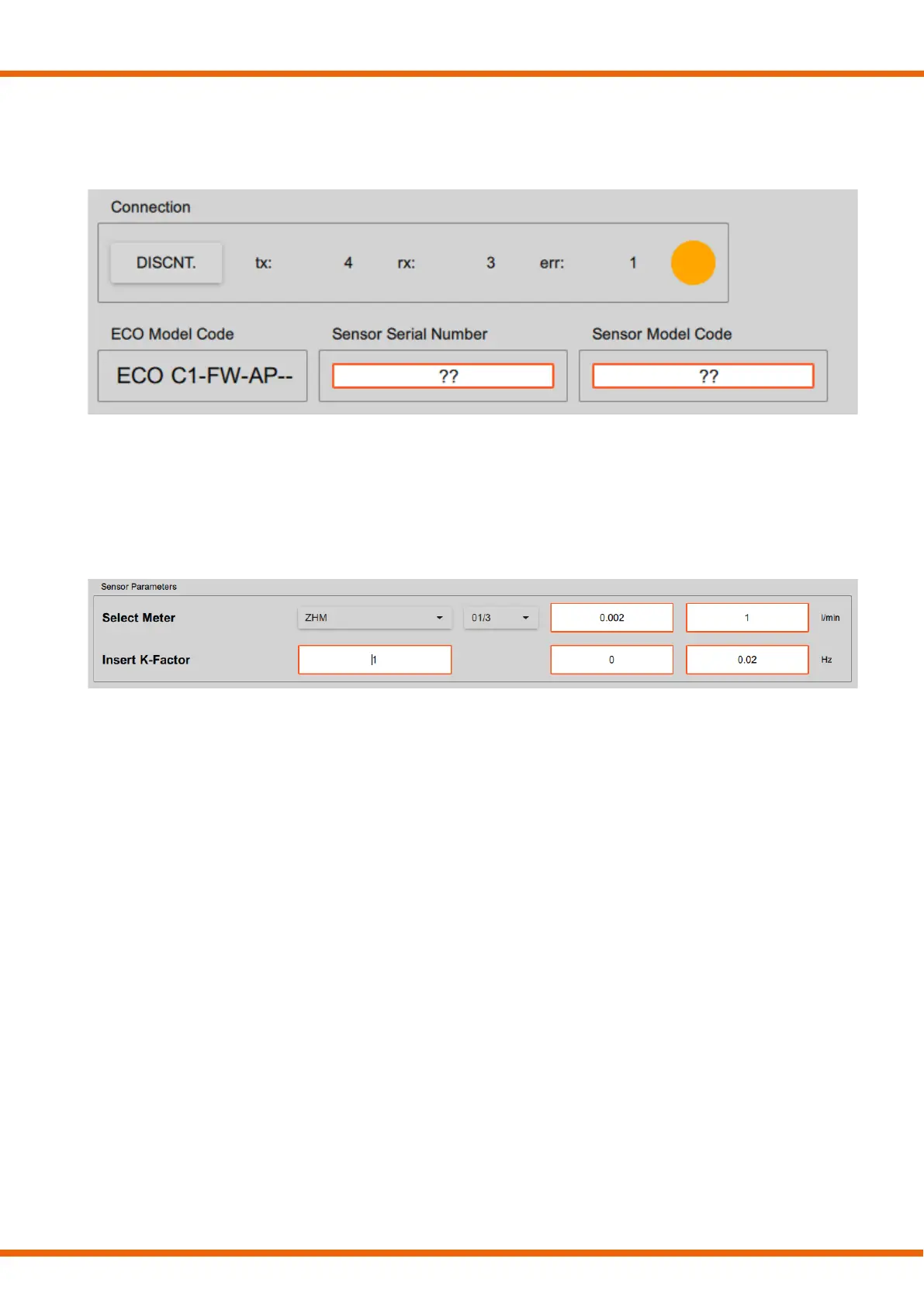

After pressing the Connect button you should see the following picture
Fig 7: directly after connection establishment
Model code is displayed, if the ECO was purchased together with a sensor, rudimentary sensor information is
also available (here only ECO without sensor - marked by "??").
All input fields are outlined in orange and can be changed. "Sensor Serial Number" and "Sensor Model Code"
should be taken from the calibration protocol or the type plate of the sensor.
Fig 8: Selection of the sensor, or entry of the K-factor
When you select a sensor, the standard measuring range and, via the K-factor, also the measured frequency
are displayed. These fields can be overwritten manually.
