Getting started
Version: ECO_M_ENG_220303_E001
3.2.2. ECO-COM.B.USB

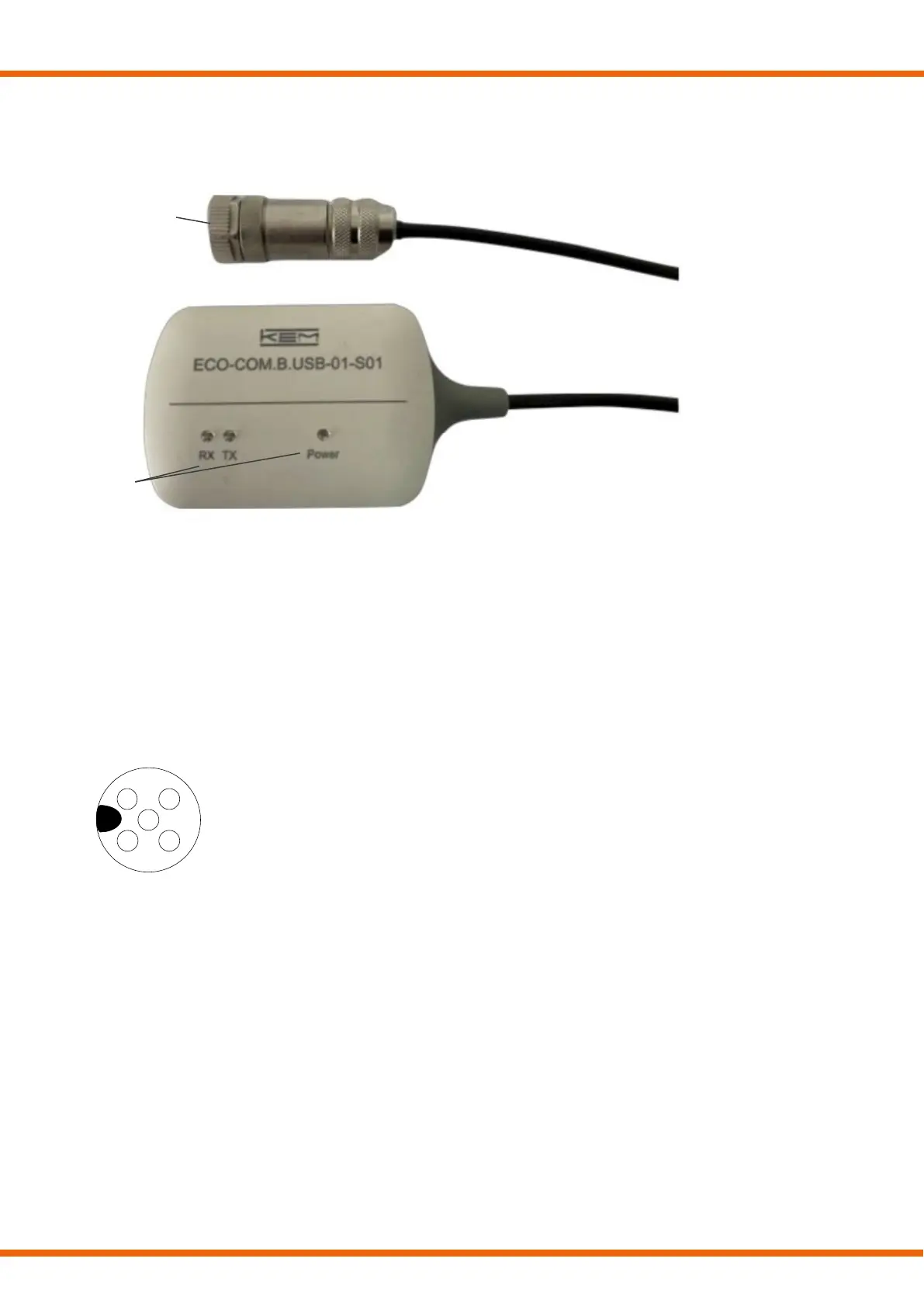

Abb. 2: Bedienelemente von ECO-COM.B.USB
1 = Cable screw connection, M12 socket for connection to ECO
2 = Control LED
3.3. PIN Assignments
3.3.1. ECO
1 V
cc
/ Loop+ (24 V)
2 Digital Output 2 / NAMUR
3 GND / Loop-
4 Digital Output 2 / NAMUR
5 Active Analog Output
1
4
5
2
3
1
2
