1.2 Product introduction
FastMig M 320, 420 and 520 are multi-purpose power sources designed for demanding
professional use. They are suitable for MMA and MIG welding in DC.

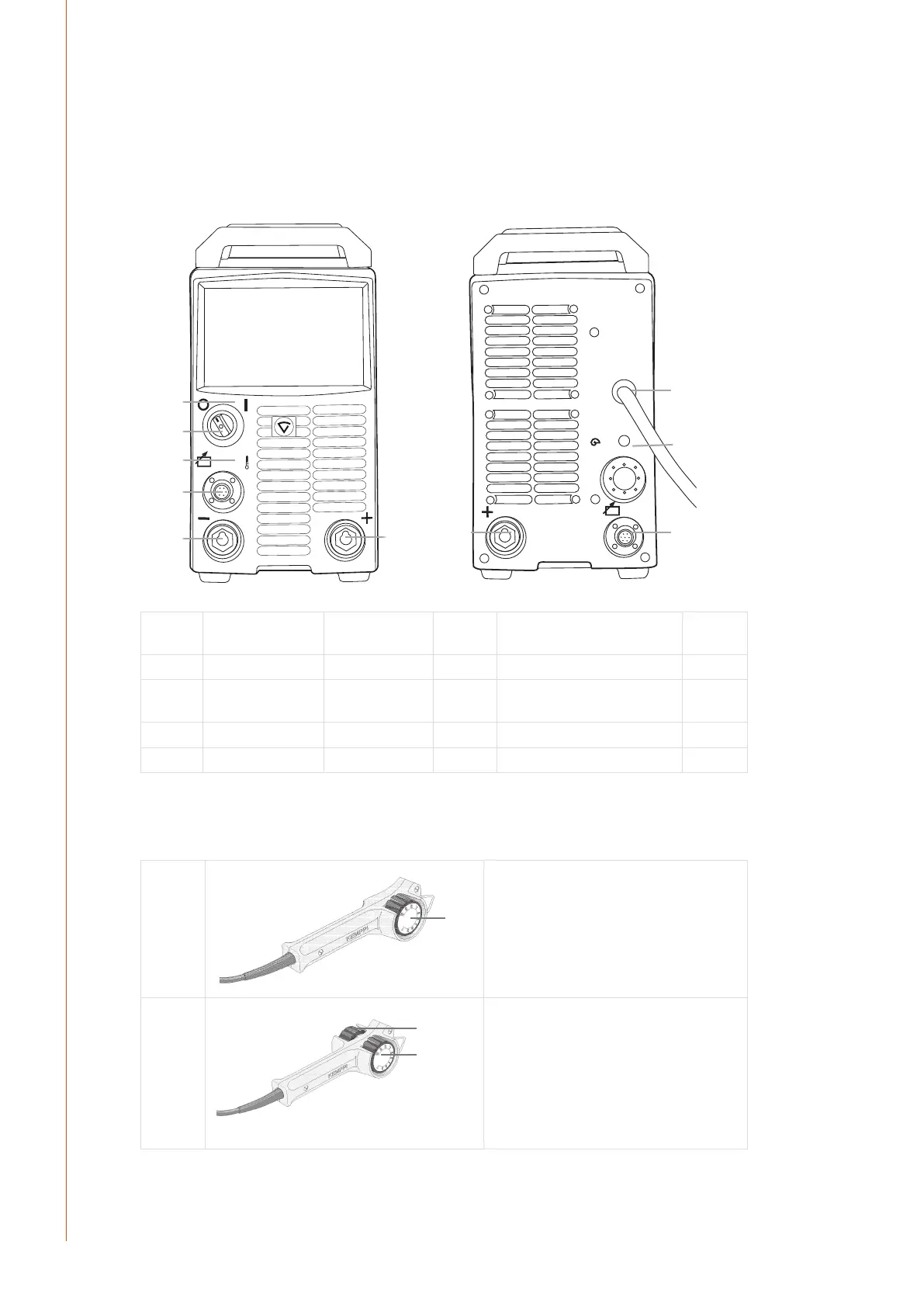

1.2.1 Operation control and connectors
H12
H11
S11
X11
X12
X14
6,3A
X13
X15
01
F11
F11
Fuse for connection for
control table
6,3 A delayed
X12
Earth connection
H11
Signal lamp I/O
X14 , X15
Connection for control cable parallel
H12
Warning lamp for
thermal protection
01
Inlet of mains cable
S11
Main switch I/O
X11, X13
Welding connection parallel
1.3 Accessories
1.3.1 Remote control devices
R10
1.
1. Control of MMA welding current, reference scale
1 – 5.
R20
2.
1.
1. Wire feed adjustment, electrode current
adjustment.
2. Voltage adjustment.
MIG-MAG remote control device with controls for wire feed and voltage, memory scales 1 – 5.
You can use control device also for control of MMA current.
