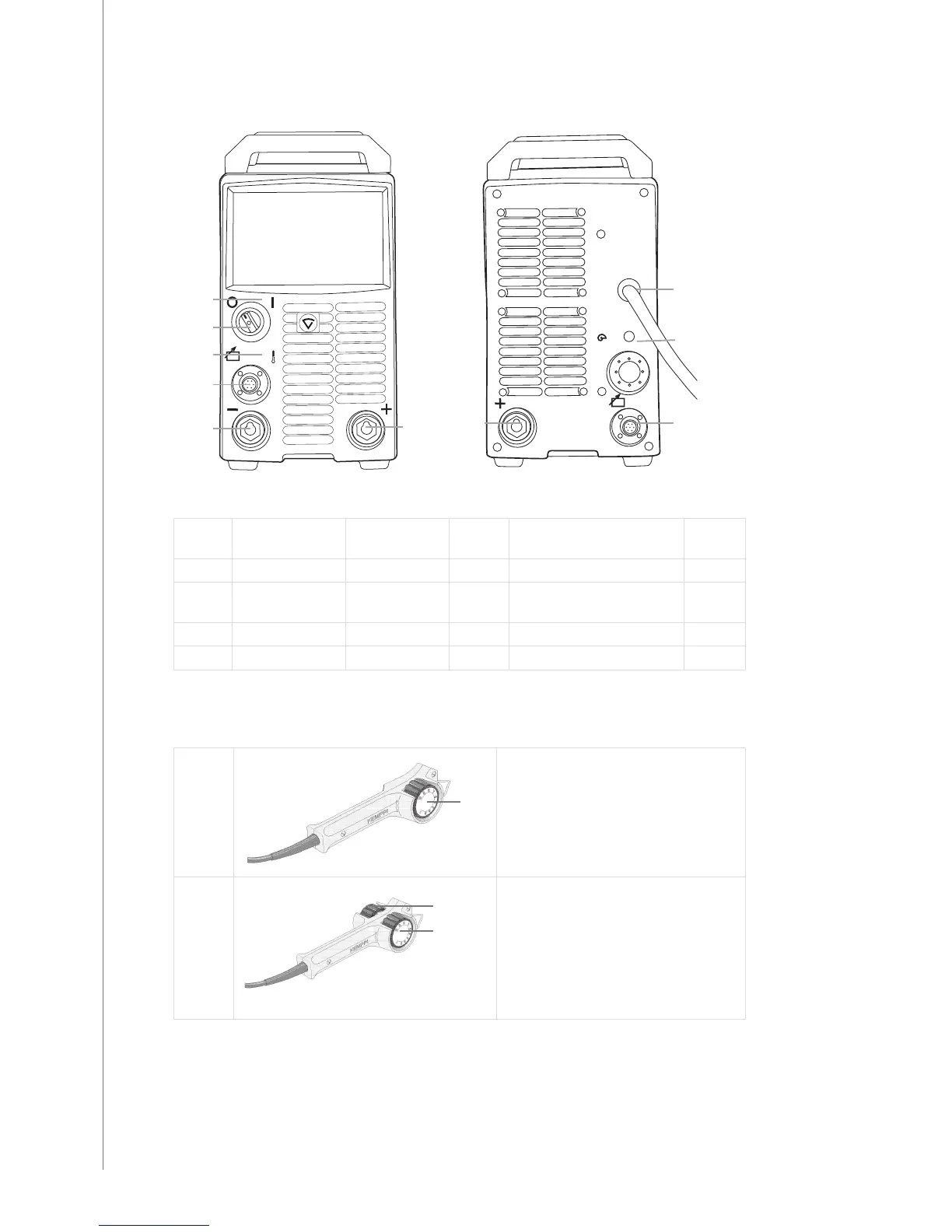

1.2.1 Operation control and connectors
H12
H11
S11
X11
X12
X14
6,3A
X13
X15
01
F11
F11
Fuse for connection for
control table
6,3 A delayed
X12
Earth connection
H11
Signal lamp I/O
X14 , X15
Connection for control cable parallel
H12
Warning lamp for
thermal protection
01
Inlet of mains cable
S11
Main switch I/O
X11, X13
Welding connection parallel
1.3 ACCESSORIES
1.3.1 Remote control devices
R10
1.
1. Control of MMA/TIG welding current, reference
scale 1 – 5.
R20
2.
1.
1. Wire feed adjustment, electrode current
adjustment.
2. Voltage adjustment.
MIG-MAG remote control device with controls for wire feed and voltage, memory scales 1 – 5.
You can use control device also for control of MMA current.
