1.3.2 Cables
NOTE ! Always check before use that the mains cable, earth return cable and its clamp,
interconnection cable and shielding gas hose are in a serviceable condition. Ensure that connectors
are correctly fastened. Loose connectors can impair welding performance and damage connectors.

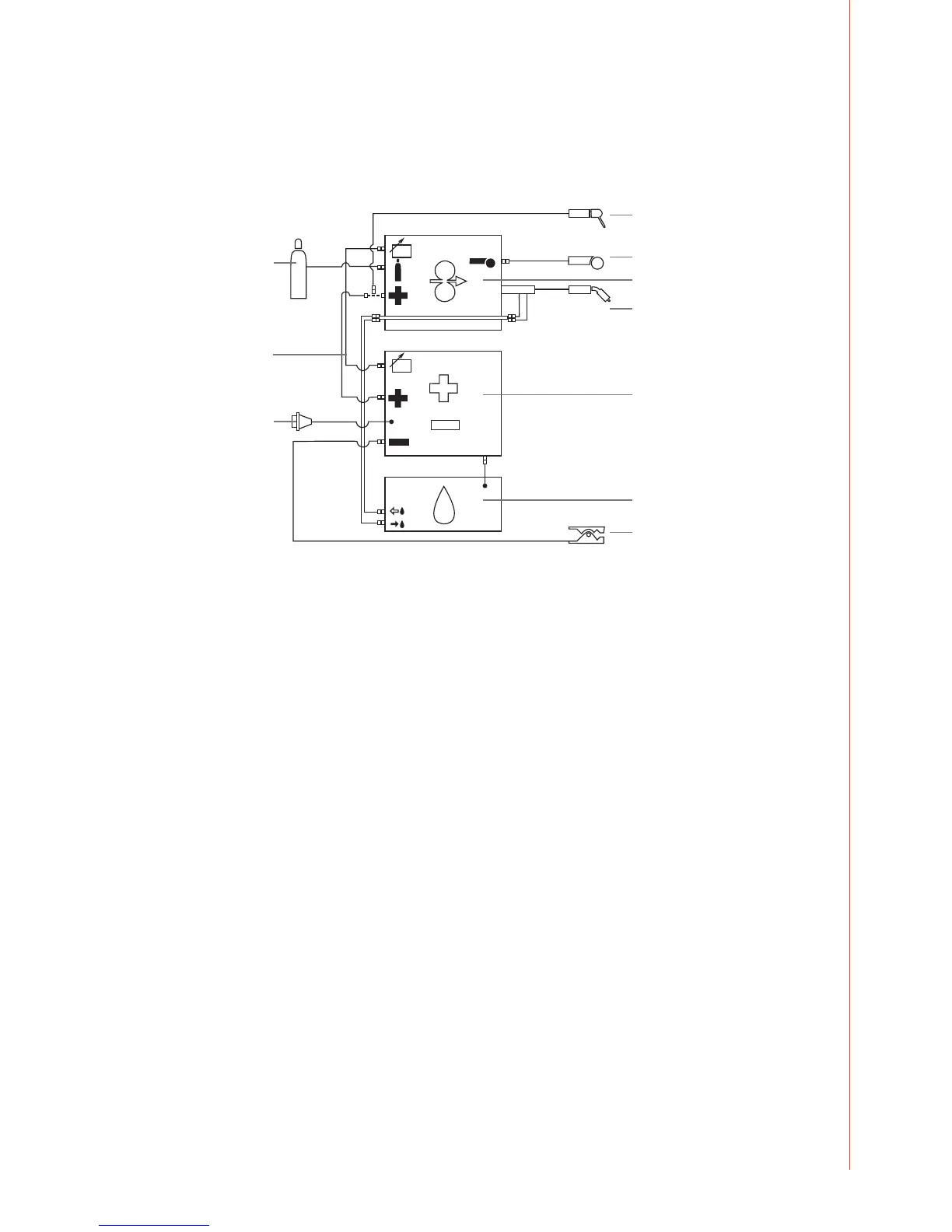

Liquid-cooled system: FastMig power source + MXF + FastCool 10
1.
4
.
8.
2.
3.
9.
5.
6.
7.
10.
1. MXF wire feed unit
2. FastMig power source
3. FastCool water cooler and power connection
4. Gas supply
5. MMA electrode holder
6. Remote control device
7. Liquid cooled welding Gun
8. Power cable
9. Earth return cable and clamp
10. Control cable
