Kemppi Mastercool 30 - Construction Overview

Service manual Mastercool 30 Version 1.0 1.11.2011
4
Kemppi Oy
3.3. Construction

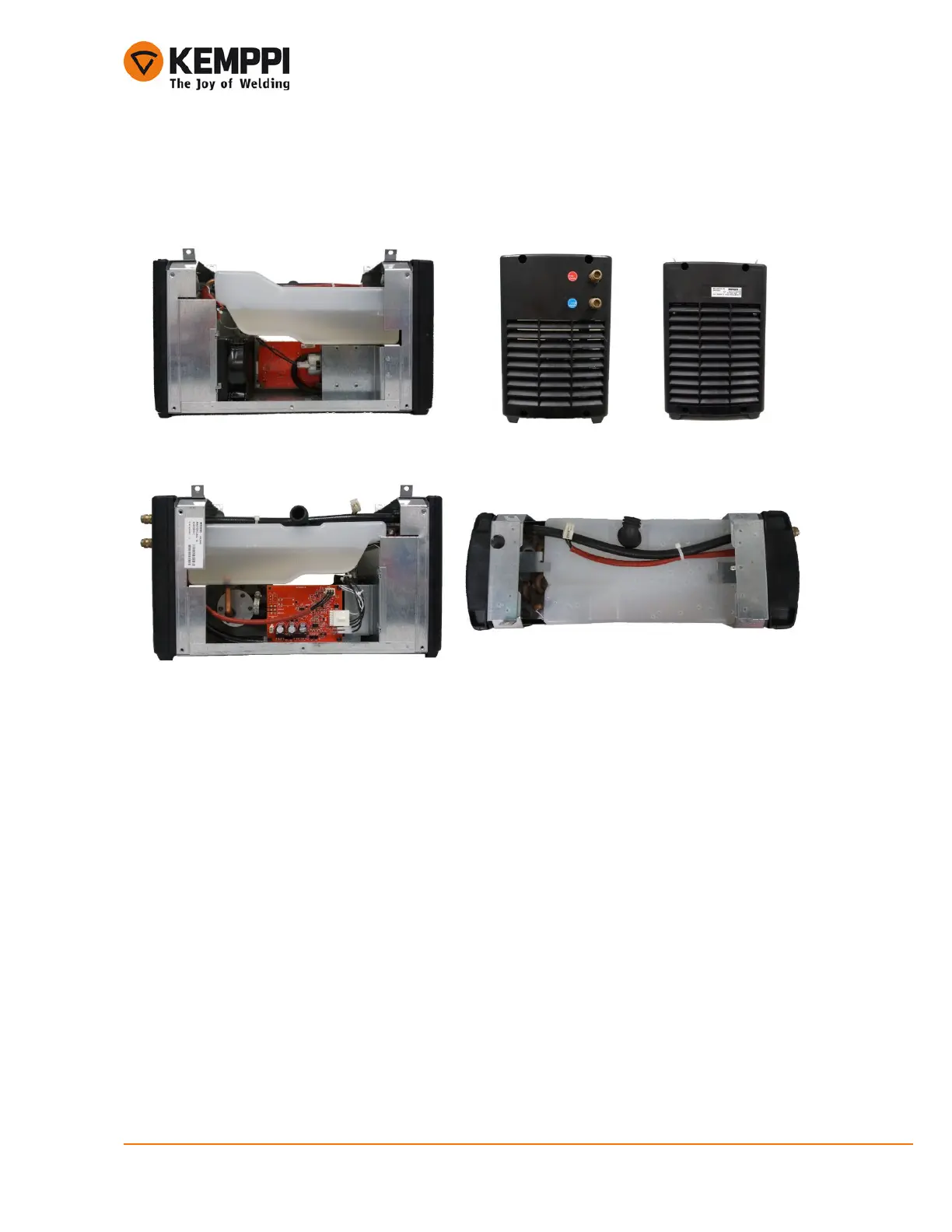

The cooling fan is installed so that the air flows from the left side plate to Z001 card. Air comes out
through the front and the back plate grills.
Left side
Back
Front
Right side
Up
