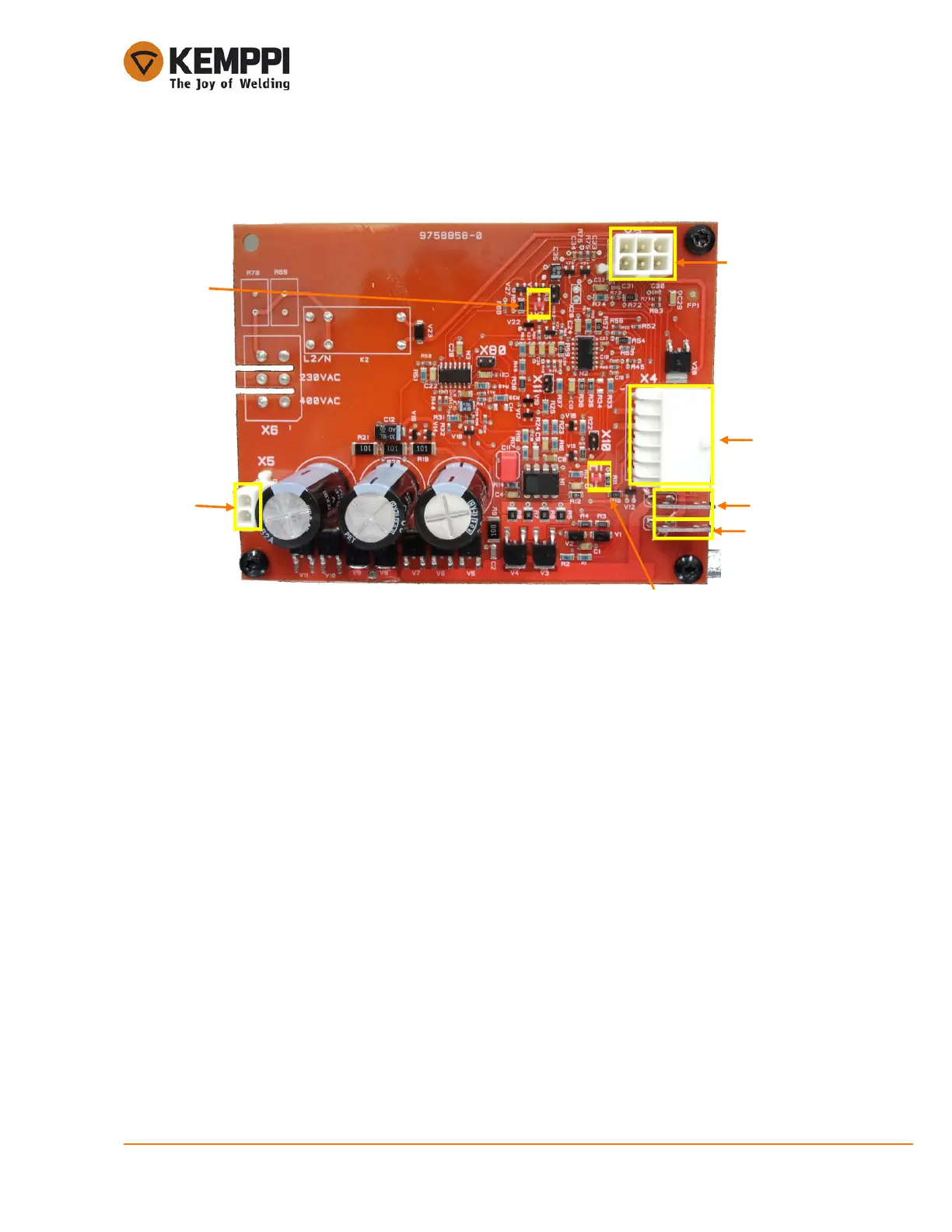

3.3.2. A001 control card structure
1. Connector X5, not in use
2. Connector X7, Positive output for pump motor
3. Connector X8, Negative output for pump motor
4. Connector X4, PTC and cooling fan connector
5. Connector X3, Control connector to power source
6. LED H1
7. LED H2
1.
2.
3.
4.
5.
7.
6.
