KEMPPI WELDFORCE KPS3500 / 0520 – 3
© KEMPPI OY
H12
H11
S11
X12
X11
01
F11
X13
X14
X15
KPS
1. PREFACE
1.1. INTRODUCTION
Congratulations on having purchased this product. Properly installed Kemppi products should
prove to be productive machines requiring maintenance at only regular intervals. This manual is
arranged to give you a good understanding of the equipment and its safe operation. It also contains
maintenance information and technical specifications. Read this manual from front to back before
installing, operating or maintaining the equipment for the first time. For further information on
Kemppi products please contact us or your nearest Kemppi distributor.
The specifications and designs presented in this manual are subject to change without prior
notice.
In this document, for danger to life or injury the following symbol is used:
Read the warning texts carefully and follow the instructions. Please also study the Operation safety
instructions and respect them when installing, operating and servicing the machine.
1.2. PRODUCT INTRODUCTION
Kemppi WeldForce KPS3500 is multi-operator power source designed for demanding professional
use. It is suitable for MMA/MIG welding in DC.

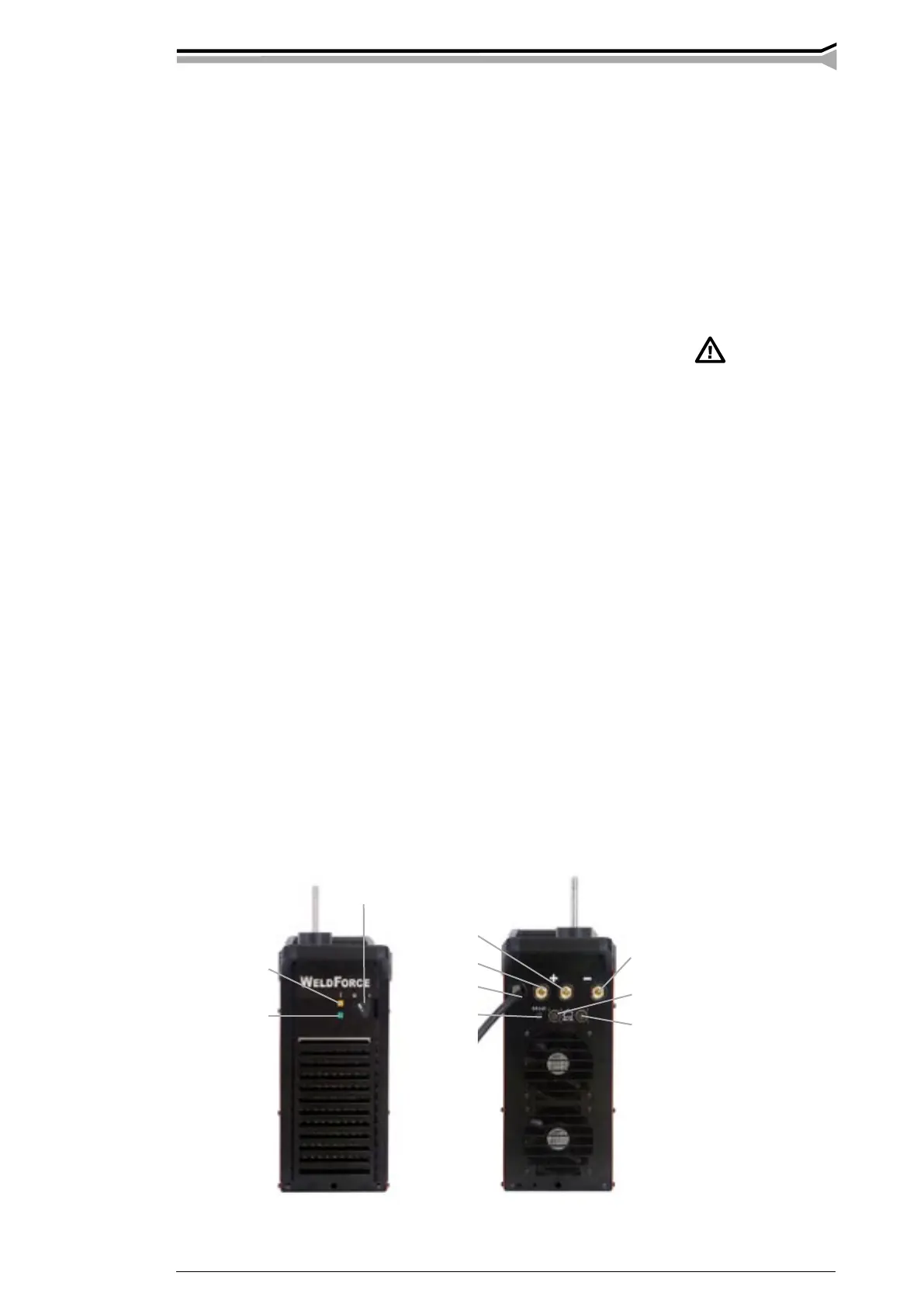

1.2.1. Operation control and connectors
F11 Fuse for connection for control table 6.3 A delayed
H11 Signal lamp I/O
H12 Warning lamp for thermal protection
S11 Main switch I/O
X11, Welding connection parallel
X12
X13 Earth connection
X14, Connection for control cable parallel
X15
01 Inlet of mains cable
