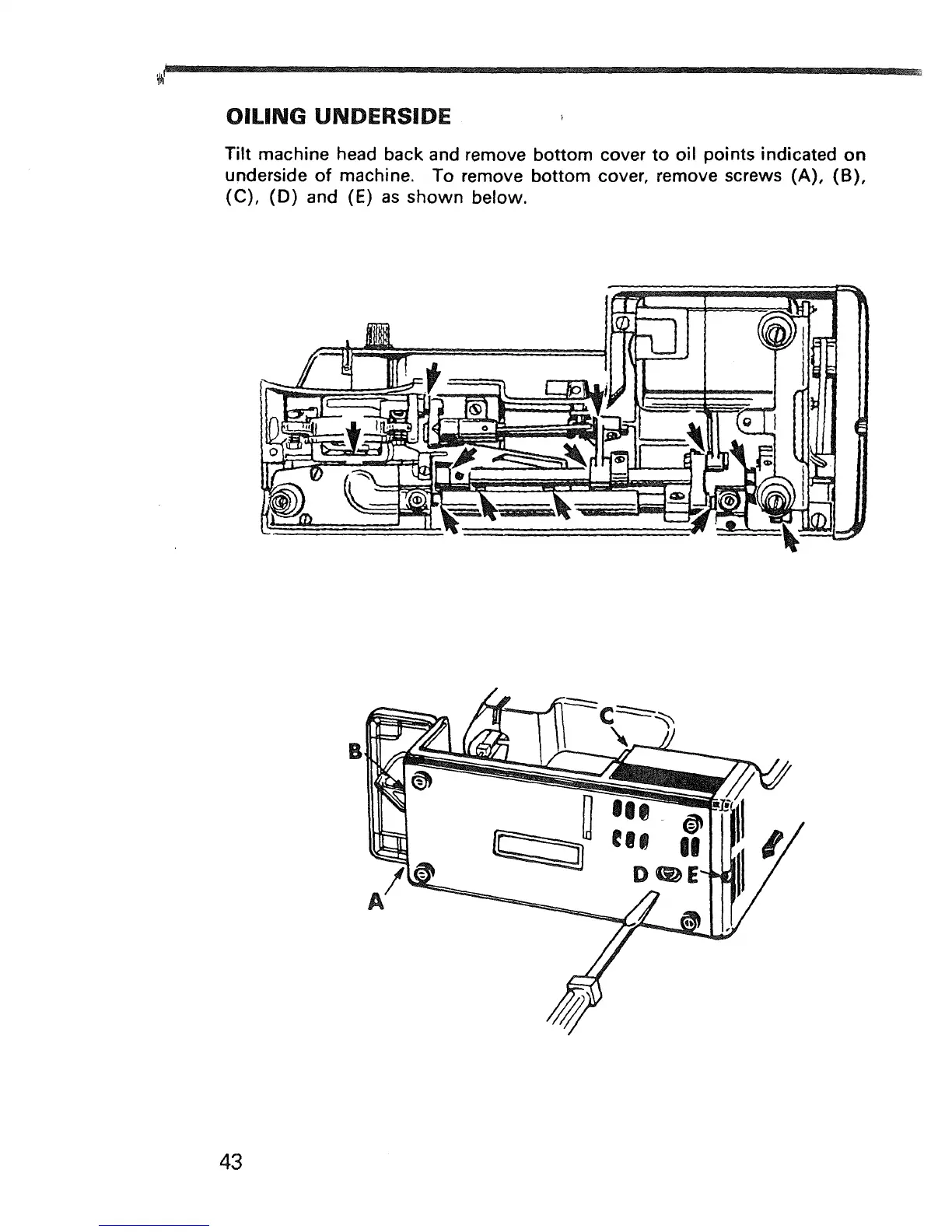

OILING UNDERSIDE
Tilt machine head back and remove bottom cover to oil points indicated on
underside of machine. To remove bottom cover, remove screws (A), (B),
(C), (D) and (E) as shown below.
B
43
