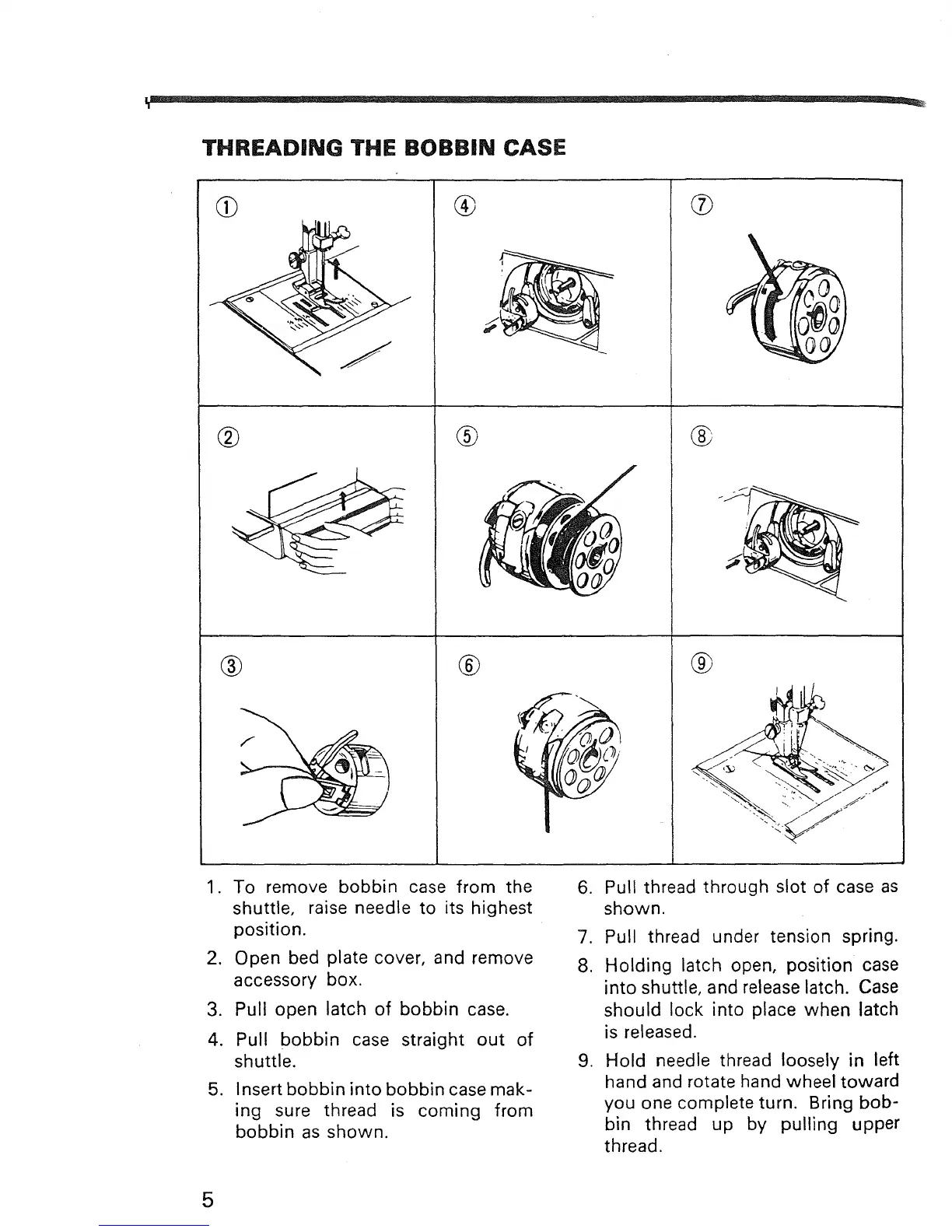

THREADING THE BOBBIN CASE
,j
i_
. k ,.
\
®
I
®
®
®
®
®
1. To remove bobbin case from the
shuttle, raise needle to its highest
position.
2. Open bed plate cover, and remove
accessory box.
,
4.
.
Pull open latch of bobbin case.
Pull bobbin case straight out of
shuttle.
Insert bobbin into bobbin case mak-
ing sure thread is coming from
bobbin as shown.
.
7.
8.
.
Pull thread through slot of case as
shown.
Pull thread under tension spring.
Holding latch open, position case
into shuttle, and release latch. Case
should lock into place when latch
is released.
Hold needle thread loosely in left
hand and rotate hand wheel toward
you one complete turn. Bring bob-
bin thread up by pulling upper
thread.
5
