Alternate parts (Not supplied with washer):
Your installation may require additional parts. To order, please
refer to the phone number or website on the back page of your
“Use and Care Guide.”
If you have: You will need:
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96" (2.4 m)
1" (25 mm) 2" (50 mm) diameter to 1" (25 mm)
diameter standpipe diameter Standpipe Adapter Kit,
Part Number 3363920 and
Connector Kit, Part Number 285835
Overhead sewer Standard 20 gal. (76 L) 39" (990 mm)
tall drain tub or utility sink, sump
pump, and connectors (available from
local plumbing suppliers)
Floor drain Siphon Break Kit,
Part Number 285834
Extension Drain Hose,
Part Number 285863
Connector Kit, Part Number 285835
Drain hose too short Extension Drain Hose,
Part Number 285863
Connector Kit, Part Number 285835
Lint clogged drain Drain protector, Part Number 376031
LOCATION REQUIREMENTS
You will need:
■ A water heater set to deliver 120°F (49°C) water to the washer.
■ A grounded electrical outlet located within 4 ft. (1.2 m) of
where the power cord is attached to the back of the washer.
See “Electrical Requirements.”
■ Hot and cold water faucets located within 3 ft. (900 mm)
of the hot and cold water ll valves, and water pressure of
20–100 psi (138–690 kPa) for best performance.
■ Level oor with maximum slope of 1" (25 mm) under entire
washer. Installing the washer on carpet is not recommended.
■ A sturdy oor to support the washer weight (washer, water,
and load) of 315 lbs (143 kg).
IMPORTANT: Do not operate, install, or store washer where it
will be exposed to water, weather, or at temperatures below
32° F (0° C). Some water can remain in washer and can cause
damage in low temperatures. See your “Use and Care Guide”
for information on winterizing.
Proper installation is your responsibility.
Select proper location for your washer to improve performance
and minimize noise and possible “washer walk.” Install your
washer in a basement, laundry room, closet, or recessed area.
To order, please refer to the phone number or website on the
back page of your “Use and Care Guide.”
■ 8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)
■ 8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)
■ 8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)
■ 8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM
(2 pack)
■ 8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)
■ 8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
■ 8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)

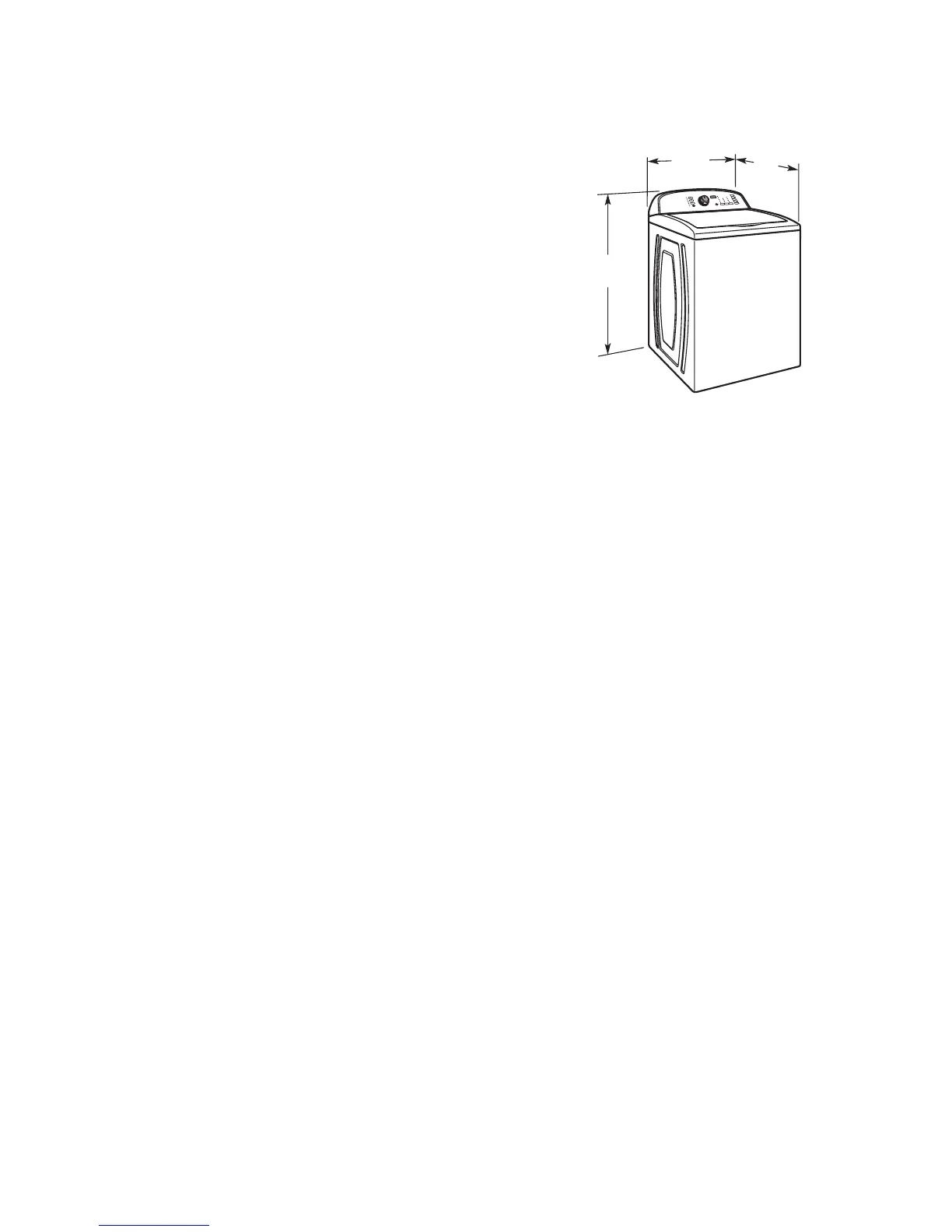

44"
(1118 mm)
27"
(686 mm)
27.5"
(699 mm)
