Kenmore 110.2810 Series Installation Instructions

5

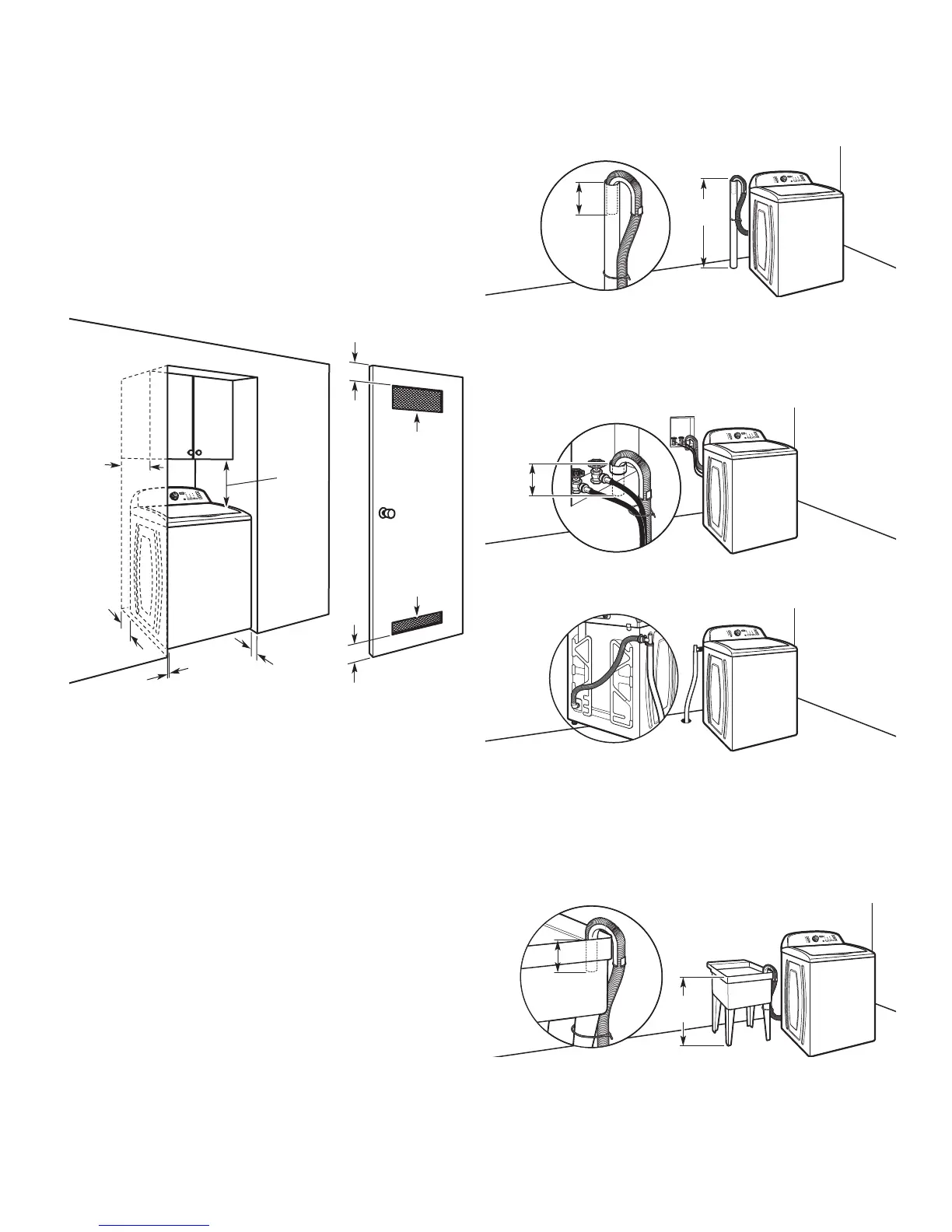

Spacing for recessed area or closet installation
All dimensions show recommended spacing allowed, with tested
spacing of 0" (0 mm) clearance on sides.
■ Additional spacing should be considered for ease of
installation and servicing.
■ Additional clearances might be required for wall, door, and
oor moldings.
■ Additional spacing should be considered on all sides of the
washer to reduce noise transfer.
■ For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
■ Companion appliance spacing should also be considered.
* Required spacing
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe
must be at least 39" (990 mm) high; install no higher than
96" (2.44 m) from bottom of washer. If you must install higher
than 96" (2.44 m), you will need a sump pump system.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 39" (990 mm) above oor; install no higher than
96" (2.44 m) from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of
drain hose should be inside standpipe or below the top of wash
tub. Secure drain hose with cable tie.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. To order, please see toll-free phone
numbers in your “Use and Care Guide.” Minimum siphon break:
28" (710 mm) from bottom of washer. (Additional hoses may be
needed.)
Floor standpipe drain system
39"
(990 mm)
4.5"
(114 mm)
4.5"
(114 mm)
4.5"
(114 mm)
30"
(762 mm)
39"
(990 mm)
See requirements for oor standpipe drain system.
3"
(76 mm)
3"
(76 mm)
24 in.
2
(155 cm
2
)
48 in.
2
(310 cm
2
)
17"
(432 mm)
1"
(25 mm)
1"
(25 mm)
5"
(126 mm)
14" max.
(356 mm)
*
*
*
*
*
*
*
