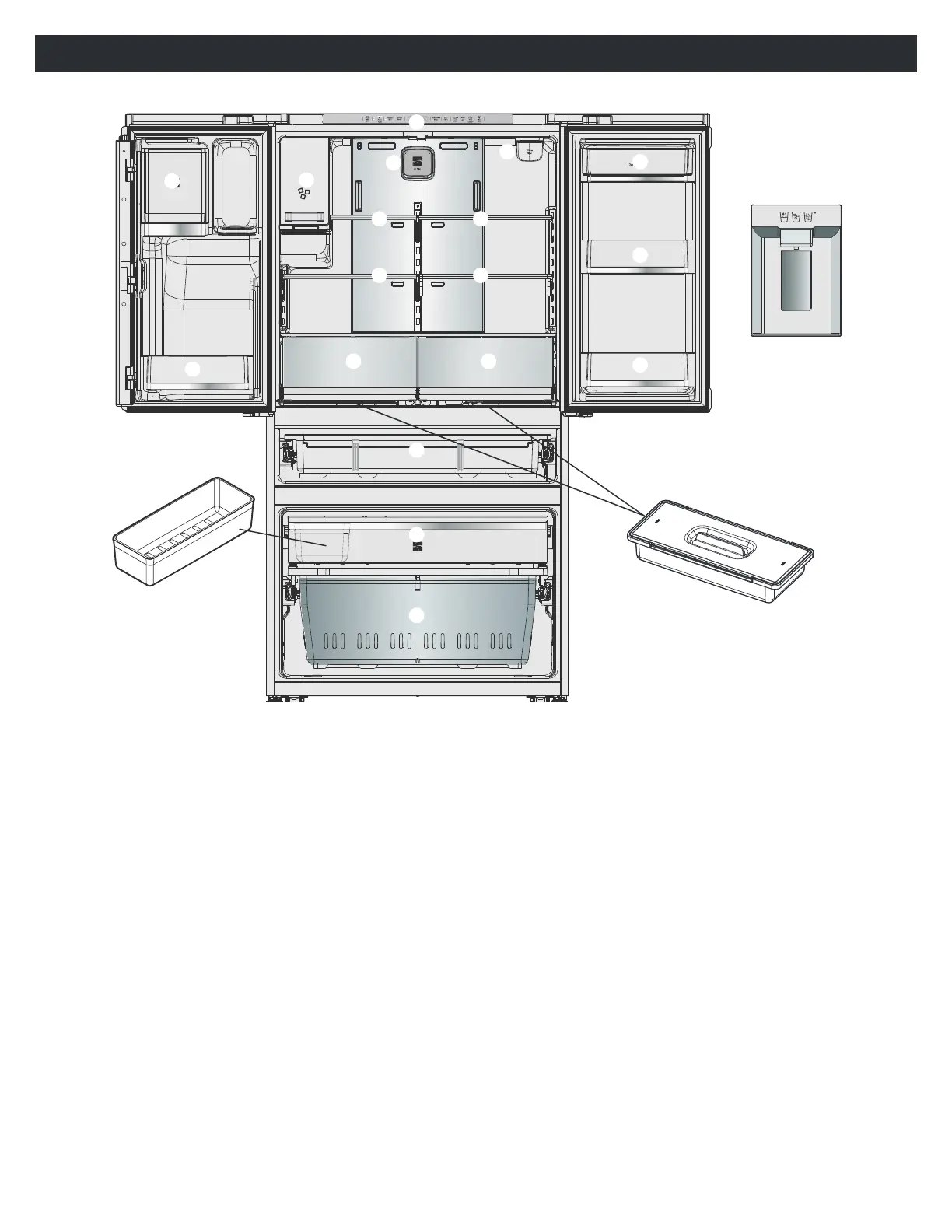

PARTS AND FEATURES
1. Covered Dair y Bi n or Covered Storage Bin
for storing butter and cheese.
2. Gallon door storage bin
for items of medium to large size.
3. Multi storage bin or Covered Storage Bin
for storing butter and cheese.
4. Narrow door storage bin
K=‡‹⁄·«=¤«~‹†=‡fi¥
5. Icemaker/ Ice cube bin
for making and holding ice f or through-the-door
d i spenser.
6. Air filter
7. Water filter
8. Narrow Top Shelf
9. Adjustable glass shelf
10. Slide-in Shelf
11. Humidity controlled crisper bin
for storage of fruits and vegetables
12 . Temperature Control full width pantry drawer
for storage of meat and fresh vegetables
13. Pull out freezer drawer
14. Lower freezer basket for general freezer storage
15 . Fr e e z e r I c e St o r a g e Bi n
16. Control and display panel
17. Ice/ Water Dispenser
18 . Removable Convenience Bin
Slim IceMaker
